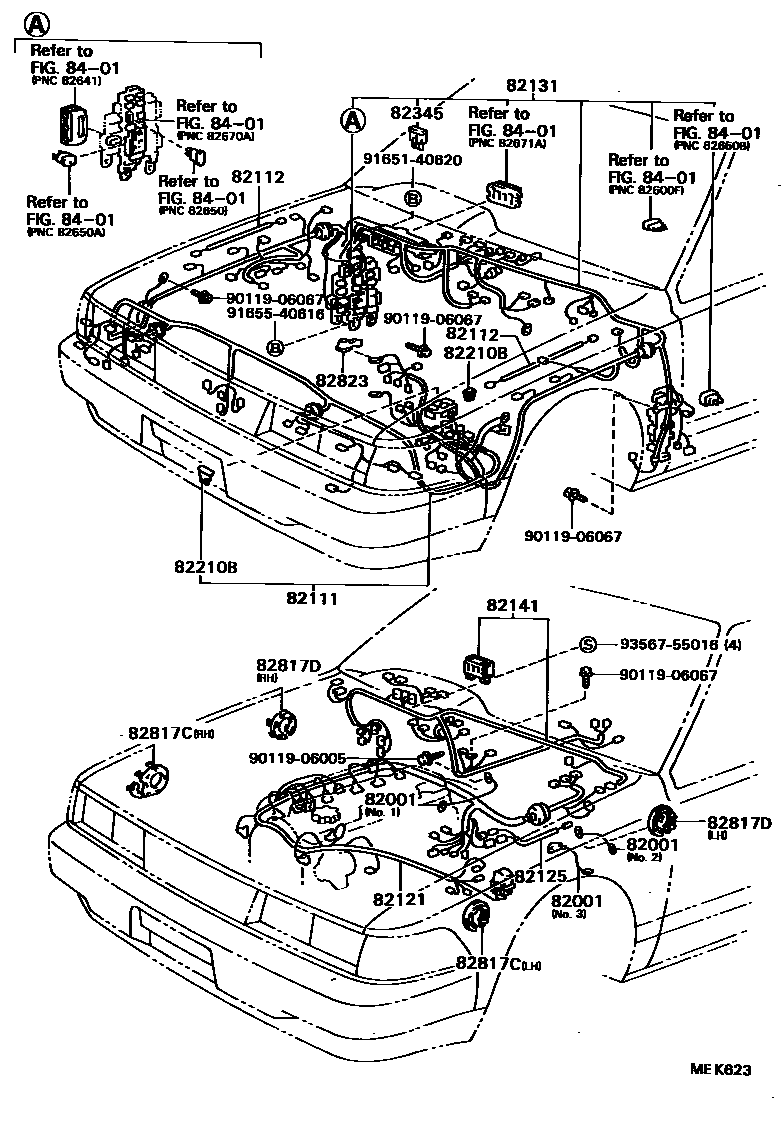

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

82001CABLE, BOND, NO.1

main90980-07109iGZ20..EFI,TWT198801-198805

main90980-07176iGZ20,MZ2#198801-199104

main90980-07200iMZ2#;GZ20..TWC198801-198805

main90980-07268iGZ20,MZ2#198801-199104

main90980-07308iMZ2#;GZ20..HTWC,TWC198805-199104

main90980-07309iGZ20..EFI,TWT198805-199104

82111WIRE, ENGINE ROOM MAIN

main82111-24220iGZ20..EFI198801-198901

main82111-24230iGZ20..5F..TWC198801-198901

main82111-24240iGZ20..4FC..TWC198801-198901

main82111-24250iGZ20..4FC..TWC198801-198901

main82111-24280iGZ20..4FC..GTT198801-198901

main82111-24290iGZ20..GTL;GZ20..5F..GTT198801-198901

main82111-24300iGZ20..TWT198801-198901

main82111-24310iMZ20..GT198801-198808

main82111-24311iMZ20..GT198808-198901

main82111-24320iMZ2#..GTL198801-198809

main82111-24321iMZ2#..GTL198809-198901

main82111-24330iMZ20..AEC198904-198905

main82111-24360iGZ20..HTWC,TWC198901-199104

main82111-24370iGZ20..HTWC,TWC198901-199104

main82111-24380iGZ20..4FC..GTT198901-199104

main82111-24390iGZ20..GTL;GZ20..5F..GTT198901-199104

main82111-24400iGZ20..TWT198901-199104

main82111-24410iMZ20..CP..GT198901-199104

main82111-24420iMZ2#..GTL198901-199104

82112WIRE, ENGINE ROOM, NO.2

main82112-24040iGZ20,MZ2#198801-199104

82121WIRE, ENGINE

main82121-14490iGZ20..5F..TWC198901-199104

main82121-14500iGZ20..4FC..TWC198901-199104

main82121-14510iMZ2#..5F198901-198908

main82121-14511iMZ2#..5F198908-199104

main82121-14520iMZ2#..4FC198808-198908

main82121-14521iMZ2#..4FC198908-199104

main82121-24240iGZ20..EFI198801-198901

main82121-24250iGZ20..5F..TWC198801-198808

main82121-24251iGZ20..5F..TWC198808-198901

main82121-24260iGZ20..4FC..TWC198801-198808

main82121-24261iGZ20..4FC..TWC198808-198901

main82121-24270iGZ20..5F..TWT198801-198808

main82121-24271iGZ20..5F..TWT198808-199104

main82121-24280iGZ20..4FC..TWT198801-198808

main82121-24281iGZ20..4FC..TWT198808-199104

main82121-24290iMZ2#..5F198801-198901

main82121-24300iMZ2#..4FC198801-198808

main82121-24310iGZ20..HTWC198901-199104

82125WIRE, TRANSMISSION

main82125-24020iGZ20..5F..VX198801-199104

82131WIRE, COWL

main82131-24540iGZ20..EFI198801-198901

main82131-24550iGZ20..GTT198801-198901

main82131-24560iGZ20..TWC198801-198901

main82131-24570iGZ20..GTT198801-198901

main82131-24580iGZ20..GTL;MZ20..5F..GT198801-198901

main82131-24590iGZ20..GT,GTL;MZ20..5F..GT198801-198901

main82131-24600iMZ20..4FC..GT198801-198809

main82131-24601iMZ20..4FC..GT198809-198901

main82131-24610iMZ20..4FC..GT198801-198809

main82131-24611iMZ20..4FC..GT198809-198901

main82131-24620iMZ20..GTL198801-198809

main82131-24621iMZ20..GTL198809-198901

main82131-24630iMZ20..GTL198801-198809

main82131-24631iMZ20..GTL198809-198901

main82131-24640iMZ21198801-198809

main82131-24641iMZ21198809-198901

main82131-24650iMZ20..AEC198904-198905

main82131-24660iMZ20..AEC198904-198905

main82131-24670iGZ20..HTWC198901-199104

main82131-24680iGZ20..GTT,VX198901-199104

main82131-24690iGZ20..TWC198901-199104

main82131-24700iGZ20..GTT,VX198901-199104

main82131-24710iGZ20..TWC198901-199104

main82131-24720iGZ20..HTWC198901-199104

main82131-24720iGZ20..GT,GTL;MZ20..5F..GT198901-199104

main82131-24730iMZ20..CP..4FC..GT198901-199104

main82131-24740iMZ20..CP..4FC..GT198901-199104

main82131-24750iMZ20..GTL198901-199104

main82131-24760iMZ20..GTL198901-199104

main82131-24770iMZ21198901-199104

82141WIRE, INSTRUMENT PANEL

main82141-24070iGZ20..5F;MZ20..5F..GT198801-198901

main82141-24080iGZ20..5F;MZ20..5F..GT198801-198901

main82141-24090iGZ20..4FC..(GTT,VX)198801-198901

main82141-24100iMZ20..4FC..GT;GZ20..4FC..(GT,GTL)198801-198901

main82141-24110iGZ20..4FC;MZ20..4FC..GT198801-198901

main82141-24120iMZ20..GTL198801-198901

main82141-24130iMZ21198801-198901

main82141-24150iMZ20..AEC198904-198905

main82141-24160iGZ20..5F;MZ20..5F..GT198901-199104

main82141-24170iGZ20..5F;MZ20..5F..GT198901-199104

main82141-24180iGZ20..4FC..(GTT,VX)198901-199104

main82141-24190iMZ20..CP..4FC..GT;GZ20..4FC..(GT,GTL)198901-199104

main82141-24200iGZ20..4FC;MZ20..CP..4FC..GT198901-199104

main82141-24210iMZ20..GTL198901-199104

main82141-24220iMZ21198901-199104

82210BFUSIBLE LINK

main90982-08188iGZ20198801-199104

main90982-08189iGZ20,MZ2#198801-199104

main90982-08190iGZ20,MZ2#..HTWC,TWC,TWT198801-199104

main90982-08202iMZ2#198801-199104

main90982-08203iMZ2#198801-199104

main90982-08223iMZ2#198801-199104

main90982-08246iGZ20198801-199104

main90982-08253iMZ2#198812-198912

sub90982-08203

main90982-08254iMZ2#198801-199104

82345DIODE

main82345-12040iMZ20..CP..GT;GZ20..HTWC,TWT198801-199104

main82345-12040iGZ20..TWT;MZ20..5F..GT198801-198901

main82345-20040iMZ20..CP..4FC..GT198901-199104

main82345-20040iGZ20..EFI,TWC;MZ20..4FC..GT198801-198905

main82345-20040iGZ20..TWC;MZ2#..GTL;MZ20..AEC198901-199104

main82345-20060iMZ20..AEC198904-198905

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-24100iGZ20,MZ2#198801-199104

LH

main82817-24140iGZ20198801-199104

RH

main82817-24150iMZ2#198801-199104

RH

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-24110iGZ20,MZ2#198801-199104

82823CAP, TERMINAL, NO.1

main82823-22050iGZ20198801-199104

main82823-24030iMZ2#198801-199104

8401

9011906005

main90119-06005

9011906067

main90119-06067

9165140620

main91651-40620

9165540616

main91655-40616

9356755016

main93567-55016

18 parts on this diagram · 11 diagrams in section
