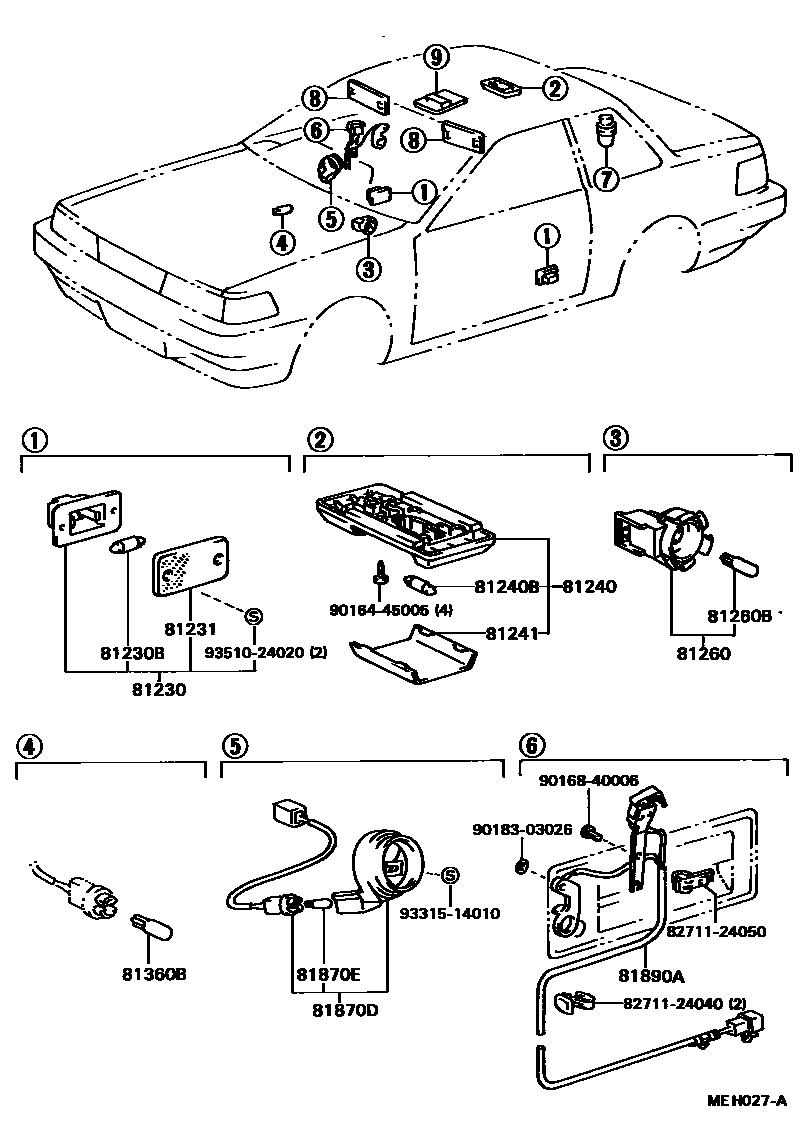

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-24010×2iGZ20,MZ2#198801-199104

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iGZ20,MZ2#198801-199104

81231LENS, COURTESY LAMP

main81231-30080×2iGZ20,MZ2#198801-199104

81240LAMP ASSY, ROOM, NO.1

main81240-24020-03iGZ20;MZ20..CP..GT198801-199104

GRAY,TRIM2#

main81240-24020-14iGZ20,MZ2#..CP198801-199104

BLUE,TRIM8#

main81240-24020-25iGZ20,MZ2#..CP198801-199104

GRAYGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iGZ20,MZ2#..CP198801-199104

81241LENS, ROOM LAMP, NO.1

main81241-24010iGZ20,MZ2#..CP198801-198906

main81241-24020iGZ20,MZ2#198906-199104

81260LAMP ASSY, GLOVE BOX

main81260-22070iGZ20,MZ2#198801-199104

81260BBULB(FOR GLOVE BOX)

main90981-11018iGZ20,MZ2#198801-199104

81360BBULB, STEP OR SPOT LAMP

main90981-11014iGZ20,MZ2#198801-199104

81870DLAMP ASSY, KEY CYLINDER

main81870-14010iGZ20,MZ2#198801-199104

81870EBULB, KEY CYLINDER LAMP

main90981-11018iGZ20,MZ2#198801-199104

81890ALAMP ASSY, DOOR LOCK CYLINDER

main81890-24020iGZ20,MZ2#198801-198901

main81890-24021iGZ20,MZ2#198901-199104

8271124040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24040

8271124050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24050

9016445005

main90164-45005

9016840006

main90168-40006

9018303026

main90183-03026

9331514010

main93315-14010

9351024020

main93510-24020

19 parts on this diagram · 2 diagrams in section
