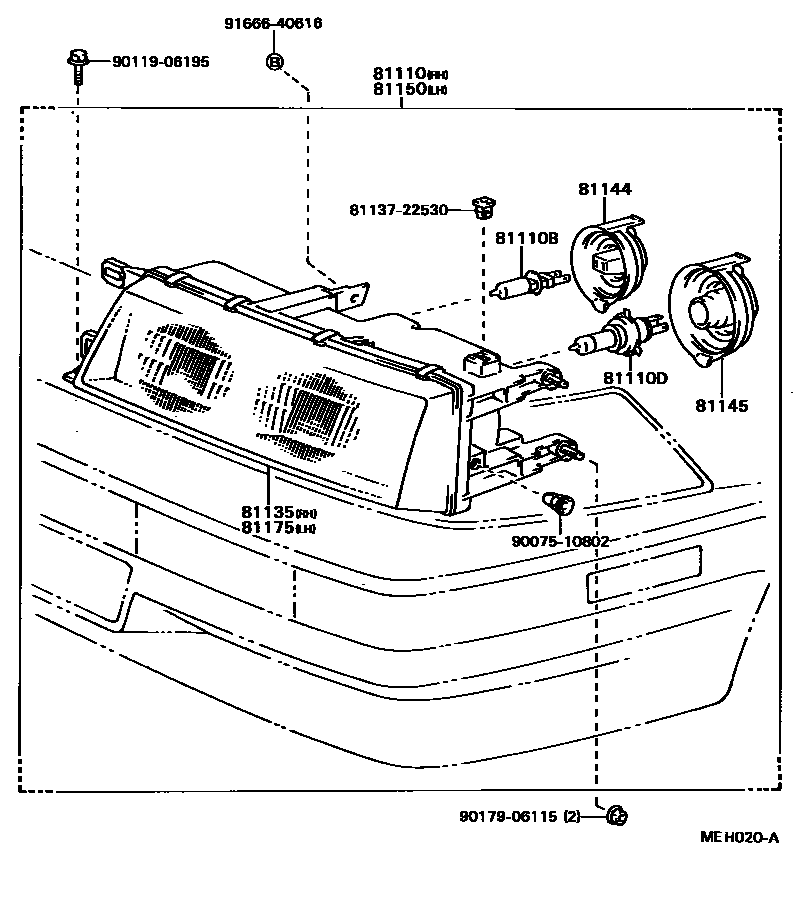

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-24020iGZ20,MZ2#198801-198901

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13031×2iGZ20,MZ2#198801-198908

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13015×2iGZ20,MZ2#198801-198908

81135UNIT ASSY, HEADLAMP, RH

main81130-24020iGZ20,MZ2#198801-198908

81144COVER, HEADLAMP, NO.1

main81139-24020×2iGZ20,MZ2#198801-198908

81145COVER, HEADLAMP, NO.2

main81139-20730×2iGZ20,MZ2#198801-198908

81150HEADLAMP ASSY, LH

main81150-24020iGZ20,MZ2#198801-198908

81175UNIT ASSY, HEADLAMP, LH

main81170-24020iGZ20,MZ2#198801-198908

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510802

main90075-10802

9011906195

main90119-06195

9017906115

main90179-06115

9166640616

main91666-40616

13 parts on this diagram · 1 diagram in section
