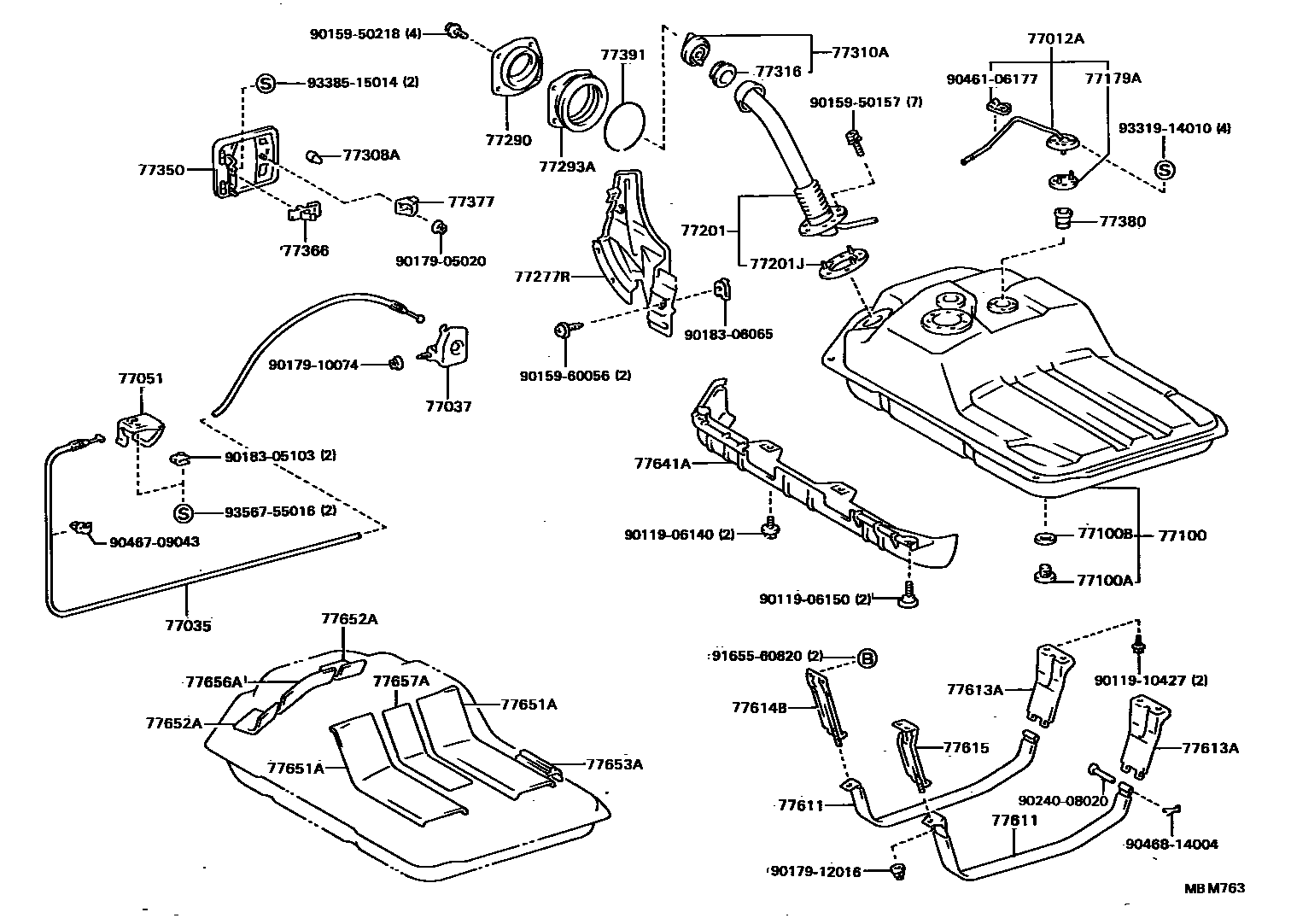

FUEL TANK & TUBE

0001 1 0002 1

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-14060iGZ20,MZ2#198801-199104

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-24040iGZ20,MZ2#..CP198801-199104

sub77035-32060

main77035-91F01iMZ20..AEC198904-198905

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-90K00iGZ20,MZ2#198801-199104

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

sub77051-24020

sub77051-44010

main77051-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

sub77051-24020

sub77051-44010

main77051-24020-15iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

sub77051-24020

sub77051-44010

77100TANK ASSY, FUEL

main77001-19426iGZ20,MZ2#198801-199104

77100APLUG(FOR FUEL TANK)

main90341-20004iGZ20,MZ2#198801-199104

77100BGASKET(FOR FUEL TANK)

main90430-20007iGZ20,MZ2#198801-199104

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iGZ20,MZ2#198801-199104

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-24020iGZ20,MZ2#198801-199104

sub77201-24030

main77201-24030iGZ20,MZ2#198911-199104

77201JGASKET(FOR FUEL TANK INLET PIPE)

main77169-14010iGZ20,MZ2#198801-199104

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-24020iGZ20,MZ2#198801-199104

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20070iGZ20,MZ2#198801-199104

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20010iGZ20,MZ2#198801-199104

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-08013iGZ20,MZ2#198801-198806

sub90541-08009

main90541-08019iGZ20,MZ2#198806-199104

sub90541-08009

77310ACAP ASSY, FUEL TANK

main77310-12100iGZ20,MZ2#198801-199104

77316GASKET, FUEL TANK CAP

main77316-12050iGZ20,MZ2#198801-199104

77350LID ASSY, FUEL FILLER OPENING

main77350-24020iGZ20,MZ2#198801-199104

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iGZ20,MZ2#198801-199104

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGZ20,MZ2#198801-199104

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iGZ20,MZ2#198801-199104

77391RING, FUEL INLET BOX

main77391-16011iGZ20,MZ2#198801-199104

77611BAND, FUEL TANK

main77601-14070iGZ20,MZ2#198801-199104

main77602-14050iGZ20,MZ2#198801-199104

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-14050iGZ20,MZ2#198801-199104

77614BBRACKET, FUEL TANK BAND, NO.2

main77614-14030iGZ20,MZ2#198801-199104

77615BRACKET, FUEL TANK BAND, NO.3

main77615-14010iGZ20,MZ2#198801-199104

77641APROTECTOR, FUEL TANK, NO.1

main77641-14090iGZ20,MZ2#198801-199104

main77641-24010iGZ20,MZ2#198801-199104

77651ACUSHION, FUEL TANK, NO.1

main77651-14090iGZ20,MZ2#198801-199104

77652ACUSHION, FUEL TANK, NO.2

main77652-14110iGZ20,MZ2#198801-199104

77653ACUSHION, FUEL TANK, NO.3

main77653-14070iGZ20,MZ2#198801-199104

77656ACUSHION, FUEL TANK, NO.4

main77654-14040iGZ20,MZ2#198801-199104

77657ACUSHION, FUEL TANK, NO.5

main77655-14020iGZ20,MZ2#198801-199104

9011906140

main90119-06140

9011906150

main90119-06150

9011910427

main90119-10427

9015950157

main90159-50157

9015950218

main90159-50218

9015960056

main90159-60056

9017905020

main90179-05020

9017910074

main90179-10074

9017912016

main90179-12016

9018305103

main90183-05103

9018306065

main90183-06065

9024008020

main90240-08020

9046106177

main90461-06177

9046709043

main90467-09043

9046814004

main90468-14004

9165560820

main91655-60820

9331914010

main93319-14010

9338515014

main93385-15014

9356755016

main93567-55016

50 parts on this diagram · 2 diagrams in section
