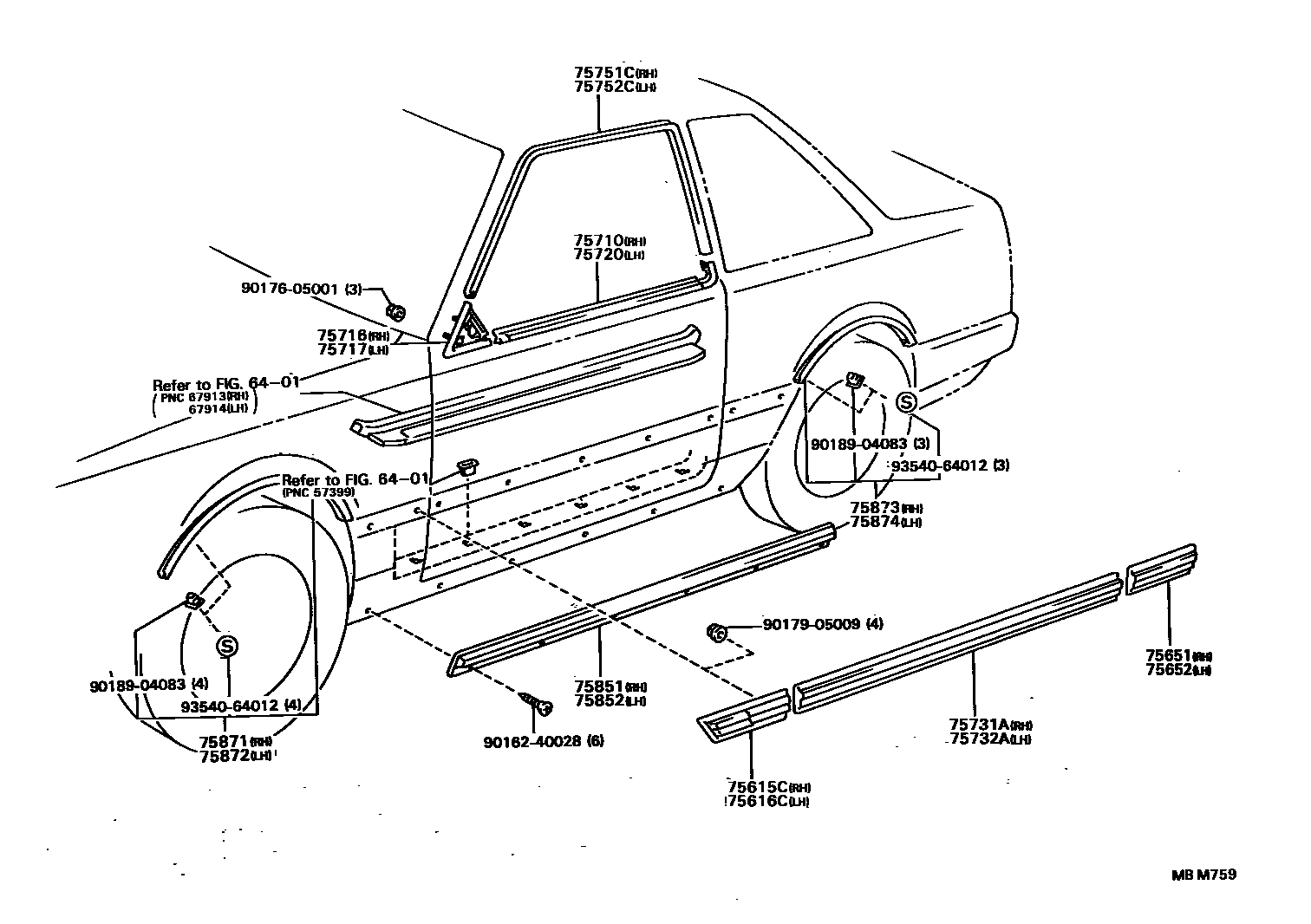

SIDE MOULDING

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

75615CMOULDING, FRONT FENDER, REAR RH

main75615-24030-01iGZ20..HTWC; GZ20..TWC,TWT199004-199104

BLACK,180; BLACK,180 ,20M

main75615-24030-02iGZ20198901-199004

RED,3H4

main75615-24030-03iGZ20199004-199104

LIGHT GRAY,050

main75615-24030-04iGZ20199004-199104

DARK BLUE,8G5

main75615-24030-06iGZ20199004-199104

DARK BROWN,22R

main75615-24030-07iGZ20198801-199004

GREEN,6J7

main75615-24030-13iGZ20..EFI,TWC; GZ20..TWT198801-198901

GRAY,168; GRAY,168 ,26A

main75615-24030-17iGZ20199004-199104

GREEN,23R

main75615-24040-01iMZ20..CP..GT198901-199004

BLACK,180

main75615-24040-03iMZ2#..GTL;MZ20..AEC; MZ20..CP..GT198801-199004

LIGHT GRAY,043; LIGHT GRAY,043 ,24G

main75615-24040-04iMZ20..GT199004-199104

DARK BLUE,8G5

main75615-24040-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main75615-24040-06iMZ20..GT199004-199104

DARK BROWN,22R

main75615-24040-07iMZ20..GT198801-199004

GREEN,6J7

main75615-24040-13iMZ20..GT198801-198901

GRAY,168

main75615-24040-17iMZ2#199004-199104

GREEN,23R

75616CMOULDING, FRONT FENDER, REAR LH

main75616-24030-01iGZ20..HTWC,TWC; GZ20..TWT198901-199004

BLACK,180; BLACK,180 ,20M

main75616-24030-02iGZ20198801-198812

RED,3H1

main75616-24030-03iGZ20199004-199104

LIGHT GRAY,050

main75616-24030-04iGZ20199004-199104

DARK BLUE,8G5

main75616-24030-06iGZ20199004-199104

DARK BROWN,22R

main75616-24030-07iGZ20198801-199004

GREEN,6J7

main75616-24030-13iGZ20..EFI,TWC; GZ20..TWT198801-198901

GRAY,168; GRAY,168 ,26A

main75616-24030-17iGZ20199004-199104

GREEN,23R

main75616-24040-01iMZ20..GT199004-199104

BLACK,180 ,20M

main75616-24040-03iMZ2#..GTL;MZ20..AEC; MZ20..CP..GT198801-199004

LIGHT GRAY,043; LIGHT GRAY,043 ,24G

main75616-24040-04iMZ20..GT199004-199104

DARK BLUE,8G5

main75616-24040-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main75616-24040-06iMZ20..GT199004-199104

DARK BROWN,22R

main75616-24040-07iMZ20..GT198801-199004

GREEN,6J7

main75616-24040-13iMZ20..GT198801-198901

GRAY,168

main75616-24040-17iMZ2#199004-199104

GREEN,23R

75651MOULDING, QUARTER, OUTSIDE RH

main75651-24040-01iGZ20..HTWC,TWC; GZ20..TWT198901-199004

BLACK,180; BLACK,180 ,20M

main75651-24040-02iGZ20198801-198812

RED,3H1

main75651-24040-03iGZ20198801-199004

LIGHT GRAY,043 ,24G

main75651-24040-04iGZ20199004-199104

DARK BLUE,8G5

main75651-24040-06iGZ20199004-199104

DARK BROWN,22R

main75651-24040-07iGZ20198801-199004

GREEN,6J7

main75651-24040-13iGZ20..EFI,TWC; GZ20..TWT198801-198901

GRAY,168; GRAY,168 ,26A

main75651-24040-17iGZ20199004-199104

GREEN,23R

main75651-24050-01iMZ20..CP..GT198901-199004

BLACK,180

main75651-24050-03iMZ2#..GTL;MZ20..AEC; MZ20..CP..GT198801-199004

LIGHT GRAY,043; LIGHT GRAY,043 ,24G

main75651-24050-04iMZ20..GT199004-199104

DARK BLUE,8G5

main75651-24050-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main75651-24050-06iMZ20..GT199004-199104

DARK BROWN,22R

main75651-24050-07iMZ20..GT198801-199004

GREEN,6J7

main75651-24050-13iMZ20..GT198801-198901

GRAY,168

main75651-24050-17iMZ2#199004-199104

GREEN,23R

75652MOULDING, QUARTER, OUTSIDE LH

main75652-24040-01iGZ20..HTWC,TWC; GZ20..TWT198901-199004

BLACK,180; BLACK,180 ,20M

main75652-24040-02iGZ20198801-198812

RED,3H1

main75652-24040-03iGZ20198801-199004

LIGHT GRAY,043 ,24G

main75652-24040-04iGZ20199004-199104

DARK BLUE,8G5

main75652-24040-06iGZ20199004-199104

DARK BROWN,22R

main75652-24040-07iGZ20198801-199004

GREEN,6J7

main75652-24040-13iGZ20..EFI,TWC; GZ20..TWT198801-198901

GRAY,168; GRAY,168 ,26A

main75652-24040-17iGZ20199004-199104

GREEN,23R

main75652-24050-01iMZ20..GT199004-199104

BLACK,180 ,20M

main75652-24050-03iMZ2#..GTL;MZ20..AEC; MZ20..CP..GT198801-199004

LIGHT GRAY,043; LIGHT GRAY,043 ,24G

main75652-24050-04iMZ20..GT199004-199104

DARK BLUE,8G5

main75652-24050-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main75652-24050-06iMZ20..GT199004-199104

DARK BROWN,22R

main75652-24050-07iMZ20..GT198801-199004

GREEN,6J7

main75652-24050-13iMZ20..GT198801-198901

GRAY,168

main75652-24050-17iMZ2#199004-199104

GREEN,23R

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-24030iGZ20,MZ2#198801-199001

main75710-24031iGZ20,MZ2#199001-199003

main75710-24032iGZ20,MZ2#199003-199104

main75710-24040iGZ20,MZ2#198901-199001

main75710-24041iGZ20,MZ2#199001-199003

main75710-24042iGZ20,MZ2#199003-199104

75716COVER, FRONT DOOR BELT MOULDING END, FRONT RH

main75716-24030iGZ20,MZ2#198801-199104

main75716-24040iGZ20,MZ2#198801-199104

main75716-24050iGZ20,MZ2#198901-199104

main75716-24060iGZ20,MZ2#198901-199104

75717COVER, FRONT DOOR BELT MOULDING END, FRONT LH

main75717-24030iGZ20,MZ2#198801-199104

main75717-24040iGZ20,MZ2#198801-199104

main75717-24050iGZ20,MZ2#198901-199104

main75717-24060iGZ20,MZ2#198901-199104

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-24030iGZ20,MZ2#198801-199001

main75720-24031iGZ20,MZ2#199001-199003

main75720-24032iGZ20,MZ2#199003-199104

main75720-24040iGZ20,MZ2#198901-199001

main75720-24041iGZ20,MZ2#199001-199003

main75720-24042iGZ20,MZ2#199003-199104

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-24050-02iGZ20198801-198812

RED,3H1

main75731-24050-03iGZ20198801-198812

LIGHT GRAY,043 ,24G

main75731-24050-07iGZ20198801-198812

GREEN,6J7

main75731-24050-13iGZ20..EFI,TWC; GZ20..TWT198801-198812

GRAY,168; GRAY,168 ,26A

main75731-24060-01iMZ20..GT199004-199104

BLACK,180 ,20M

main75731-24060-03iMZ2#..GTL;MZ20..AEC; MZ20..CP..GT198801-199004

LIGHT GRAY,043; LIGHT GRAY,043 ,24G

main75731-24060-04iMZ20..GT199004-199104

DARK BLUE,8G5

main75731-24060-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main75731-24060-06iMZ20..GT199004-199104

DARK BROWN,22R

main75731-24060-07iMZ20..GT198801-199004

GREEN,6J7

main75731-24060-13iMZ20..GT198801-198901

GRAY,168

main75731-24060-17iMZ2#199004-199104

GREEN,23R

main75731-24070-01iGZ20..HTWC; GZ20..TWC,TWT199004-199104

BLACK,180; BLACK,180 ,20M

main75731-24070-02iGZ20198901-199004

RED,3H4

main75731-24070-03iGZ20198812-199004

LIGHT GRAY,043 ,24G

main75731-24070-04iGZ20199004-199104

DARK BLUE,8G5

main75731-24070-06iGZ20199004-199104

DARK BROWN,22R

main75731-24070-07iGZ20198812-199004

GREEN,6J7

main75731-24070-13iGZ20..EFI,TWC; GZ20..TWT198812-198901

GRAY,168; GRAY,168 ,26A

main75731-24070-17iGZ20199004-199104

GREEN,23R

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-24050-02iGZ20198801-198812

RED,3H1

main75732-24050-03iGZ20198801-198812

LIGHT GRAY,043 ,24G

main75732-24050-07iGZ20198801-198812

GREEN,6J7

main75732-24050-13iGZ20..EFI,TWC; GZ20..TWT198801-198812

GRAY,168; GRAY,168 ,26A

main75732-24060-01iMZ20..CP..GT198901-199004

BLACK,180

main75732-24060-03iMZ2#..GTL;MZ20..AEC; MZ20..CP..GT198801-199004

LIGHT GRAY,043; LIGHT GRAY,043 ,24G

main75732-24060-04iMZ20..GT199004-199104

DARK BLUE,8G5

main75732-24060-05iMZ2#..GTL;MZ20..AEC198801-199104

BEIGE,24H

main75732-24060-06iMZ20..GT199004-199104

DARK BROWN,22R

main75732-24060-07iMZ20..GT198801-199004

GREEN,6J7

main75732-24060-13iMZ20..GT198801-198901

GRAY,168

main75732-24060-17iMZ2#199004-199104

GREEN,23R

main75732-24070-01iGZ20..HTWC; GZ20..TWC,TWT199004-199104

BLACK,180; BLACK,180 ,20M

main75732-24070-02iGZ20198901-199004

RED,3H4

main75732-24070-03iGZ20198812-199004

LIGHT GRAY,043 ,24G

main75732-24070-04iGZ20199004-199104

DARK BLUE,8G5

main75732-24070-06iGZ20199004-199104

DARK BROWN,22R

main75732-24070-07iGZ20198812-199004

GREEN,6J7

main75732-24070-13iGZ20..EFI,TWC; GZ20..TWT198812-198901

GRAY,168; GRAY,168 ,26A

main75732-24070-17iGZ20199004-199104

GREEN,23R

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-24020iGZ20,MZ2#198801-199104

main75751-24030iGZ20,MZ2#198901-199104

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-24020iGZ20,MZ2#198801-199104

main75752-24030iGZ20,MZ2#198901-199104

75851MOULDING, ROCKER PANEL, RH

main75850-24020iGZ20,MZ2#198801-199104

main75850-24040iGZ20,MZ2#198901-199104

75852MOULDING, ROCKER PANEL, LH

main75850-24020iGZ20,MZ2#198801-199104

main75850-24040iGZ20,MZ2#198901-199104

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-29075iMZ2#198801-199104

main75871-29245iMZ2#198901-199104

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-29065iMZ2#198801-199104

main75872-29245iMZ2#198901-199104

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-29105iMZ2#198801-199104

main75873-29175iMZ2#198901-199104

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-29105iMZ2#198801-199104

main75874-29175iMZ2#198901-199104

9016240028

main90162-40028

9017605001

main90176-05001

9017905009

main90179-05009

9018904083

main90189-04083

9354064012

main93540-64012

24 parts on this diagram · 1 diagram in section
