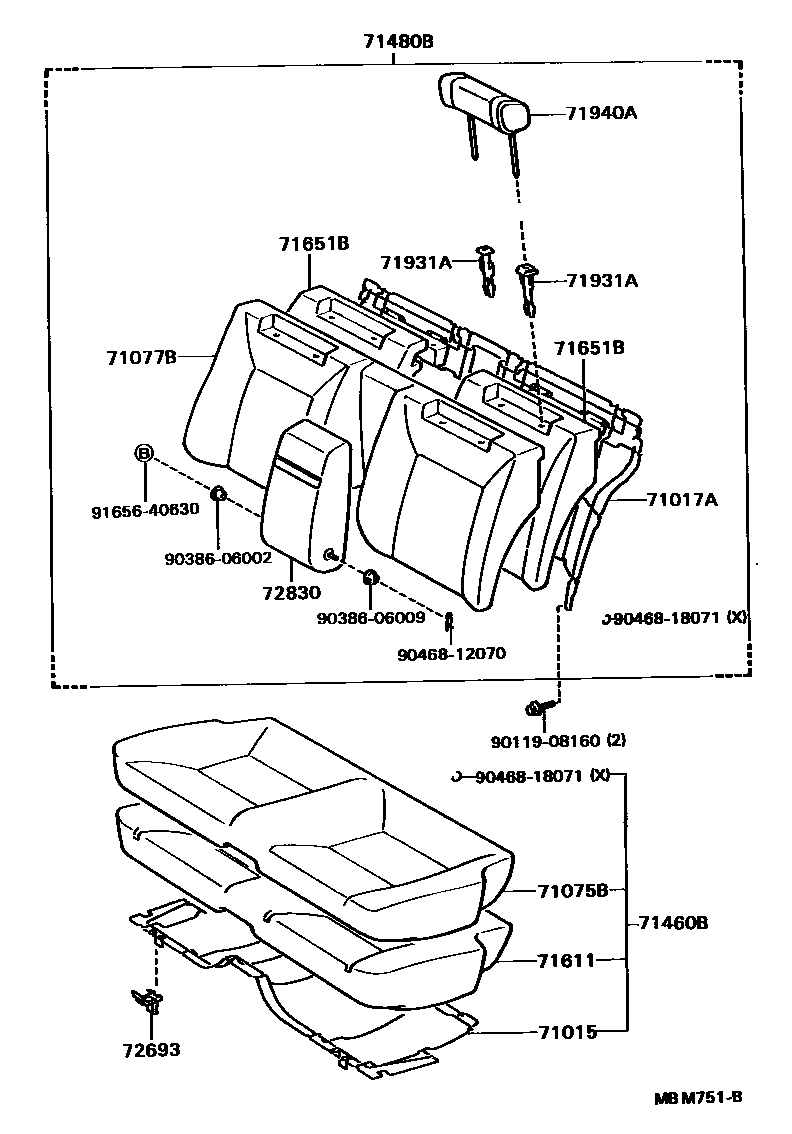

REAR SEAT & SEAT TRACK

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-24020iGZ20,MZ2#..CP198801-199104

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-24030iMZ20..CP..GT198801-199004

main71017-24040iGZ20,MZ2#..GTL; MZ20..CP..GT198801-199104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-24091-01iGZ20..TWC198801-199104

main71075-24091-04iGZ20..TWC198801-199104

main71075-24091-05iGZ20..TWC198801-199104

main71075-24101-01iGZ20..GT,VX198801-199104

BLACK,TRIM2#

main71075-24101-04iGZ20..GT,VX198801-199104

DARK BLUE,TRIM8#

main71075-24101-05iGZ20..GT,VX198801-199104

GREIGE,TRIM4#

main71075-24121-01iGZ20..GTT198801-199104

BLACK,TRIM2#

main71075-24121-04iGZ20..GTT198801-199104

DARK BLUE,TRIM8#

main71075-24121-05iGZ20..GTT198801-199104

GREIGE,TRIM4#

main71075-24131-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71075-24131-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71075-24131-05iGZ20,MZ2#..GTL; MZ20..CP..GT198801-199104

main71075-24141-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main71075-24141-05iMZ2#..GTL198801-199104

GREIGE,TRIM4#

main71075-24150-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71075-24150-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71075-24150-05iGZ20..GTL; MZ20..CP..GT198801-199104

main71075-24160-01iMZ20..GT;GZ20..GTL199004-199104

main71075-24160-04iMZ20..GT;GZ20..GTL199004-199104

main71075-24160-05iMZ20..GT;GZ20..GTL199004-199104

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-24091-01iGZ20..TWC198801-199104

main71077-24091-04iGZ20..TWC198801-199104

main71077-24091-05iGZ20..TWC198801-199104

main71077-24101-01iGZ20..GT,VX198801-199104

BLACK,TRIM2#

main71077-24101-04iGZ20..GT,VX198801-199104

DARK BLUE,TRIM8#

main71077-24101-05iGZ20..GT,VX198801-199104

GREIGE,TRIM4#

main71077-24121-01iGZ20..GTT198801-199104

BLACK,TRIM2#

main71077-24121-04iGZ20..GTT198801-199104

DARK BLUE,TRIM8#

main71077-24121-05iGZ20..GTT198801-199104

GREIGE,TRIM4#

main71077-24131-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71077-24131-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71077-24131-05iGZ20,MZ2#..GTL; MZ20..CP..GT198801-199104

main71077-24141-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main71077-24141-05iMZ2#..GTL198801-199104

GREIGE,TRIM4#

main71077-24150-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71077-24150-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71077-24150-05iGZ20..GTL; MZ20..CP..GT198801-199104

main71077-24160-01iMZ20..GT;GZ20..GTL199004-199104

main71077-24160-04iMZ20..GT;GZ20..GTL199004-199104

main71077-24160-05iMZ20..GT;GZ20..GTL199004-199104

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-24091-01iGZ20..GT,VX198801-199104

***,BLACK,TRIM2#

main71460-24091-04iGZ20..GT,VX198801-199104

***,DARK BLUE,TRIM8#

main71460-24091-05iGZ20..GT,VX198801-199104

***,GREIGE,TRIM4#

main71460-24111-01iGZ20..GTT198801-199104

***,BLACK,TRIM2#

main71460-24111-04iGZ20..GTT198801-199104

***,DARK BLUE,TRIM8#

main71460-24111-05iGZ20..GTT198801-199104

***,GREIGE,TRIM4#

main71460-24121-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71460-24121-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71460-24121-05iGZ20,MZ2#..GTL; MZ20..CP..GT198801-199104

main71460-24131-01iGZ20..TWC198801-199104

main71460-24131-04iGZ20..TWC198801-199104

main71460-24131-05iGZ20..TWC198801-199104

main71460-24140-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71460-24140-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71460-24140-05iGZ20..GTL; MZ20..CP..GT198801-199104

main71460-24151-04iMZ2#..GTL198801-199104

***,DARK BLUE,TRIM8#

main71460-24151-05iMZ2#..GTL198801-199104

***,GREIGE,TRIM4#

main71460-24160-01iMZ20..GT;GZ20..GTL199004-199104

main71460-24160-04iMZ20..GT;GZ20..GTL199004-199104

main71460-24160-05iMZ20..GT;GZ20..GTL199004-199104

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-24091-01iGZ20..GT,VX198801-199104

***,BLACK,TRIM2#

main71480-24091-04iGZ20..GT,VX198801-199104

***,DARK BLUE,TRIM8#

main71480-24091-05iGZ20..GT,VX198801-199104

***,GREIGE,TRIM4#

main71480-24111-01iGZ20..GTT198801-199104

***,BLACK,TRIM2#

main71480-24111-04iGZ20..GTT198801-199104

***,DARK BLUE,TRIM8#

main71480-24111-05iGZ20..GTT198801-199104

***,GREIGE,TRIM4#

main71480-24121-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71480-24121-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71480-24121-05iGZ20,MZ2#..GTL; MZ20..CP..GT198801-199104

main71480-24131-01iGZ20..TWC198801-199104

main71480-24131-04iGZ20..TWC198801-199104

main71480-24131-05iGZ20..TWC198801-199104

main71480-24140-01iGZ20..GTL; MZ20..CP..GT198801-199104

main71480-24140-04iGZ20..GTL; MZ20..CP..GT198801-199104

main71480-24140-05iGZ20..GTL; MZ20..CP..GT198801-199104

main71480-24151-04iMZ2#..GTL198801-199104

***,DARK BLUE,TRIM8#

main71480-24151-05iMZ2#..GTL198801-199104

***,GREIGE,TRIM4#

main71480-24160-01iMZ20..GT;GZ20..GTL199004-199104

main71480-24160-04iMZ20..GT;GZ20..GTL199004-199104

main71480-24160-05iMZ20..GT;GZ20..GTL199004-199104

71611PAD, REAR SEAT CUSHION

main71611-24030iGZ20,MZ2#..CP198801-199104

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-24040iMZ20..CP..GT198801-199004

main71651-24050iGZ20,MZ2#..GTL; MZ20..CP..GT198801-199104

main71652-24010iGZ20,MZ21;MZ20..GTL198801-199104

main71652-24020iGZ20,MZ2#..GTL; MZ20..CP..GT198801-199104

71931ASUPPORT, REAR SEAT HEADREST

main71930-10060-01×2iGZ20..GTL;MZ20..CP..GT198801-199104

main71930-10060-58×2iGZ20,MZ2#..CP..(GT,GTL)..TWT198801-199104

main71930-10060-59×2iGZ20,MZ2#..CP..(GT,GTL)..TWT198801-199104

main71931-10010-01×2iGZ20..GTL;MZ20..CP..GT198801-199104

main71931-10010-58×2iGZ20,MZ2#..CP..(GT,GTL)..TWT198801-199104

main71931-10010-59×2iGZ20,MZ2#..CP..(GT,GTL)..TWT198801-199104

71940AHEADREST ASSY, REAR SEAT

main71940-24011-01×2iGZ20..GTL;MZ20..CP..GT198801-199104

main71940-24011-04×2iGZ20..GTL;MZ20..CP..GT198801-199104

main71940-24011-05×2iGZ20,MZ2#..CP..(GT,GTL)..TWT198801-199104

72693HOOK, REAR SEAT CUSHION LOCK

main72693-24010×2iGZ20,MZ2#..CP198801-199104

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-24061-01iGZ20..GT,VX198801-199104

BLACK,TRIM2#

main72830-24061-04iGZ20..GT,VX198801-199104

DARK BLUE,TRIM8#

main72830-24061-05iGZ20..GT,VX198801-199104

GREIGE,TRIM4#

main72830-24070-01iGZ20..GTT; GZ20..TWC198801-199104

main72830-24070-04iGZ20..GTT; GZ20..TWC198801-199104

main72830-24070-15iGZ20..GTT; GZ20..TWC198801-199104

main72830-24081-01iGZ20..GTL;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main72830-24081-04iGZ20..GTL;MZ20..CP..GT; MZ2#..GTL198801-199104

DARK BLUE,DARK BLUE,TRIM8#; DARK BLUE,TRIM8#

main72830-24081-05iGZ20..GTL;MZ20..CP..GT198801-199104

GREIGE,TRIM4#

main72830-24090-04iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

main72830-24090-15iMZ2#..GTL198801-199104

GREIGE,TRIM4#

main72830-24100-01iMZ20..GT;GZ20..GTL199004-199104

main72830-24100-04iMZ20..GT;GZ20..GTL199004-199104

main72830-24100-05iMZ20..GT;GZ20..GTL199004-199104

9011908160

main90119-08160

9038606002

main90386-06002

9038606009

main90386-06009

9046812070

main90468-12070

9046818071

main90468-18071

9165640630

main91656-40630

18 parts on this diagram · 1 diagram in section
