DECK BOARD & DECK TRIM COVER
63413ASHIM, ROOM RACK FRAME, NO.1
63414ASHIM, ROOM RACK FRAME, NO.2
64031ACOVER SUB-ASSY, TONNEAU SIDE, RH
GREIGE,TRIM4#
64032ACOVER SUB-ASSY, TONNEAU SIDE, LH
GREIGE,TRIM4#
64093HINGE SUB-ASSY, TONNEAU COVER, NO.1
64094HINGE SUB-ASSY, TONNEAU COVER, NO.2
64208AMEMBER SUB-ASSY, ROOM PARTITION CROSS
64270BOARD ASSY, ROOM PARTITION, RH
GREIGE,TRIM4#
64277AMOULDING, ROOM PARTITION TRIM
64279PROTECTOR, ROOM PARTITION
64280BOARD ASSY, ROOM PARTITION, LH
GREIGE,TRIM4#
64289AREINFORCEMENT, ROOM PARTITION TRIM
64298PANEL, ROOM PARTITION CENTER
GREIGE,TRIM4#
64309APOCKET SUB-ASSY, PACKAGE TRAY TRIM
GREIGE,TRIM4#
64321DBRACKET, PACKAGE TRAY TRIM, RH
64322BRACKET, PACKAGE TRAY TRIM, LH
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
GREIGE,TRIM4#
64333BCOVER, PACKAGE TRAY TRIM SIDE, RH
GREIGE,TRIM4#
64337AGARNISH, PACKAGE TRAY TRIM, NO.1
64338AHOOK, PACKAGE TRAY TRIM GARNISH
GREIGE,TRIM4#
64339AGARNISH, PACKAGE TRAY TRIM, REAR
64342COVER, PACKAGE TRAY TRIM, UNDER
64342ACLIP
GRAY,TRIM4#
64349BCOVER, PACKAGE TRAY TRIM SIDE, LH
GREIGE,TRIM4#
64351BPAD, PACKAGE TRAY TRIM, NO.1
64370GRILLE ASSY, REAR SPEAKER
GREIGE,TRIM4#
64910JCOVER ASSY, TONNEAU
GREIGE,TRIM4#
64927WIRE, TONNEAU COVER
64935HOLDER, TONNEAU COVER, RH
64936HOLDER, TONNEAU COVER, LH
64943STOPPER, TONNEAU COVER LIFT
64947REINFORCEMENT, TONNEAU COVER, NO.1
7403CAUTION PLATE (EXTERIOR & INTERIOR)
74390BVISOR ASSY, REAR
GREIGE,TRIM4#
6777114040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-14040
6777116010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16010
9011906022
main90119-06022
9011906029
main90119-06029
9011908048
main90119-08048
9046804118
main90468-04118
9165540830
main91655-40830
9352023014
main93520-23014
9356054012
main93560-54012
9356055016
main93560-55016
9356754512
main93567-54512

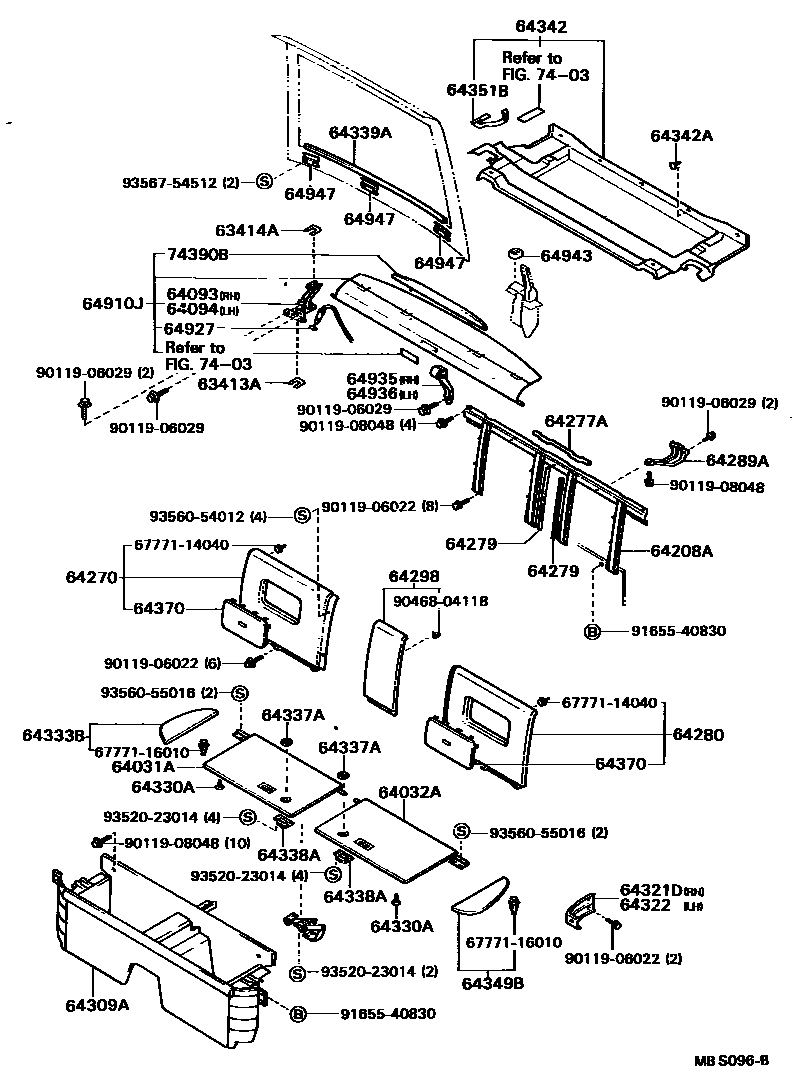

45 parts on this diagram · 1 diagram in section
