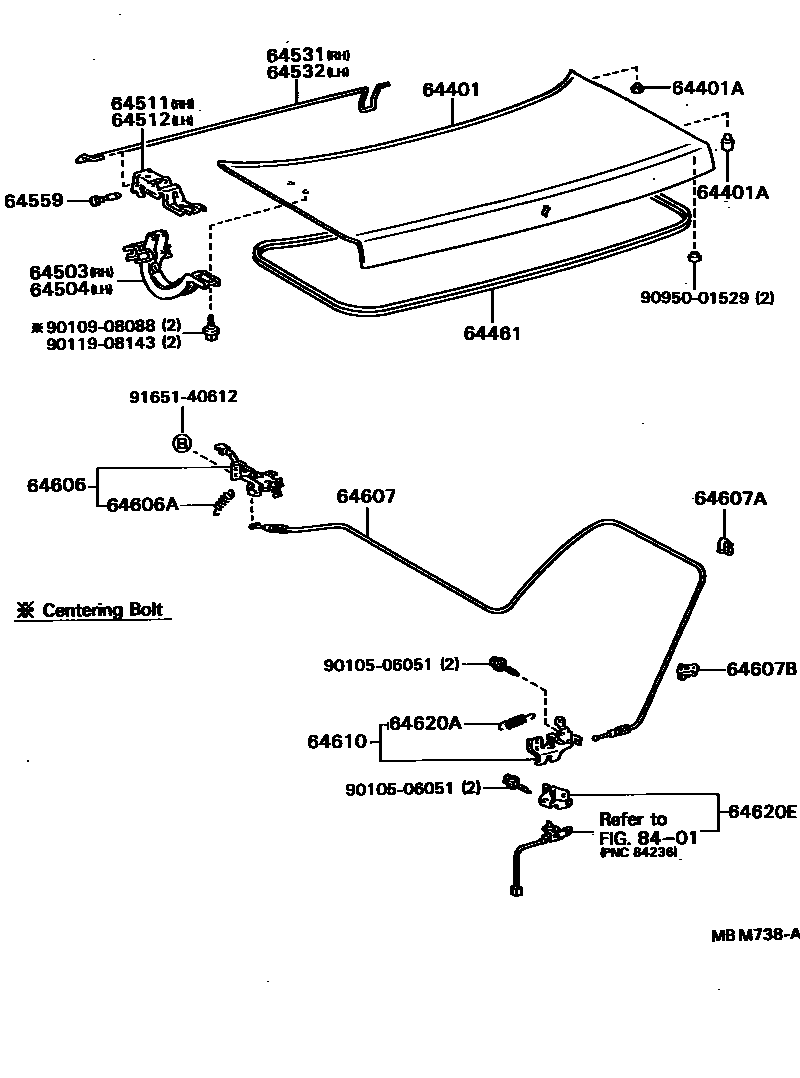

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-24051iGZ20,MZ2#..CP198801-199104

main64401-24070iGZ20,MZ2#..CP198801-199104

main64401-91F02iMZ20..AEC198904-198905

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iGZ20,MZ2#..CP198801-199104

OD=10

main90541-09016×2iGZ20,MZ2#..CP198801-199104

main90541-09029×2iMZ20..AEC198904-198905

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-24030iGZ20,MZ2#..CP198801-199104

main64461-91F02iMZ20..AEC198904-198905

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-24010iGZ20,MZ2#..CP198801-199104

main64503-24020iGZ20,MZ2#..CP198801-199104

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64504-24010iGZ20,MZ2#..CP198801-199104

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-24020iGZ20,MZ2#..CP198801-199104

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-24020iGZ20,MZ2#..CP198801-199104

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-24030iGZ20,MZ2#..CP..(GT,GTL)..TWT198801-199104

main64531-24041iGZ20,MZ2#..CP198801-199104

main64531-24050iGZ20..GT,GTT,VX198801-199104

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-24030iGZ20,MZ2#..CP..(GT,GTL)..TWT198801-199104

main64532-24041iGZ20,MZ2#..CP198801-199104

main64532-24050iGZ20..GT,GTT,VX198801-199104

64559PIN, LUGGAGE DOOR HINGE

main64559-12010×2iGZ20,MZ2#..CP198801-199104

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-24020-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main64606-24020-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main64606-24020-15iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iGZ20,MZ2#198801-199104

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-24040iGZ20,MZ2#..CP198801-199104

main64607-91F01iMZ20..AEC198904-198905

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05002iGZ20,MZ2#..CP198801-199104

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05004×2iGZ20,MZ2#..CP198801-199104

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-24020iGZ20,MZ2#198801-199104

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iGZ20,MZ2#198801-199104

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-24010iGZ20,MZ2#198801-199104

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010908088

main90109-08088

9011908143

main90119-08143

9095001529

main90950-01529

9165140612

main91651-40612

24 parts on this diagram · 2 diagrams in section
