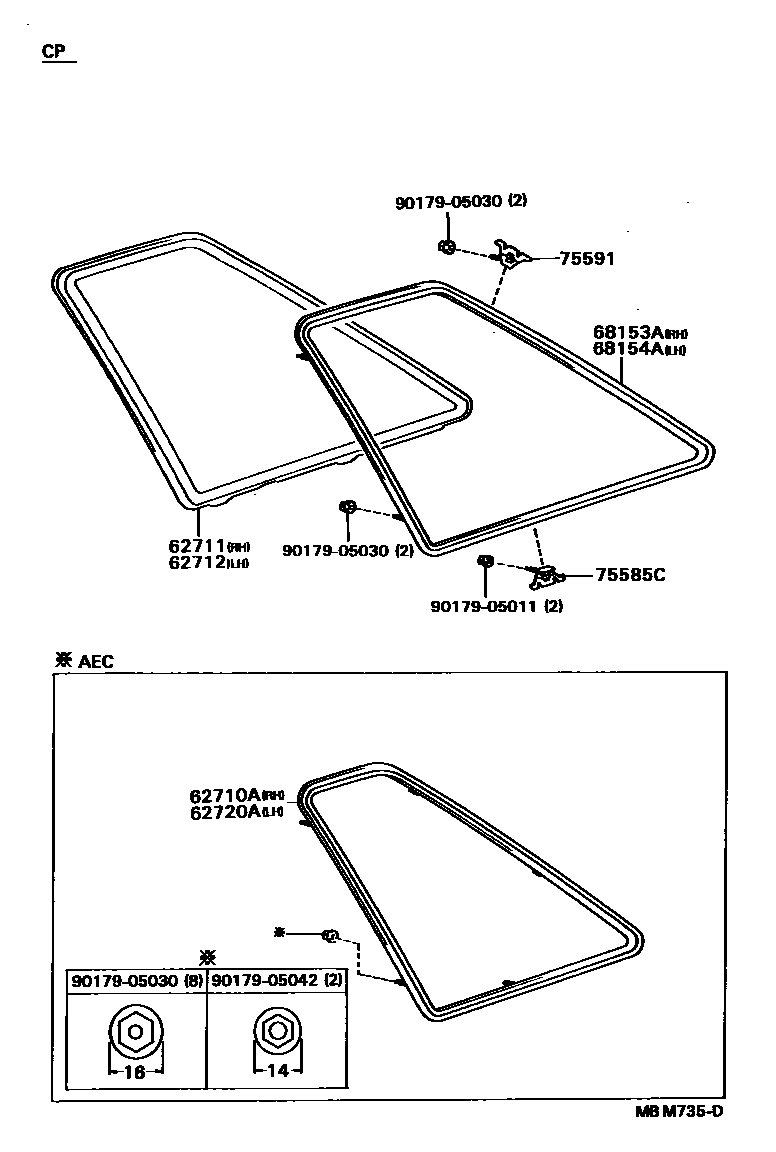

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-91F01iMZ20..AEC198904-198905

62711GLASS, QUARTER WINDOW, RH

main62711-24070iGZ20;MZ20..GT199001-199104

main62711-24080iMZ20..GTL198801-198904

main62711-24090iGZ20;MZ20..CP..GT; MZ20..GTL198801-199104

main62711-24100iMZ20..GTL; MZ21198801-199104

main62711-24110iMZ20..GTL199004-199104

main62711-24120iMZ20..GTL; MZ21199004-199104

62712GLASS, QUARTER WINDOW, LH

main62712-24070iGZ20;MZ20..GT199001-199104

main62712-24080iMZ21198801-199001

main62712-24090iGZ20;MZ20..CP..GT; MZ20..GTL198801-199104

main62712-24100iMZ20..GTL; MZ21198801-199104

main62712-24110iMZ20..GTL199004-199104

main62712-24120iMZ20..GTL; MZ21199004-199104

62720AWINDOW ASSY, QUARTER, LH

main62720-91F01iMZ20..AEC198904-198905

68153AMOULDING, QUARTER WINDOW NO.2 GLASS, RH

main68153-24010iGZ20,MZ2#..CP198801-199104

68154AMOULDING, QUARTER WINDOW NO.2 GLASS, LH

main68154-24010iGZ20,MZ2#..CP198801-199104

75585CRETAINER, QUARTER GARNISH FRONT MOULDING, NO.2

main75585-24010×4iGZ20,MZ2#..CP198801-199104

75591RETAINER, QUARTER GARNISH FRONT MOULDING, NO.1

main75591-24010×4iGZ20,MZ2#..CP198801-199104

9017905011

main90179-05011

9017905030

main90179-05030

9017905042

main90179-05042

11 parts on this diagram · 1 diagram in section
