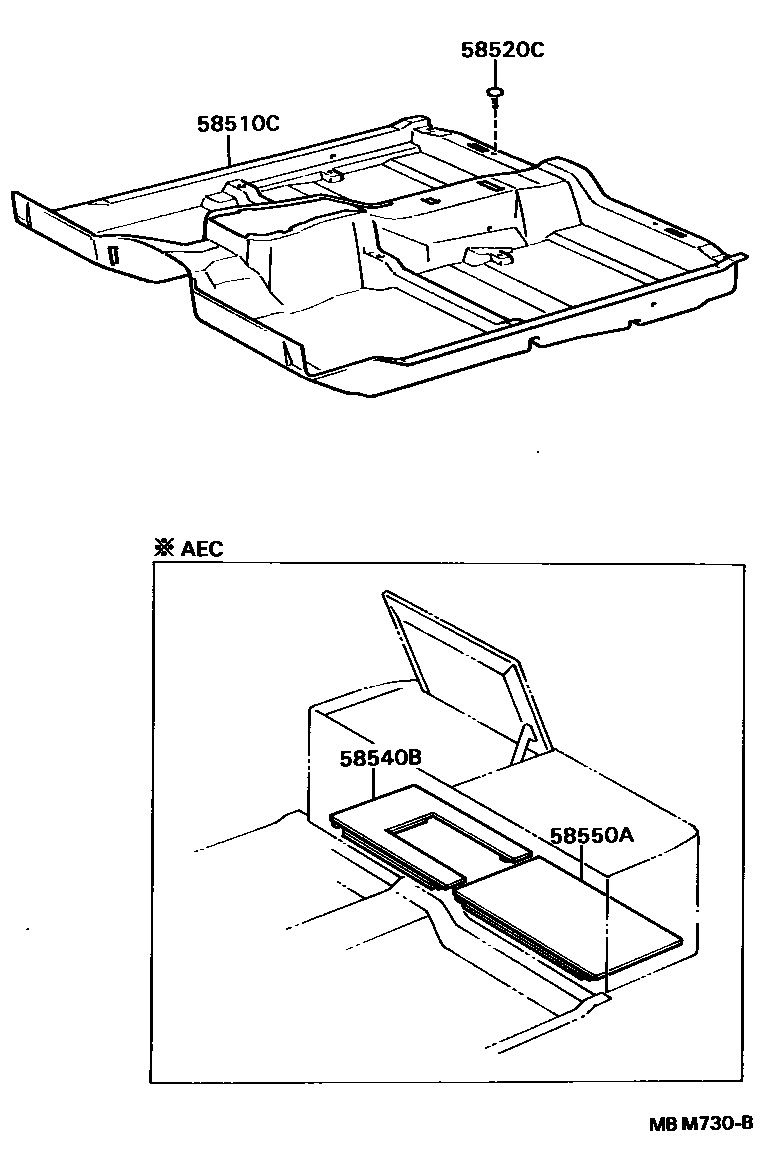

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-24120-01iGZ20..EFI,TWC198801-198901

BLACK,TRIM2#

main58510-24120-04iGZ20..EFI,TWC198801-198901

DARK BLUE,TRIM8#

main58510-24120-15iGZ20..EFI,TWC198801-198901

GREIGE,TRIM4#

main58510-24121-01iGZ20..HTWC,TWC198901-199104

BLACK,TRIM2#

main58510-24121-04iGZ20..HTWC,TWC198901-199104

DARK BLUE,TRIM8#

main58510-24121-05iGZ20..HTWC,TWC198901-199104

GREIGE,TRIM4#

main58510-24130-01iMZ20..GT;GZ20..TWT198801-198901

BLACK,TRIM2#

main58510-24130-04iMZ20..GT;GZ20..TWT198801-198901

DARK BLUE,TRIM8#

main58510-24130-15iMZ20..GT;GZ20..TWT198801-198901

GREIGE,TRIM4#

main58510-24131-01iGZ20..TWT;MZ20..CP..GT198901-199104

BLACK,TRIM2#

main58510-24131-04iGZ20..TWT;MZ20..CP..GT198901-199104

DARK BLUE,TRIM8#

main58510-24131-05iGZ20..TWT;MZ20..CP..GT198901-199104

GREIGE,TRIM4#

main58510-24140-04iMZ2#..GTL198801-198901

DARK BLUE,TRIM8#

main58510-24140-15iMZ2#..GTL198801-198901

GREIGE,TRIM4#

main58510-24141-04iMZ2#..GTL198901-199104

DARK BLUE,TRIM8#

main58510-24141-05iMZ2#..GTL198901-199104

GREIGE,TRIM4#

main58510-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-11×2iGZ20;MZ20..CP..GT; MZ2#..GTL; MZ20..AEC198801-198910

BLACK,TRIM2#,4#,8#; BLACK,TRIM4#; BLACK,TRIM8#

main90467-06016-51×2iMZ2#..GTL;MZ20..AEC198801-199104

GREIGE,TRIM4#

main90467-06016-58×2iGZ20;MZ20..CP..GT; MZ2#..GTL198801-199104

GRAY,TRIM4#,8#; GRAY,TRIM8#

58540BCARPET ASSY, FRONT FLOOR, REAR NO.1

main58540-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

58550ACARPET ASSY, FRONT FLOOR, REAR NO.2

main58550-91F01-05iMZ20..AEC198904-198905

GREIGE,TRIM4#

4 parts on this diagram · 1 diagram in section
