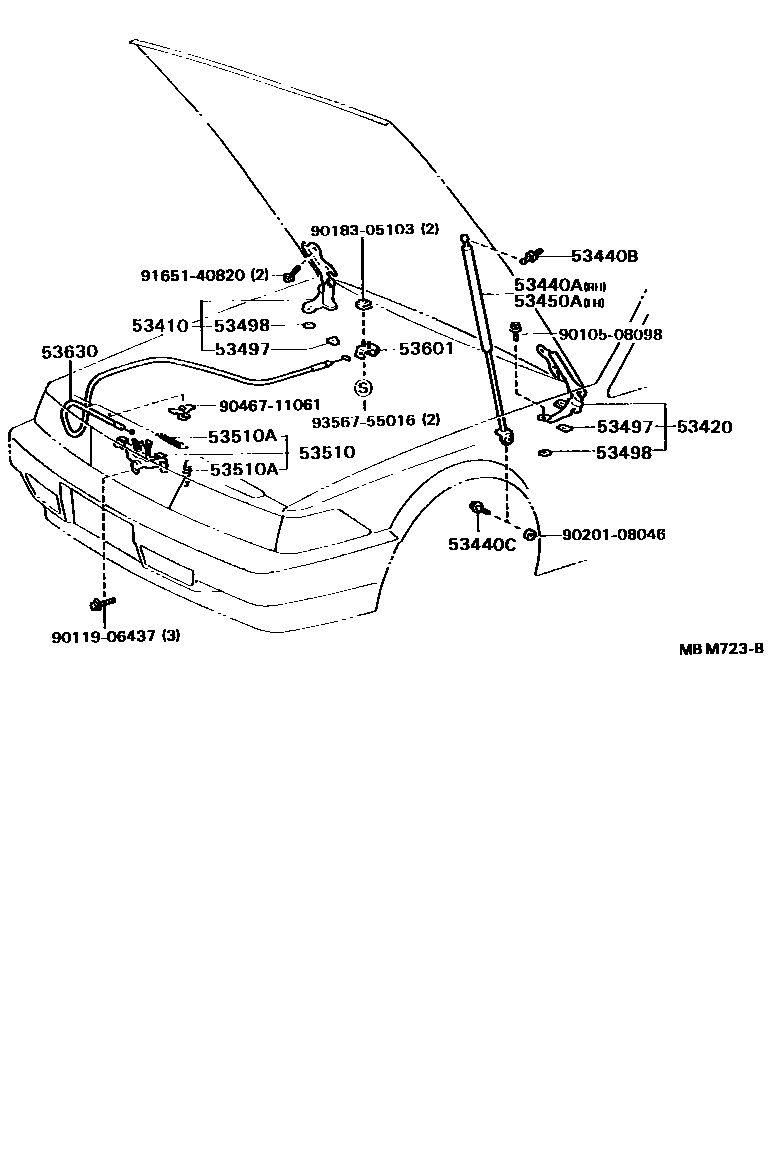

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-22050iGZ20,MZ2#198801-198808

main53410-22051iGZ20,MZ2#198808-199104

53420HINGE ASSY, HOOD, LH

main53420-22050iGZ20,MZ2#198801-198808

main53420-22051iGZ20,MZ2#198808-199104

53440ASUPPORT ASSY, HOOD, RH

main53440-24030iGZ20,MZ2#198801-199104

53440BBOLT, HOOD SUPPORT, NO.1

main68961-14040×2iGZ20,MZ2#198801-199104

53440CBOLT, HOOD SUPPORT, NO.2

main68961-96440×2iGZ20,MZ2#198801-199104

53450ASUPPORT ASSY, HOOD, LH

main53450-24030iGZ20,MZ2#198801-199104

53497PAD, HOOD HINGE, NO.1

main53497-17010iGZ20,MZ2#198801-198808

main53497-17011iGZ20,MZ2#198808-199104

53498PAD, HOOD HINGE, NO.2

main53498-12010iGZ20,MZ2#198801-198808

main53498-12011iGZ20,MZ2#198808-199104

53510LOCK ASSY, HOOD

main53510-24020iGZ20,MZ2#198801-199104

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09029iGZ20,MZ2#198801-199104

main90506-18024iGZ20,MZ2#198801-199104

WD=1.8,CW=18

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main53601-20060-10iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main53601-20060-35iGZ20,MZ2#198801-199104

GREIGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-24030iGZ20,MZ2#198801-199104

9010508098

main90105-08098

9011906437

main90119-06437

9018305103

main90183-05103

9020108046

main90201-08046

9046711061

main90467-11061

9165140820

main91651-40820

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
