HOOD & FRONT FENDER

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-24010iGZ20,MZ2#198801-199104

53301HOOD SUB-ASSY

main53301-24021iGZ20,MZ2#198801-199104

53341BINSULATOR, HOOD

main53341-24060iGZ20,MZ2#198801-199104

53341CCLIP(FOR HOOD INSULATOR)

main90467-08081×11iGZ20,MZ2#..TWT; GZ20..GT,VX198801-199104

PLASTIC

main90467-11035×4iGZ20,MZ2#..TWT198801-199104

STEEL

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-24020iGZ20,MZ2#198801-199104

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iGZ20,MZ2#198801-199104

53383SEAL, HOOD TO COWL TOP

main53383-24020iGZ20,MZ2#198801-199104

53384ABUMPER, FENDER TO HOOD

main53384-24010×2iGZ20,MZ2#198801-199104

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-14010iGZ20,MZ2#198801-199104

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-14010iGZ20,MZ2#198801-199104

53801FENDER SUB-ASSY, FRONT RH

main53801-24050iGZ20198801-199104

main53801-24060iGZ20198801-199104

main53801-24070iMZ2#198801-199104

main53801-24080iMZ2#198801-199104

main53801-24090iGZ20198801-199104

main53801-24100iMZ2#..CP198801-199104

main53801-24110iGZ20198801-199104

main53801-24120iMZ2#..CP198801-199104

53802FENDER SUB-ASSY, FRONT LH

main53802-24050iGZ20198801-199104

main53802-24060iGZ20198801-199104

main53802-24070iMZ2#198801-199104

main53802-24080iMZ2#198801-199104

main53802-24090iGZ20198801-199104

main53802-24100iMZ2#..CP198801-199104

main53802-24110iGZ20198801-199104

main53802-24120iMZ2#..CP198801-199104

53873ASPACER, FRONT FENDER TO DOOR HINGE, RH

main53873-24010×2iGZ20,MZ2#198801-199104

53874ASPACER, FRONT FENDER TO DOOR HINGE, LH

main53874-24010×2iGZ20,MZ2#198801-199104

53875ALINER, FRONT FENDER, RH

main53875-24020iGZ20,MZ2#198801-199104

53876ALINER, FRONT FENDER, LH

main53876-24021iGZ20,MZ2#198801-199104

53878CSPACER, FRONT FENDER

main53878-14020×4iGZ20,MZ2#198801-199104

53879ARETAINER, FRONT FENDER LINER

main53879-14020×8iGZ20,MZ20; MZ21198801-199104

main53879-24010×3iMZ21198801-199104

53882CSEAL, FRONT FENDER MAIN

main53882-24020×2iGZ20,MZ2#198801-199104

53882FSEAL, FRONT FENDER

main53882-14120×10iGZ20,MZ2#199003-199104

53886DSILENCER, FRONT FENDER LINER

main53886-24011iMZ21198801-199104

9011906098

main90119-06098

9015960327

main90159-60327

9016860018

main90168-60018

9018906005

main90189-06005

9046708044

main90467-08044

9046708050

main90467-08050

9054107075

main90541-07075

9054115111

main90541-15111

9056206003

main90562-06003

9165640618

main91656-40618

9166140625

main91661-40625

9166540620

main91665-40620

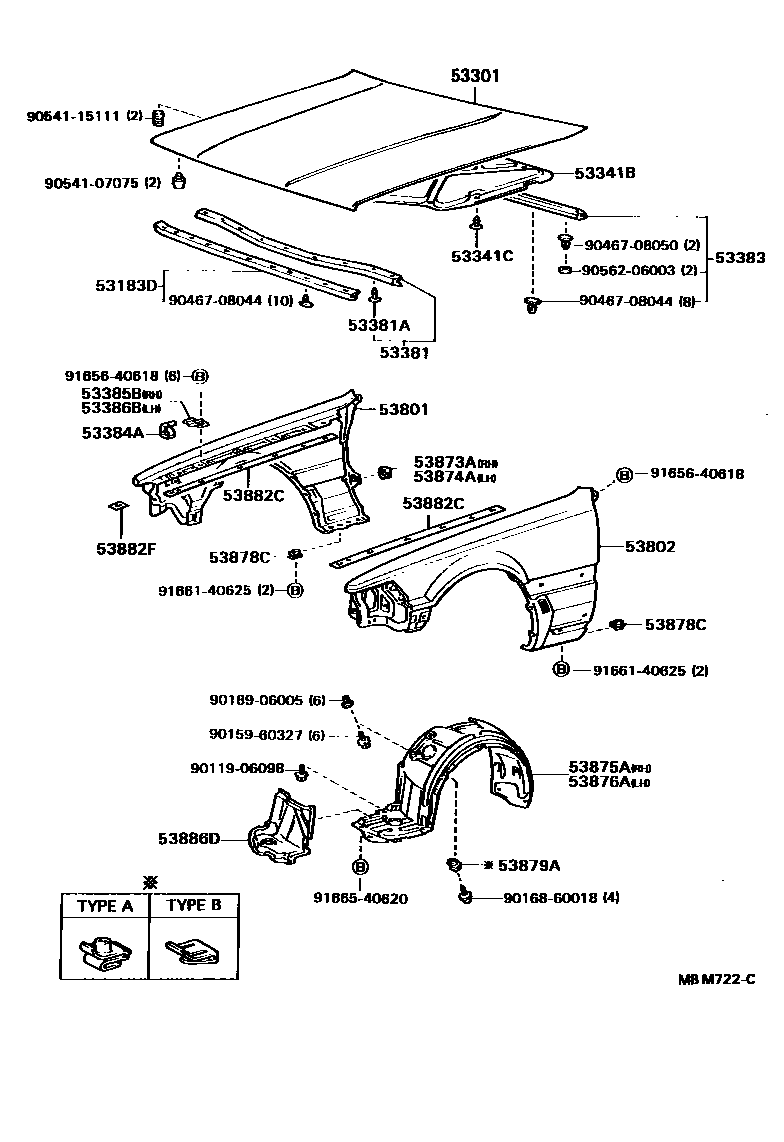

33 parts on this diagram · 1 diagram in section
