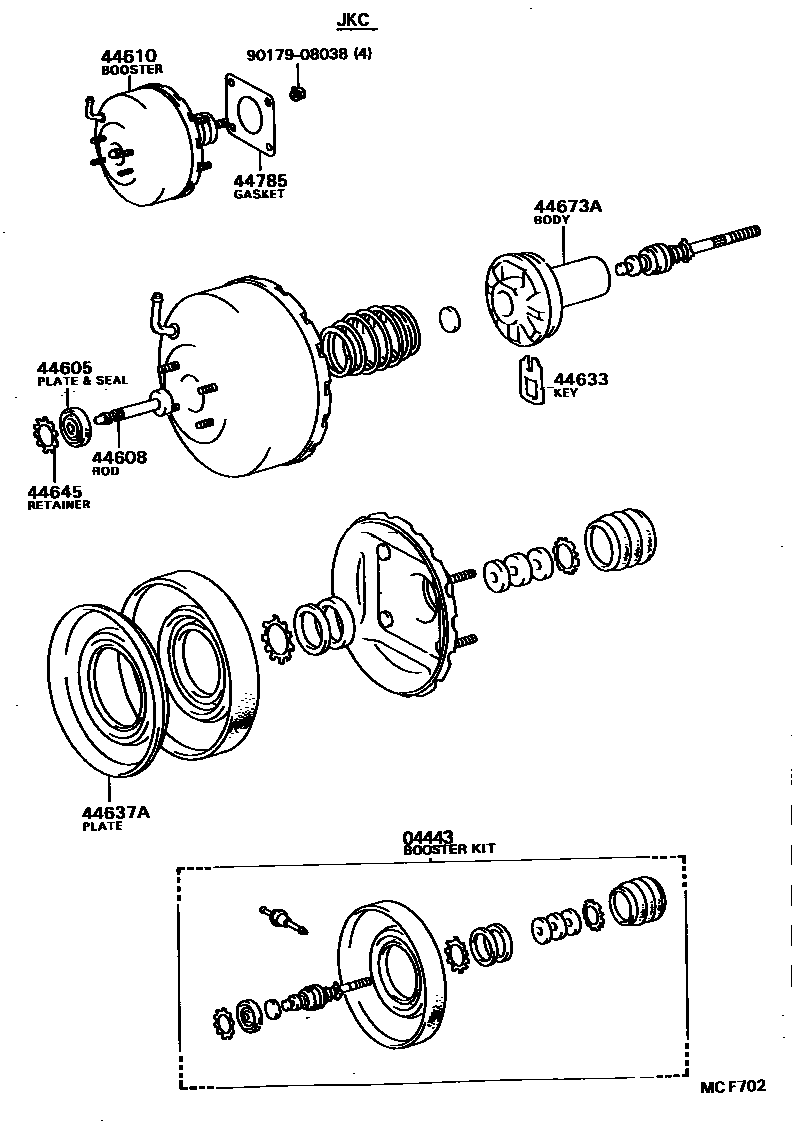

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-14480iGZ20..EFI198801-198803

main04443-14490iGZ20..TWC198801-198803

main04443-14500iGZ20,MZ2#..TWT198801-198803

main04443-14560iGZ20..TWC198803-199104

main04443-14570iGZ20..EFI198803-198901

main04443-14580iGZ20..HTWC198901-199104

main04443-24060iGZ20,MZ2#..TWT198803-199104

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iGZ20..VX198801-199104

main44605-30350iGZ20,MZ2#..TWC,TWT198801-199104

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iGZ20,MZ2#..TWC,TWT198801-199104

main44608-32020iGZ20..VX198801-199104

44610BOOSTER ASSY, BRAKE

main44610-14710iGZ20..TWC198801-198803

main44610-14711iGZ20..TWC198803-199104

main44610-14720iGZ20,MZ2#..TWT198801-198803

main44610-14730iGZ20..EFI198801-198803

main44610-14731iGZ20..VX198803-199104

main44610-24060iGZ20,MZ2#..TWT198803-199104

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iGZ20,MZ2#..TWC,TWT198801-199104

main44633-28130iGZ20..VX198801-199104

44637APLATE, BOOSTER DIAPHRAGM

main44637-20810iGZ20..TWC198801-199104

main44637-28300iGZ20,MZ2#..TWT198801-199104

main44637-32040iGZ20..VX198801-199104

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iGZ20,MZ2#..TWC,TWT198801-199104

main44645-22020iGZ20..VX198801-199104

44673ABODY, BOOSTER VALVE

main44673-20810iGZ20,MZ2#..TWC,TWT198801-199104

main44673-28190iGZ20..EFI198801-198803

main44673-32040iGZ20..VX198803-199104

44785GASKET, BRAKE BOOSTER

main44785-30020iGZ20,MZ2#198801-199104

9017908038

main90179-08038

10 parts on this diagram · 3 diagrams in section
