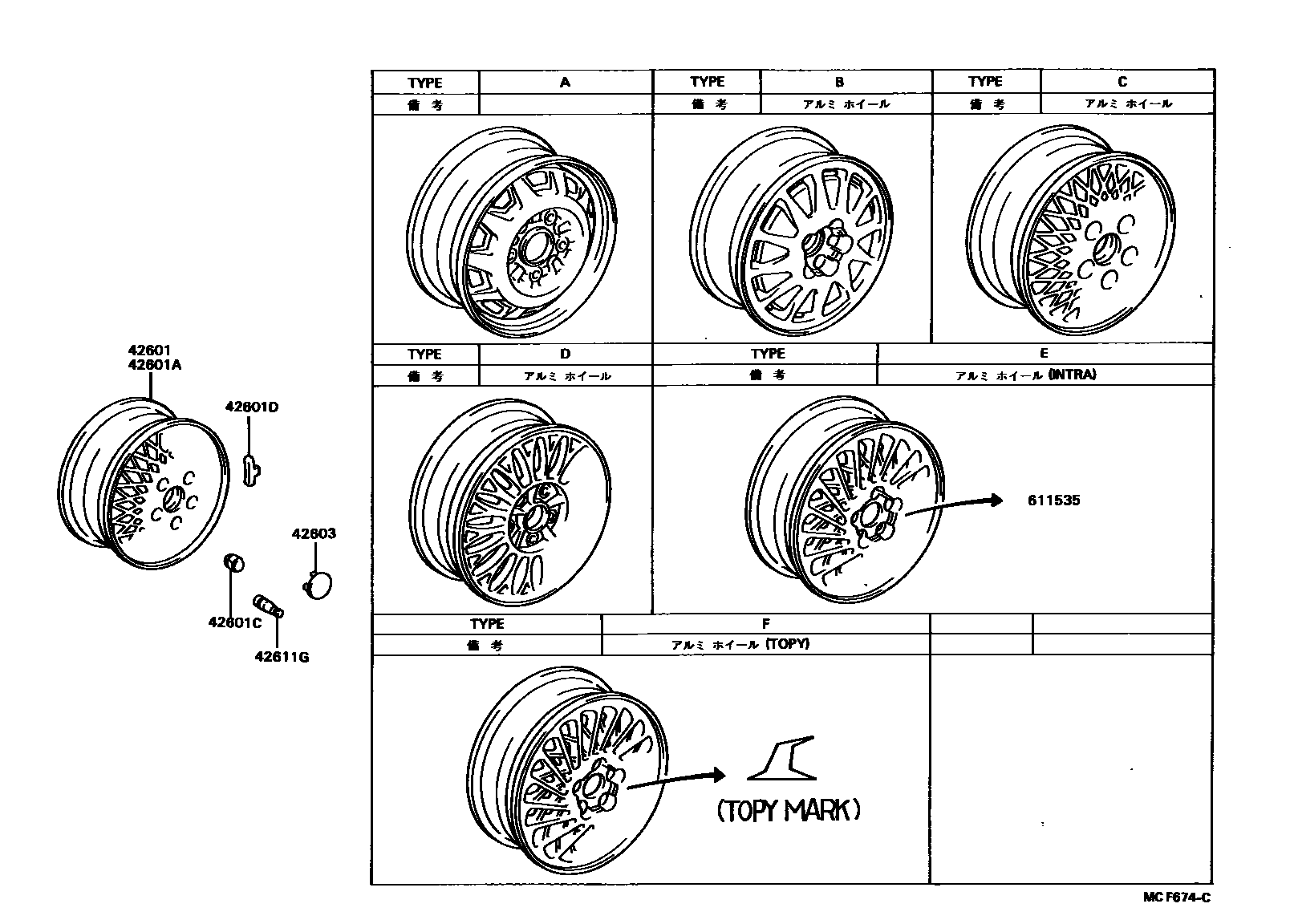

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
42601AWHEEL, DISC (FOR SPARE)
42601CNUT, HUB (FOR AXLE)
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
42603ORNAMENT SUB-ASSY, WHEEL HUB
TYPE 1,WHEEL TYPE B
TYPE 2,DARK SILVER,DARK SILVER,043 ,168 ,24G ,26A ,3H1 ,6J7; TYPE 2,DARK SILVER,DARK SILVER,043 ,168 ,24G ,6J7
TYPE 2,LIGHT BEIGE METARIC,LIGHT BEIGE METARIC,043 ,24H
TYPE 1,WHEEL COLLAR BEIGE M,GREIGE,050 ,24H
TYPE 1,WHEEL COLLAR LIGHT GREEN,LIGHT GREEN,23R
TYPE 1,WHEEL TYPE E,F,WHEEL COLLAR DARK GRAY,GRAY M.,043 ,180 ,24G ,6J7; TYPE 1,WHEEL TYPE E,F,WHEEL COLLAR DARK GRAY,GRAY M.,043 ,24G ,6J7 ,20M ,180 ,3H4
TYPE 1,WHEEL COLLAR BEIGE,BEIGE M.,043 ,24H ,6J7
TYPE 3
42611GVALVE (FOR TUBELESS TIRE)
6 parts on this diagram · 2 diagrams in section
