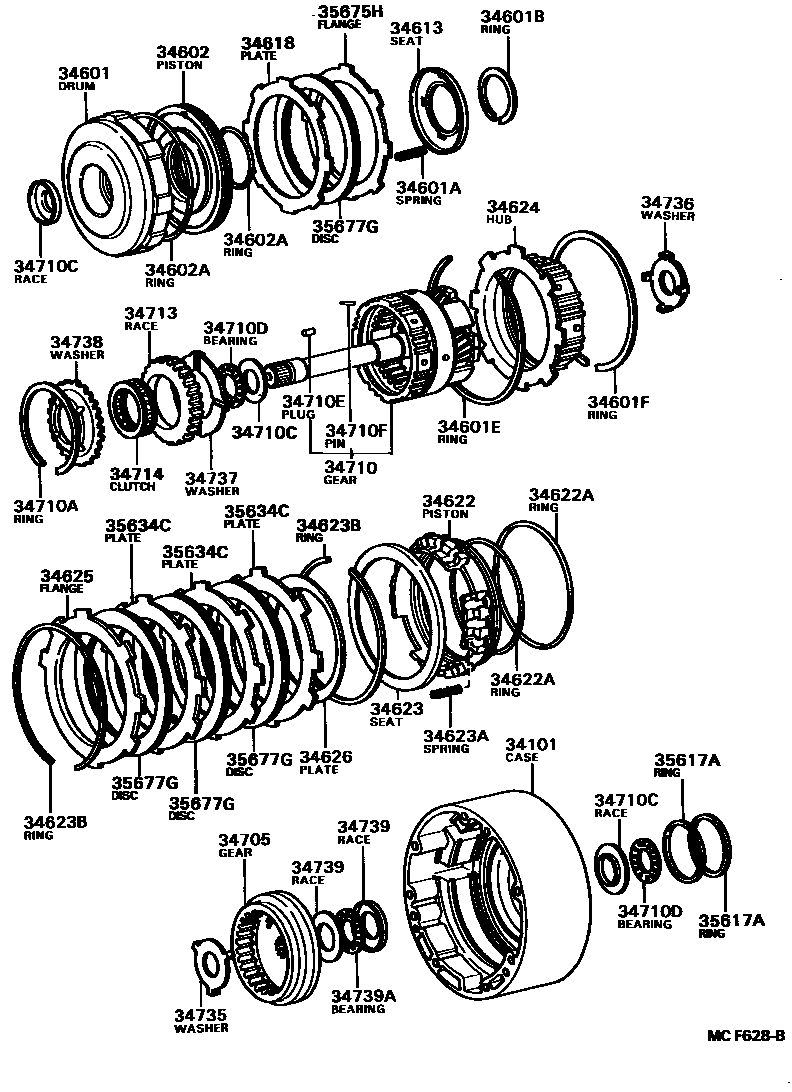

OVERDRIVE GEAR (ATM)

0001 1A42DL,A42DE 0002 1A340E

34101CASE SUB-ASSY, OVERDRIVE

main34101-30062iGZ20..4FC..(EFI,TWC)198801-198901

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30022iGZ20..4FC..(EFI,TWC)198801-198901

main34601-30030iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023×18iGZ20..4FC..(EFI,TWC)198801-198901

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGZ20..4FC..(EFI,TWC)198801-198901

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGZ20..4FC..(EFI,TWC)198801-198901

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iGZ20..4FC..(EFI,TWC)198801-198901

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30020iGZ20..4FC..(TWC,TWT); GZ20..4FC..HTWC; MZ2#..4FC198901-199104

main34602-30030iGZ20..4FC..(EFI,TWC)198801-198901

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188×5iGZ20..4FC..HTWC198901-199104

INNER

main90301-65005×5iGZ20,MZ2#..4FC..(TWC,TWT); MZ2#..4FC198901-199104

main90301-99016iGZ20..4FC..(EFI,TWC)198801-198901

main90301-99036iGZ20,MZ2#..4FC..(TWC,TWT); MZ2#..4FC198901-199104

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iGZ20..4FC..(EFI,TWC)198801-198901

34618PLATE, OVERDRIVE DIRECT CLUTCH CUSHION

main34618-30010iGZ20..4FC..(EFI,TWC)198801-198901

34622PISTON, OVERDRIVE BRAKE

main34622-14010iMZ2#..4FC198801-199104

main34622-30030iGZ20..4FC..TWT198801-199104

main34622-30040iGZ20..4FC..(EFI,TWC)198801-198901

main34622-35010iGZ20..4FC..TWC198901-199104

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGZ20..4FC..(EFI,TWC)198801-198901

main90301-99009iGZ20..4FC..(EFI,TWC)198801-198901

main90301-99035iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

main90301-99037iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iGZ20..4FC..HTWC198901-199104

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-11023×12iGZ20..4FC..EFI; GZ20..4FC..TWC198801-198901

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004×2iGZ20..4FC..(EFI,TWC)198801-198901

34624HUB, OVERDRIVE BRAKE

main34624-32010iGZ20..4FC..HTWC198901-199104

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-26010iGZ20..4FC..HTWC198901-199104

main34625-30030iGZ20..4FC..TWC; GZ20..4FC..TWT198901-199104

main34625-30040iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

main34625-30050iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

main34625-30060iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

main34625-30070iGZ20,MZ2#..4FC..TWT198801-198901

main34625-30080iGZ20,MZ2#..4FC..TWT198801-198901

main34625-30090iGZ20,MZ2#..4FC..TWT198801-198901

main34625-30100iMZ2#..4FC198801-199104

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iGZ20..4FC..HTWC198901-199104

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iGZ20..4FC..(EFI,TWC)198801-198901

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iGZ20..4FC..(EFI,TWC)198801-198901

main34710-22030iGZ20..4FC..(TWC,TWT)198901-199104

main34710-22040iGZ20..4FC..HTWC198901-199104

main34710-30030iGZ20,MZ2#..4FC..TWT198801-198901

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iGZ20..4FC..(EFI,TWC)198801-198901

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iGZ20..4FC..(EFI,TWC)198801-198901

CTR

main34739-30041iGZ20..4FC..(EFI,TWC)198801-198901

main34789-30031iGZ20..4FC..HTWC198901-199104

CTR

main35789-22010iGZ20..4FC..HTWC198901-199104

T=4.3,RR

main35789-30050iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGZ20..4FC..HTWC198801-199104

RR

main90374-24001iGZ20..4FC..(EFI,TWC)198801-198901

CTR

main90374-25005iGZ20,MZ2#..4FC..TWT198801-198901

main90374-28008×2iGZ20,MZ2#..4FC..TWT198801-198901

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4iGZ20..4FC..(EFI,TWC)198801-198901

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024×4iGZ20..4FC..(EFI,TWC)198801-198901

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30020iGZ20..4FC..(EFI,TWC)198801-198901

main34713-32010iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-30030iGZ20..4FC..(EFI,TWC)198801-198901

main35791-30040iGZ20,MZ2#..4FC..TWT198801-198901

main35791-50010iGZ20,MZ2#..4FC..(TWC,TWT)198907-199104

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iGZ20..4FC..HTWC198901-199104

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGZ20..4FC..(EFI,TWC)198801-198901

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30020iGZ20..4FC..(EFI,TWC)198801-198901

main34737-30030iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30020iGZ20..4FC..HTWC198901-199104

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGZ20..4FC..HTWC198901-199104

FR

main35789-22030iGZ20..4FC..(EFI,TWC)198801-198901

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGZ20..4FC..(EFI,TWC)198801-198901

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iGZ20..4FC..HTWC198901-199104

main35617-30020×2iGZ20..4FC..(TWC,TWT); MZ2#..4FC198901-199104

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34616-30010×2iGZ20,MZ2#..4FC..TWT198801-198901

main34634-30010×3iGZ20..4FC..TWC198801-198901

main35634-30080×3iGZ20..4FC..EFI; GZ20..4FC..TWC198801-198901

35675HFLANGE, REAR CLUTCH (FOR OVERDRIVE)

main35675-22010iGZ20..4FC..HTWC198901-199104

T=4.0

35677GDISC, CLUTCH, NO.3 (FOR OVERDRIVE)

main35677-30030iGZ20..4FC..HTWC198901-199104

AISIN AW

main35677-30040×3iGZ20..4FC..(EFI,TWC)198801-198901

37 parts on this diagram · 2 diagrams in section
