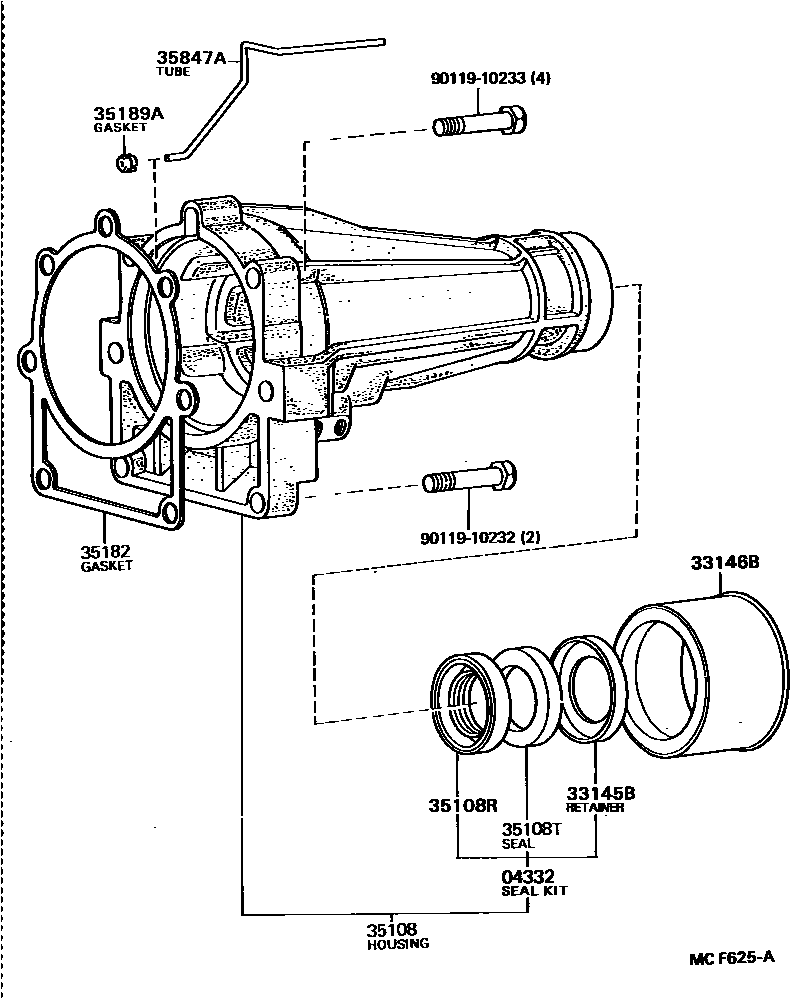

EXTENSION HOUSING (ATM)

0001 1A42DL,A42DE 0002 1A340E

04332SEAL KIT, OIL(FOR AUTOMATIC EXTENSION HOUSING)

main04332-30020iGZ20..4FC..TWC198801-198901

main04332-30030iGZ20..4FC..VX198801-199104

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iGZ20..4FC..(EFI,TWC)198801-198901

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30010iMZ2#..4FC;GZ20..4FC..HTWC199008-199104

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-20060iGZ20..4FC..VX198807-199104

main35108-22034iGZ20..4FC..EFI198801-198807

main35108-24011iGZ20..4FC..TWC198801-198807

main35108-24012iGZ20..4FC..TWC198807-198901

main35108-24020iGZ20,MZ2#..4FC..TWT198801-198807

main35108-24021iGZ20,MZ2#..4FC..(TWC,TWT)198901-199104

main35108-24030iGZ20..4FC..TWC198801-198807

main35108-24031iGZ20..4FC..TWC198807-198901

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38030iGZ20..4FC..HTWC198901-199104

main90311-38040iGZ20..4FC..(EFI,TWC)198801-198804

main90311-40001iGZ20,MZ2#..4FC..(TWC,TWT)198901-199104

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iGZ20..4FC..(EFI,TWC)198801-198901

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iMZ2#..4FC199012-199104

main35182-28010iGZ20..4FC199012-199104

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGZ20,MZ2#..4FC198801-199104

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGZ20,MZ2#..4FC198801-199104

9011910232

main90119-10232

9011910233

main90119-10233

11 parts on this diagram · 2 diagrams in section
