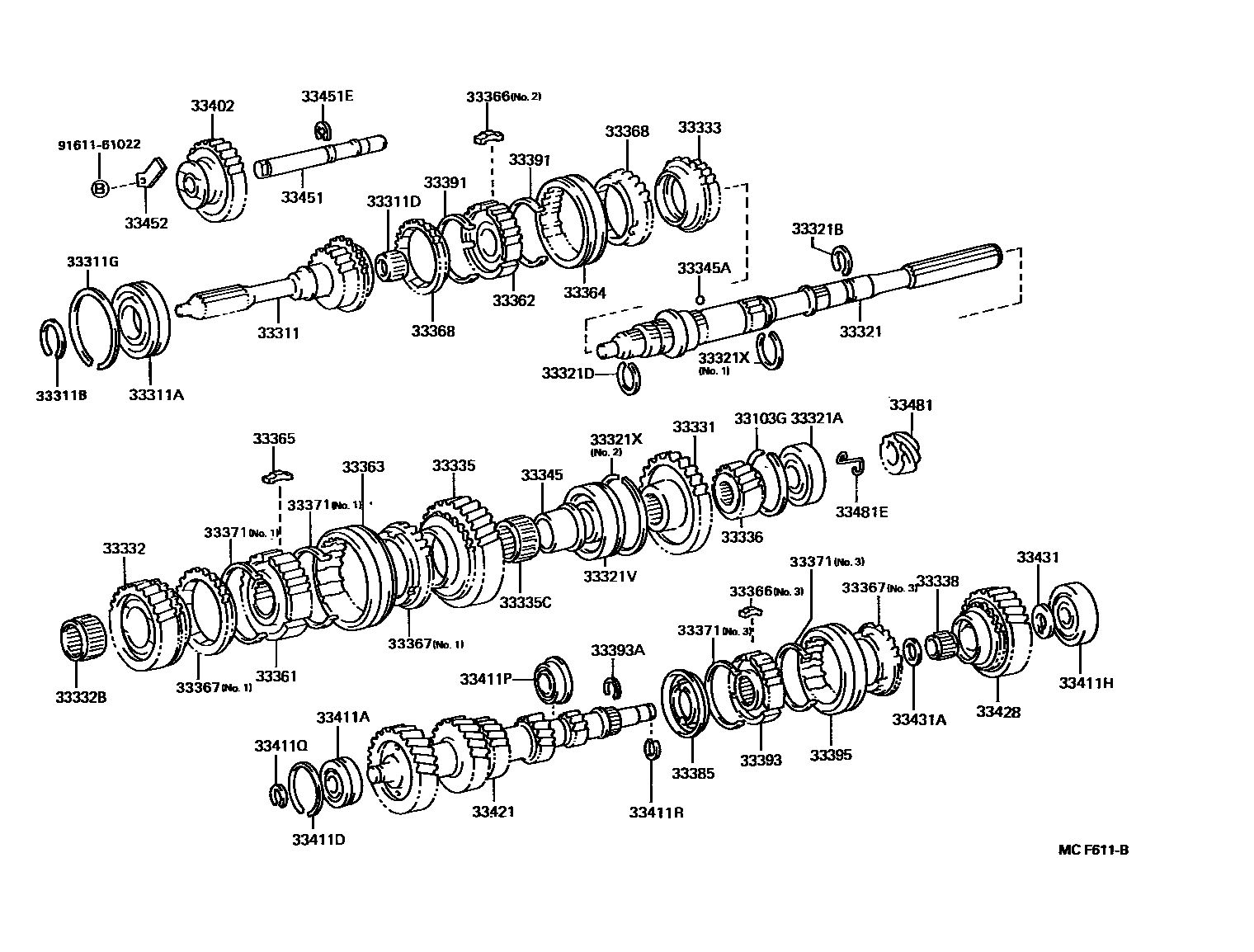

TRANSMISSION GEAR (MTM)
33103GRING, HOLE SNAP(FOR REAR BEARING SET)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33338BUSH OR BEARING, 5TH GEAR
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
NO.3 HUB
NO.2 HUB
33367RING, SYNCHRONIZER, NO.1
NO.3 HUB
NO.1 HUB
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
NO.3 HUB
NO.1 HUB
33385RETAINER, SHIFTING KEY
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33421GEAR, COUNTER
33428GEAR, COUNTERSHAFT 5TH
33431SPACER, COUNTER GEAR, NO.1
33431ASPACER, COUNTER GEAR, NO.2
33451SHAFT, REVERSE IDLER GEAR
33451ERING, E (FOR REVERSE IDLER GEAR SHAFT)
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481ECLIP (FOR SPEEDOMETER DRIVE GEAR)
9161161022
main91611-61022
53 parts on this diagram · 2 diagrams in section
