TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

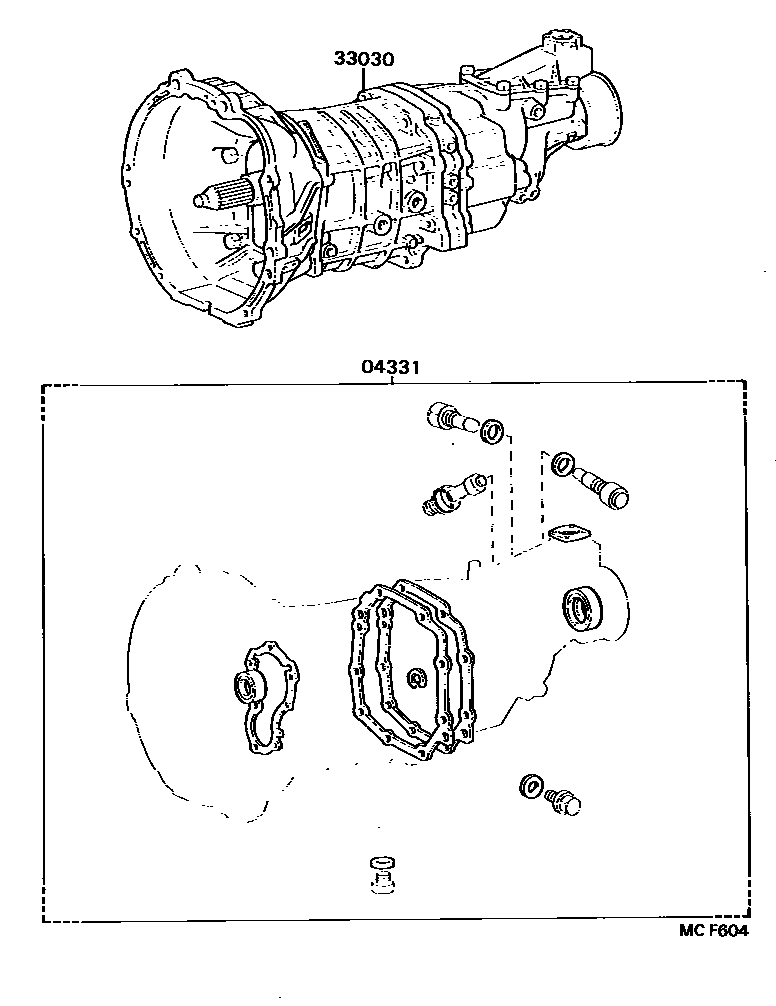

Parts diagram
04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL
main04331-14040i198801-199104
main04331-20050i198801-198808
main04331-22040i198808-199104
33030TRANSMISSION UNIT ASSY, MANUAL
main33030-1B041i198801-199104
sub33030-1B042
sub90331-18001
sub90461-08365
main33030-1B051i198801-199104
sub33030-1B042
sub89544-14020
sub90461-08365
sub91651-60820
main33030-24050i198801-199104
main33030-24060i198801-199104
main33030-24070i198801-199104
main33030-24080i198801-199104
main33030-24090i198901-199104
main33030-3A340i198801-199104
sub33030-3A390

2 parts on this diagram · 2 diagrams in section
