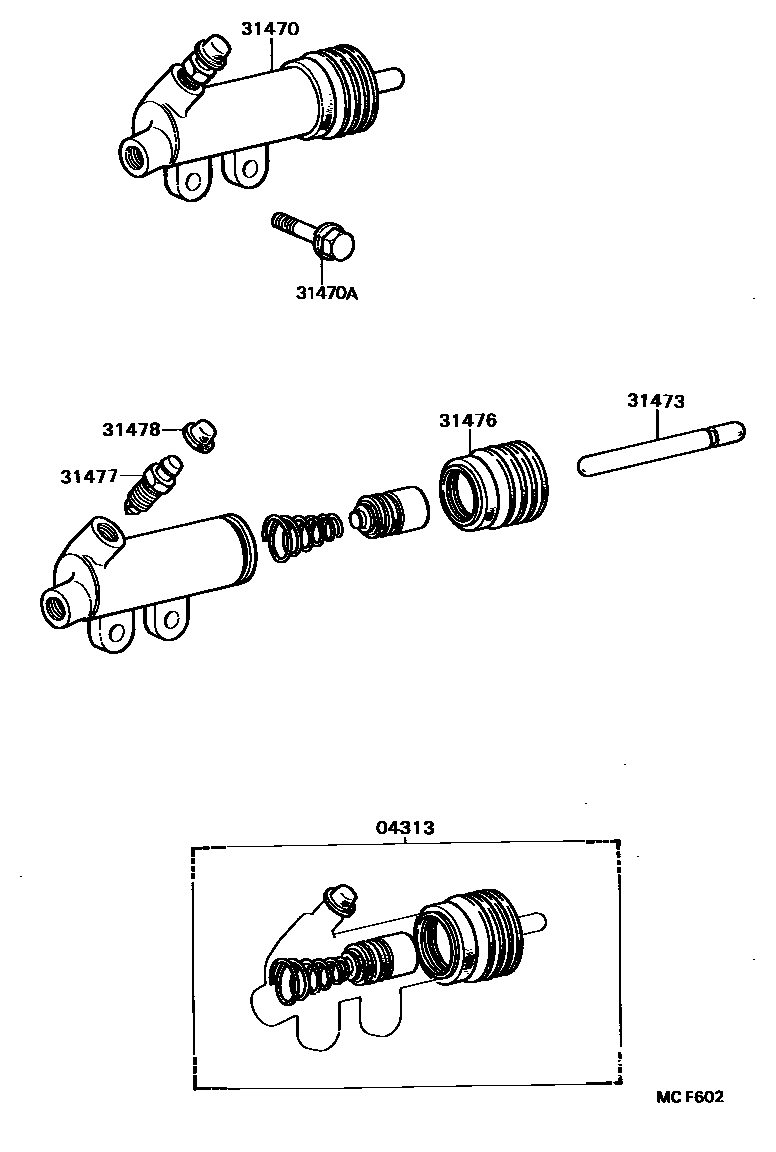

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iGZ20..5F198808-199103

main04313-14010iMZ2#..5F198801-199104

sub04313-14011

main04313-17010iGZ20..5F..(HTWC,TWC)199103-199104

main04313-22020iGZ20..5F198801-198808

main04313-22030iGZ20..5F..TWT199103-199104

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14050iMZ2#..5F198801-199104

main31470-22100iGZ20..5F..TWT198808-199103

main31470-22101iGZ20..5F..TWT199103-199104

main31470-22140iGZ20..5F..(HTWC,TWC)199103-199104

main31470-30220iGZ20..5F198801-198806

main31470-30221iGZ20..5F198806-198808

sub31470-30222

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iMZ2#..5F198801-199104

main91611-60825×2iGZ20..5F198801-199104

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14020iMZ2#..5F198801-199104

main31473-22010iGZ20..5F198801-199103

main31473-22030iGZ20..5F..TWT199103-199104

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGZ20,MZ2#..5F198801-199104

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGZ20,MZ2#..5F198801-199104

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGZ20,MZ2#..5F198801-199104

7 parts on this diagram · 2 diagrams in section
