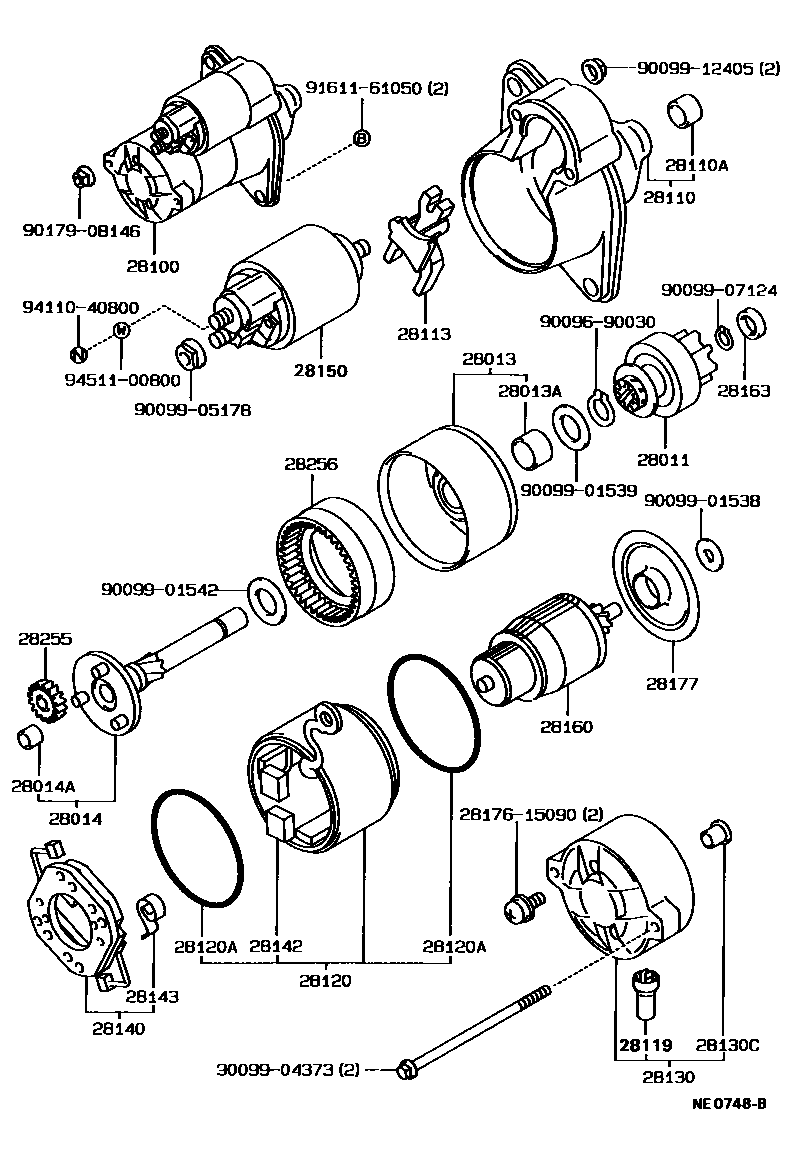

STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0003 112V 1.0KW 0004 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i7MGTEU..MZ2#198801-199104

main28011-70020i1GEU,1GFE,1GG#..GZ20198801-199104

main28011-76070i7MGTEU..MZ2#199008-199104

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i1GEU,1GFE,1GG#..GZ20198801-199104

sub28013-70030

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i1GEU,1GFE,1GG#..GZ20198801-199104

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i1GEU,1GFE,1GG#..GZ20198801-199104

28100STARTER ASSY

main28100-15040i1GEU,1GFE,1GG#..GZ20198801-199104

main28100-41060i7MGTEU..MZ2#198801-199003

sub28100-45050

main28100-42040i7MGTEU..MZ2#199004-199104

sub28100-46100

main28100-45050i7MGTEU..MZ2#198801-199008

main28100-46090i7MGTEU..MZ2#199008-199104

sub28100-46100

main28100-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GEU,1GFE,1GG#..GZ20198801-199104

main28110-41060i7MGTEU..MZ2#198801-199104

main28110-45050i7MGTEU..MZ2#198801-199008

main28110-46090i7MGTEU..MZ2#199008-199104

main28110-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28110ABEARING(FOR STARTER HOUSING)

main90099-10182i1GEU,1GFE,1GG#..GZ20198801-199104

28113LEVER, STARTER PINION DRIVE

main28113-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28119COVER, STARTER END FRAME

main28199-15090i7MGTEU..MZ2#198801-199008

main28199-46080i7MGTEU..MZ2#199008-199104

main28199-70020i1GEU,1GFE,1GG#..GZ20198801-198908

sub28199-46080

main28199-70021i1GFE,1GG#..GZ20198908-199008

sub28199-46080

28120YOKE ASSY, STARTER

main28120-15090i7MGTEU..MZ2#198801-199008

main28120-26071i7MGTEU..MZ2#198801-199104

main28120-70020i1GEU,1GFE,1GG#..GZ20198801-199104

main28120-74070i7MGTEU..MZ2#199008-199104

28120ARING, O(FOR STARTER YOKE)

main90099-14064i7MGTEU..MZ2#198801-199104

main90099-14092i1GEU,1GFE,1GG#..GZ20198801-199104

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i7MGTEU..MZ2#198801-199104

main28130-15040i1GEU,1GFE,1GG#..GZ20198801-199104

main28130-15090i7MGTEU..MZ2#198801-199008

main28130-46090i7MGTEU..MZ2#199008-199104

main28130-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28130CBEARING, STARTER FLANGE

main90099-10183i1GEU,1GFE,1GG#..GZ20198801-199104

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i7MGTEU..MZ2#198801-199008

main28140-26070i7MGTEU..MZ2#198801-199104

main28140-70020i1GEU,1GFE,1GG#..GZ20198801-199104

main28140-76070i7MGTEU..MZ2#199008-199104

28142BRUSH, STARTER

main28142-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28143SPRING, STARTER BRUSH

main28143-70020i1GEU,1GFE,1GG#..GZ20198801-199104

main90099-17112i1GEU,1GFE,1GG#..GZ20198801-199104

28150SWITCH ASSY, MAGNET STARTER

main28150-15070i1GEU,1GFE,1GG#..GZ20198801-199104

main28150-41060i7MGTEU..MZ2#198801-199104

main28150-45050i7MGTEU..MZ2#198801-199008

main28150-46080i1GFE,1GG#..GZ20199008-199104

main28150-46090i7MGTEU..MZ2#199008-199104

sub28150-46120

main28150-70020i1GEU,1GFE,1GG#..GZ20198801-199008

sub28150-46080

28160ARMATURE ASSY, STARTER

main28160-15090i7MGTEU..MZ2#198801-198908

sub28160-15091

main28160-15091i7MGTEU..MZ2#198908-199008

main28160-26070i7MGTEU..MZ2#198801-198908

sub28160-26071

main28160-26071i1GFE,1GG#..GZ20198908-199104

main28160-70020i1GEU,1GG#..GZ20198801-198901

sub28160-70021

main28160-70021i1GFE,1GG#..GZ20198901-199104

main28160-74070i7MGTEU..MZ2#199008-199104

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28255GEAR, PLANET

main28255-70020i1GEU,1GFE,1GG#..GZ20198801-199104

28256GEAR, STARTER INTERNAL

main28256-70020i1GEU,1GFE,1GG#..GZ20198801-199104

2817615090SCREW, STARTER

main28176-15090

3009904373

main30099-04373

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

36 parts on this diagram · 4 diagrams in section
