Toyota SOARER — IGNITION COIL & SPARK PLUG / GLOW PLUG

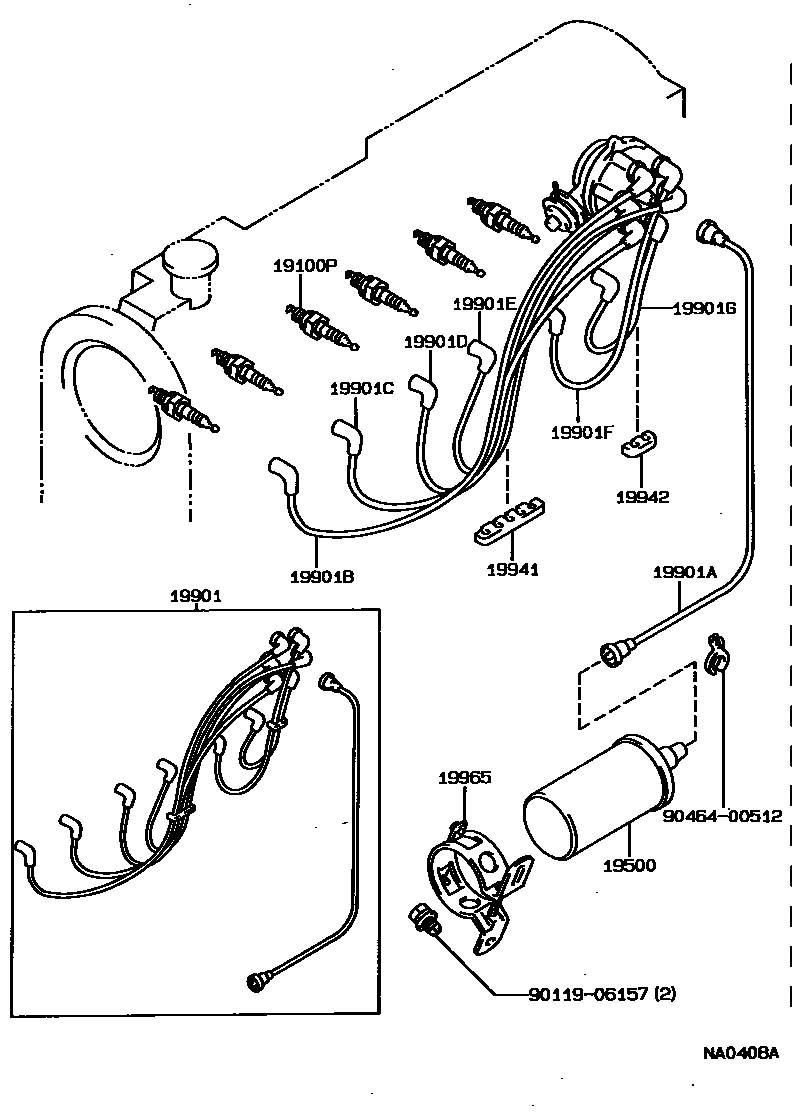

Parts diagram

19100PPLUG, SPARK

19500COIL ASSY, IGNITION

19901ACORD, COIL RESISTIVE

19901BCORD, SPARK PLUG RESISTIVE, NO.1

19901CCORD, SPARK PLUG RESISTIVE, NO.2

19901DCORD, SPARK PLUG RESISTIVE, NO.3

19901ECORD, SPARK PLUG RESISTIVE, NO.4

19901FCORD, SPARK PLUG RESISTIVE, NO.5

19901GCORD, SPARK PLUG RESISTIVE, NO.6

19941CLAMP, RESISTIVE CORD, NO.1

19942CLAMP, RESISTIVE CORD, NO.2

19965BAND, IGNITION COIL, NO.1

9011906157

9046400512

15 parts on this diagram · 5 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota SOARER

This section contains 36 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota SOARER. Key components include: COIL ASSY, W/BRACKET & CORD, BUSH(FOR IGNITION COIL BRACKET), SPACER(FOR IGNITION COIL BRACKET), PLUG, SPARK, COIL ASSY, IGNITION.
