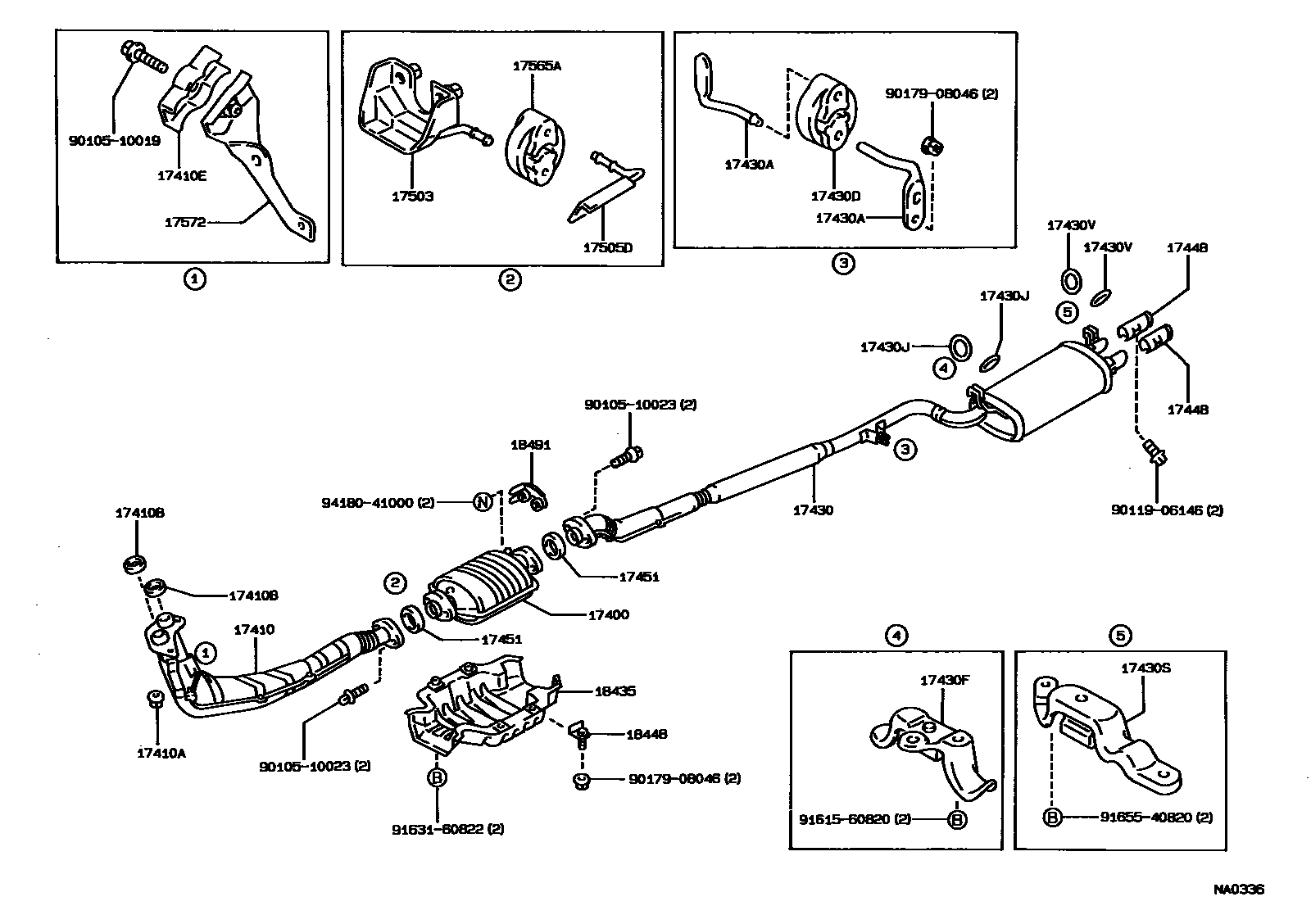

EXHAUST PIPE

0001 1 0002 1 0003 1

17400CONVERTER ASSY, W/CATALYST

main18450-42030i7MGTEU..MZ2#198801-199104

main18450-42090i1GGEU..GZ20198901-199104

main18450-70020i1GGTEU..GZ20198801-199104

main18450-70060i1GEU,1GGEU..GZ20198801-198901

main18450-70090i1GFE..GZ20198901-199104

17410PIPE ASSY, EXHAUST, FRONT

main17410-42020i7MGTEU..MZ2#198801-199104

main17410-70160i1GFE..GZ20198901-199104

main17410-70170i1GGTEU..GZ20198801-199104

main17410-70180i1GGEU..GZ20..4FC198801-198901

main17410-70220i1GGEU..GZ20198901-199104

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

17410BGASKET, EXHAUST PIPE

main90917-06004×2i1GEU,1GGEU..GZ20198801-198808

main90917-06013i1GGTEU,7MGTEU..GZ20,MZ2#198801-198808

main90917-06039×2i1GEU,1GFE,1GGEU..GZ20198808-199104

main90917-06050i1GGTEU,7MGTEU..GZ20,MZ2#198808-199104

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04041i1GEU..GZ20198801-198808

main90917-04060i1GFE,1GGEU..GZ20198910-199104

17430PIPE ASSY, EXHAUST, TAIL

main17430-42090i7MGTEU..MZ2#198801-198805

main17430-42091i7MGTEU..MZ2#198805-199002

main17430-42092i7MGTEU..MZ2#199002-199104

main17430-70320i1GEU..GZ20198801-198901

main17430-70330i1GGTEU..GZ20198801-199002

main17430-70331i1GGTEU..GZ20199002-199104

main17430-70360i1GGEU..GZ20198801-198901

main17430-70520i1GGEU..GZ20198901-199001

main17430-70521i1GGEU..GZ20199001-199104

main17430-70530i1GFE..GZ20198901-199001

main17430-70531i1GFE..GZ20199001-199104

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17561-70020i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198808-199104

LWR

main17572-70030i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

UPR

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-16020i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199012

main17565-46010i1GFE,1GG#,7MGTEU..GZ20,MZ2#199101-199104

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17508-13010i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-36001×2i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-26100i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-36001×2i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

17448BAFFLE, TAILPIPE

main17448-70100×2i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

17451GASKET, EXHAUST PIPE

main90917-06012i1GEU,1GGEU..GZ20198801-198808

RR

main90917-06023i1GEU,1GGEU..GZ20198801-198808

main90917-06031i1GGTEU,7MGTEU..GZ20,MZ2#198801-198808

main90917-06033i1GGTEU,7MGTEU..GZ20,MZ2#198801-198808

main90917-06041i1GEU,1GGEU..GZ20198808-198901

main90917-06043i1GGTEU,7MGTEU..GZ20,MZ2#198808-198901

main90917-06047i1GEU,1GGEU..GZ20198808-198901

main90917-06054i1GG#,7MGTEU..GZ20,MZ2#198901-199012

main90917-06062i1GFE..GZ20199012-199104

main90917-06072i1GG#,7MGTEU..GZ20,MZ2#199012-199104

17503BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR

main17503-42030i7MGTEU..MZ2#;1GGTEU..GZ20..4FC198801-198901

main17503-42031i7MGTEU..MZ2#;1GG#..GZ20..4FC198910-199104

main17503-70120i1GGTEU..GZ20..5F198801-198901

main17503-70121i1GG#..GZ20..5F198910-199104

main17503-70130i1GEU,1GGEU..GZ20..4FC198801-198901

main17503-70140i1GFE..GZ20..5F198901-199104

17505DBRACKET SUB-ASSY, CONVERTER SUPPORT, LH

main17505-42010i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-16020i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199101

main17565-46010i1GFE,1GG#,7MGTEU..GZ20,MZ2#199101-199104

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17571-42020i7MGTEU..MZ2#198801-199104

main17571-70030i1GEU,1GFE,1GGEU..GZ20198801-199104

main17571-70050i1GGTEU..GZ20198801-199104

18435PROTECTOR, CATALYTIC CONVERTER

main18407-42010i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

18448BRACKET, CONVERTER PROTECTOR, CENTER

main18448-43010×2i1GEU,1GFE,1GG#,7MGTEU..GZ20,MZ2#198801-199104

18491FLANGE, THERMOSENSOR INLET

main18491-63010i1GEU,1GG#,7MGTEU..GZ20,MZ2#198801-198808

9010510019

main90105-10019

9010510023

main90105-10023

9011906146

main90119-06146

9017908046

main90179-08046

9161560820

main91615-60820

9163160822

main91631-60822

9165540820

main91655-40820

9418041000

main94180-41000

29 parts on this diagram · 3 diagrams in section
