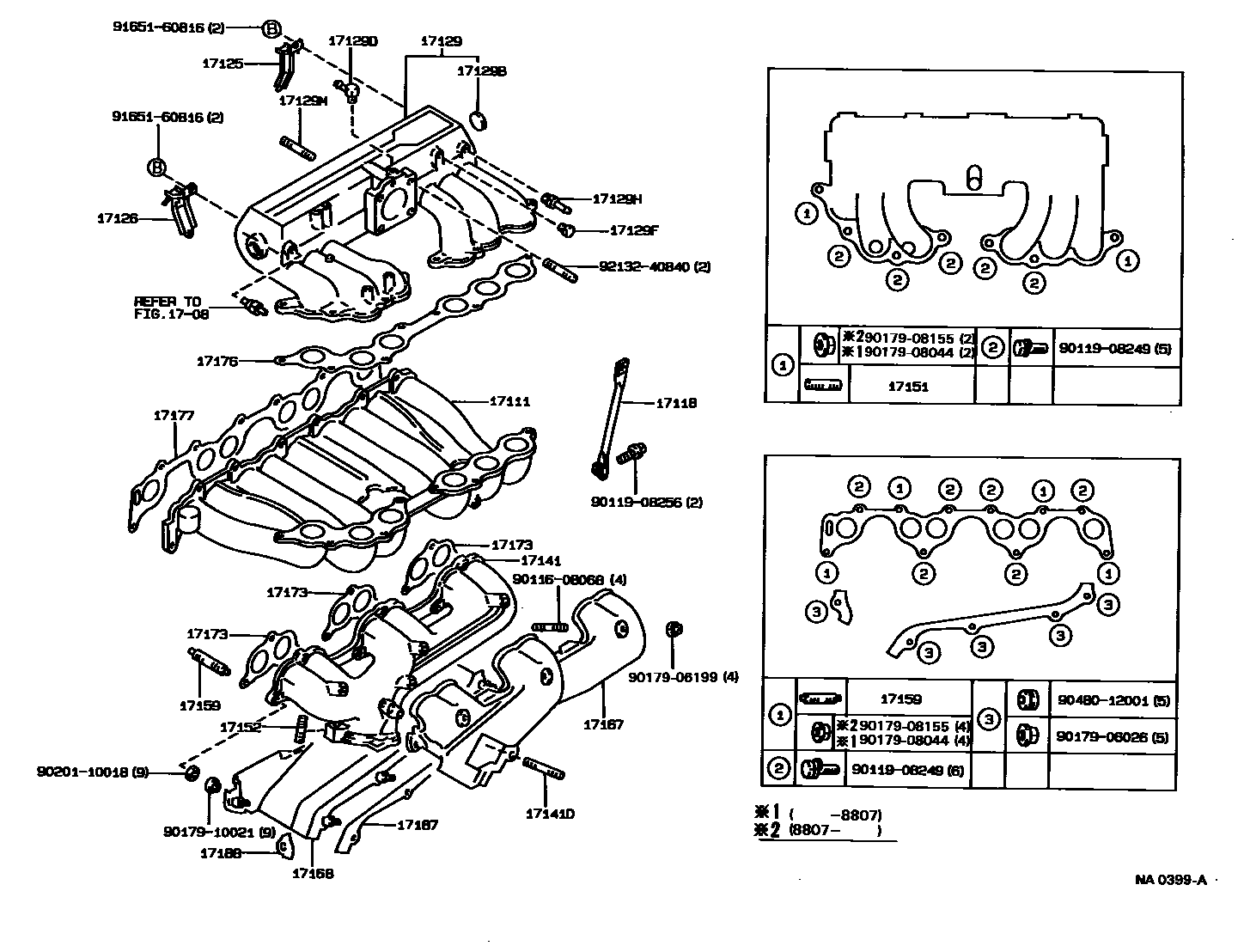

MANIFOLD
1708
17111MANIFOLD, INTAKE
*53
*54
*54
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17129TANK, INTAKE AIR SURGE
*54
*53
*54
17129BPLUG
*54
*53
17129DUNION, NO.2
17129FPLUG, INTAKE MANIFOLD SUCTION HOLE
17129HUNION, NO.4
17129MBOLT, STUD(FOR COLD START INJECTOR)
17141DBOLT, STUD(FOR OXYGEN SENSOR)
*53
*54
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
*53
*54
*53
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*54
*54
*53
17173GASKET, EXHAUST MANIFOLD TO HEAD
*53
*53
*54
17187GASKET, HEAT INSULATOR, NO.1
17188GASKET, HEAT INSULATOR, NO.2
9011608068
main90116-08068
9011908249
main90119-08249
9011908256
main90119-08256
9017906026
main90179-06026
9017906199
main90179-06199
9017908044
main90179-08044
9017908155
main90179-08155
9017910021
main90179-10021
9020110018
main90201-10018
9048012001
main90480-12001
9165160816
main91651-60816
9213240840
main92132-40840
35 parts on this diagram · 7 diagrams in section
