V-BELT

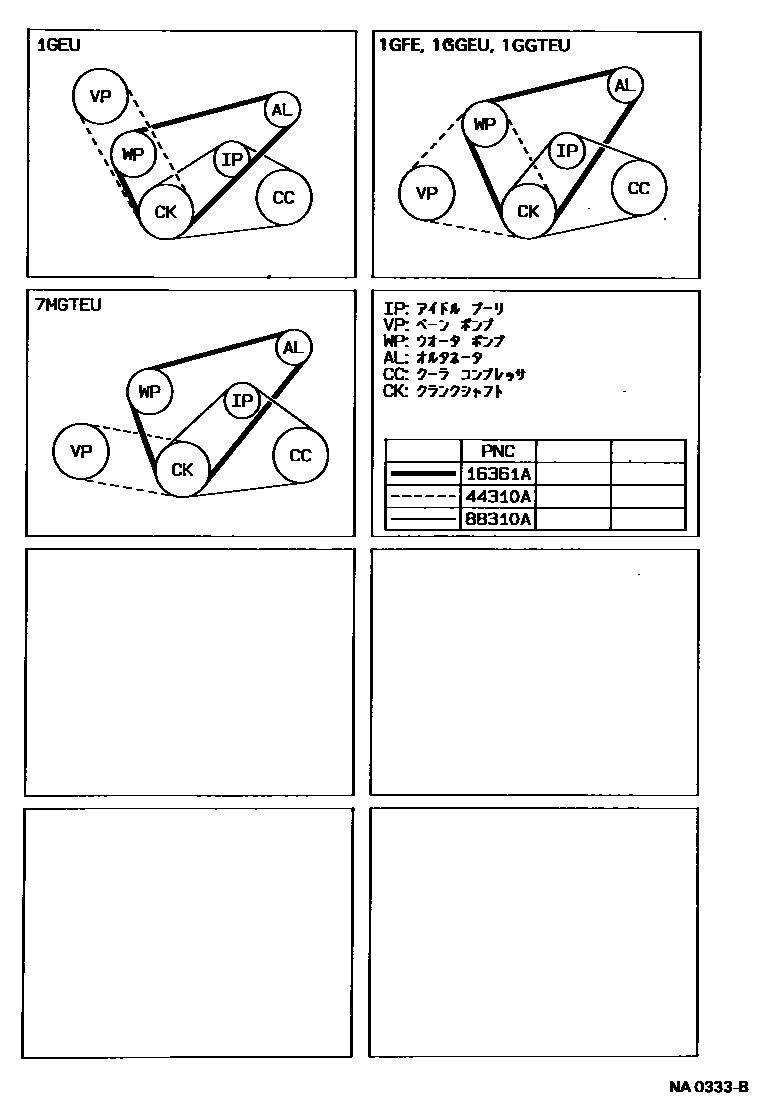

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main99364-01080i198901-199101

main99364-01100i198801-198901

main99364-21080i199101-199104

main99364-51160i198801-199104

main99364-51170i198801-199104

main99365-01290i198801-199104

44310ABELT, V(FOR VANE PUMP)

main90916-02200i198801-199104

main99332-01110i198801-198901

main99363-00960i198801-199104

main99363-00970i198801-199104

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-00850i198801-199104

main99364-00920i198801-199104

main99364-50840i198801-198901

3 parts on this diagram · 1 diagram in section
