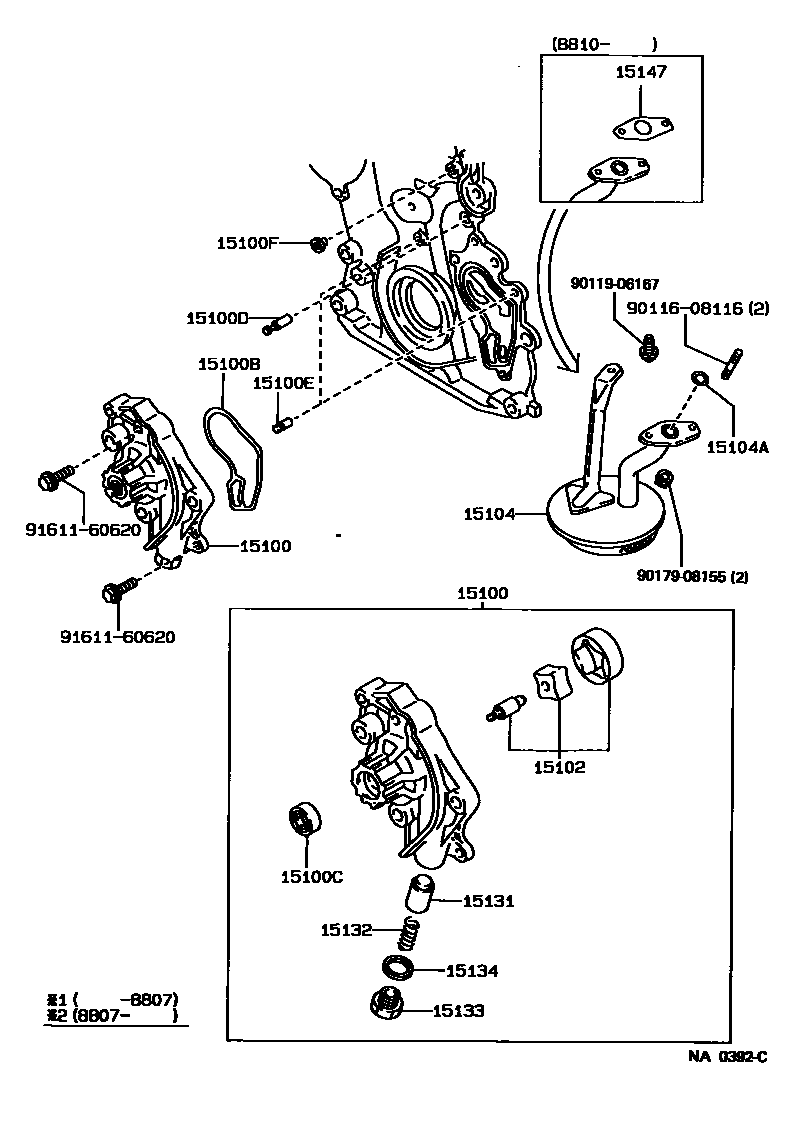

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-42020i7MGTEU..MZ2#198801-199007

main15100-42021i7MGTEU..MZ2#199007-199104

main15100-70011i1GEU..GZ20198801-198901

main15100-70030i1GFE..GZ20198901-199104

main15100-88300i1GGEU..GZ20198801-199104

main15100-88340i1GGTEU..GZ20198801-199104

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GEU,1GFE,1GG#..GZ20198801-199104

15100CSEAL(FOR OIL PUMP)

main15165-70010i1GEU,1GGEU..GZ20198801-199104

main90029-21005i1GFE..GZ20198901-199104

main90029-21007i1GGTEU..GZ20198801-199104

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GEU,1GFE,1GG#..GZ20198801-199104

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×3i1GEU,1GFE,1GGEU..GZ20; 1GGTEU..GZ20198801-199104

15100FBUSH (FOR OIL PUMP)

main90029-38300i1GEU,1GFE,1GG#..GZ20198801-198910

main90029-38302i1GFE,1GG#..GZ20198910-199104

15102ROTOR SET, OIL PUMP

main15102-70011i1GEU,1GFE..GZ20198801-199104

main15102-88300i1GGEU..GZ20198801-199104

main15102-88340i1GGTEU..GZ20198801-199104

15104STRAINER SUB-ASSY, OIL

main15104-42021i7MGTEU..MZ2#198801-199104

main15104-70030i1GEU,1GG#..GZ20198801-198810

*54

main15104-70050i1GFE,1GG#..GZ20198810-199104

*54

15104ARING, O(FOR OIL STRAINER)

main96721-19025i7MGTEU..MZ2#198801-199104

main96732-19020i1GEU,1GGEU..GZ20198810-198909

15131VALVE, OIL PUMP RELIEF

main15131-24010i1GEU,1GFE,1GG#..GZ20; 7MGTEU..MZ2#198801-199104

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GEU,1GFE,1GG#..GZ20198801-199104

main15132-46010i7MGTEU..MZ2#198801-199104

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1GEU,1GFE,1GG#..GZ20198801-199104

main15133-24010i7MGTEU..MZ2#198801-199104

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i1GEU,1GG#..GZ20198801-199104

main15134-70030i1GFE..GZ20198901-199104

15147GASKET, OIL STRAINER

main15147-70020i1GFE,1GGEU..GZ20198810-199009

*53

main15147-70021i1GFE,1GGEU..GZ20199009-199104

*53

9011608116

main90116-08116

9011906167

main90119-06167

9017908155

main90179-08155

9161160620

main91611-60620

18 parts on this diagram · 2 diagrams in section
