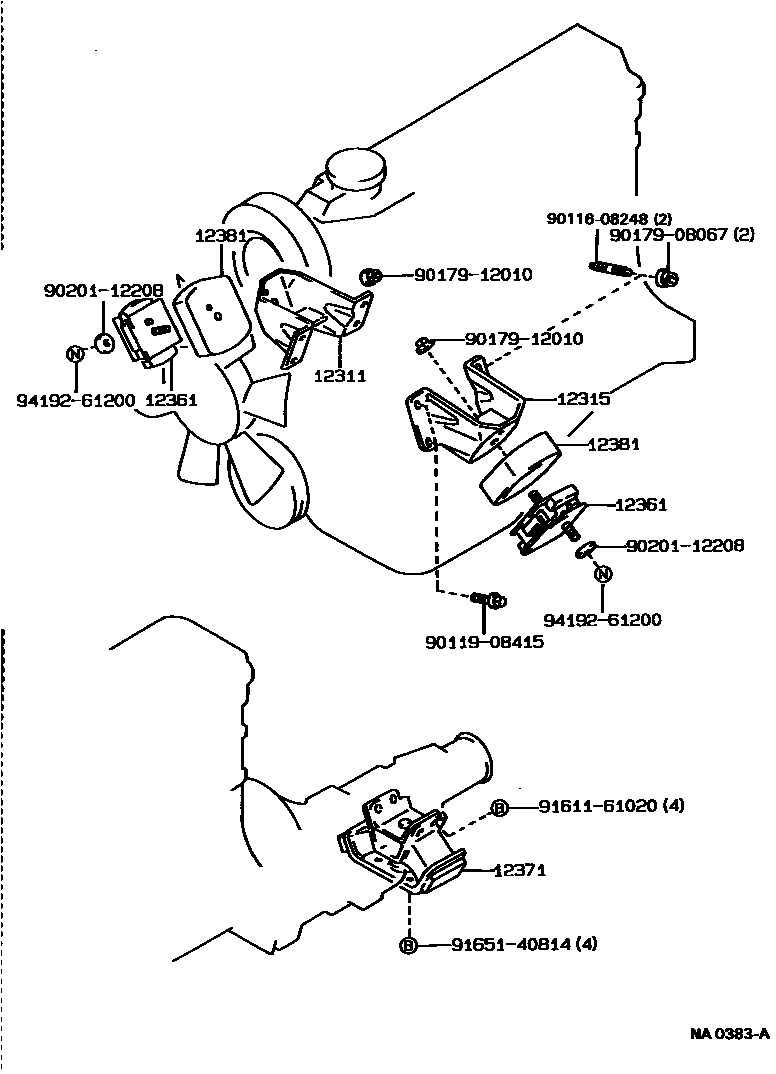

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-42020i7MGTEU..MZ2#198801-198901

main12311-42040i7MGTEU..MZ2#198901-199104

main12311-70070i1GEU..GZ20; 1GGEU..GZ20198801-198901

BLUE PAINT

main12311-70080i1GGEU..GZ20; 1GGTEU..GZ20198801-198901

WHITE PAINT

main12311-70110i1GFE,1GG#..GZ20198901-199104

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-42020i7MGTEU..MZ2#198801-198901

main12315-42040i7MGTEU..MZ2#198901-199104

main12315-70050i1GEU,1GG#..GZ20198801-198901

main12315-70080i1GFE,1GG#..GZ20198901-199104

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-42030×2i7MGTEU..MZ2#198801-198901

main12361-42050×2i1GFE,1GG#..GZ20; 7MGTEU..MZ2#198901-199104

main12361-70060×2i1GEU,1GG#..GZ20198801-198901

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-42020i1GG#..GZ20198812-198901

main12371-70020i7MGTEU..MZ2#198812-198901

12381STABILIZER, ENGINE MOUNTING

main12381-42010×2i1GEU,1GG#..GZ20; 7MGTEU..MZ2#198801-198901

main12381-42030×2i1GFE,1GG#..GZ20; 7MGTEU..MZ2#198901-199104

9011608248

main90116-08248

9011908415

main90119-08415

9017908067

main90179-08067

9017912010

main90179-12010

9020112208

main90201-12208

9161161020

main91611-61020

9165140814

main91651-40814

9419261200

main94192-61200

13 parts on this diagram · 6 diagrams in section
