SHORT BLOCK ASSEMBLY

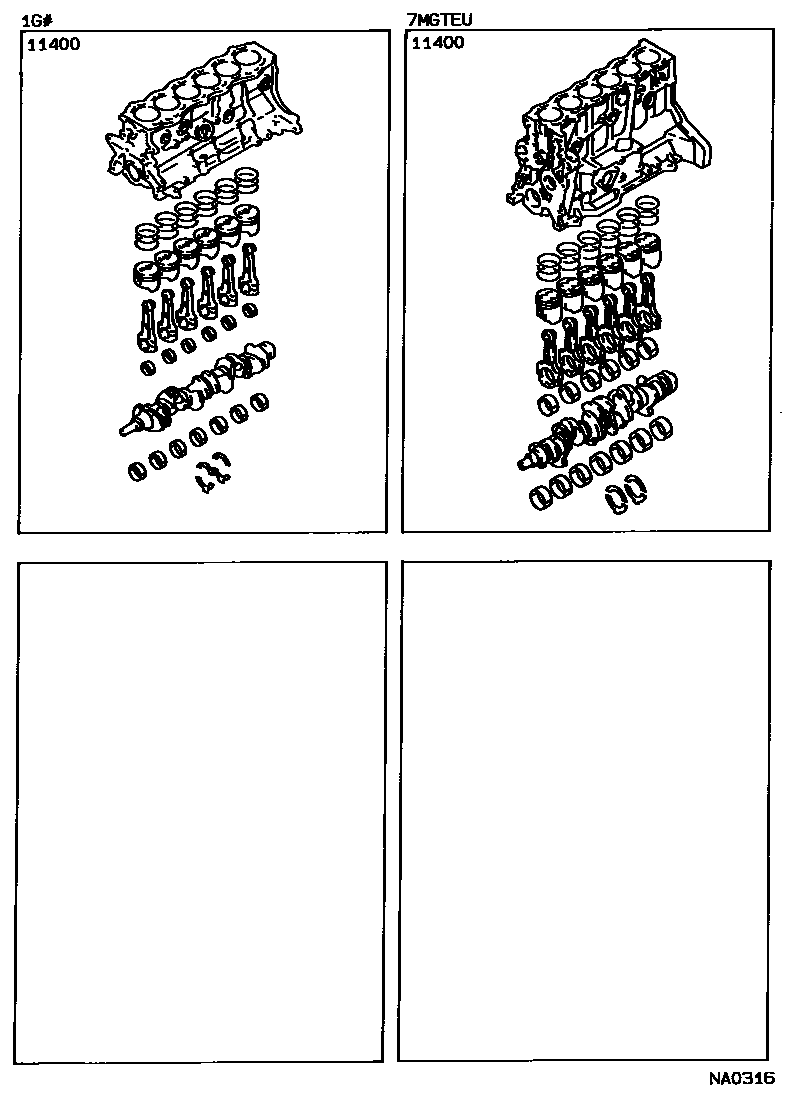

Parts diagram

11400BLOCK ASSY, SHORT

main11400-42100i198801-198903

main11400-42101i198903-198908

main11400-42102i198908-199104

main11400-70012i198801-198807

main11400-70013i198807-198901

main11400-70060i198801-198805

main11400-70061i198805-198807

main11400-70062i198807-198901

main11400-70070i198901-199104

main11400-70090i198901-199104

main11400-88351i198801-198808

main11400-88352i198808-199104

1 parts on this diagram · 1 diagram in section
