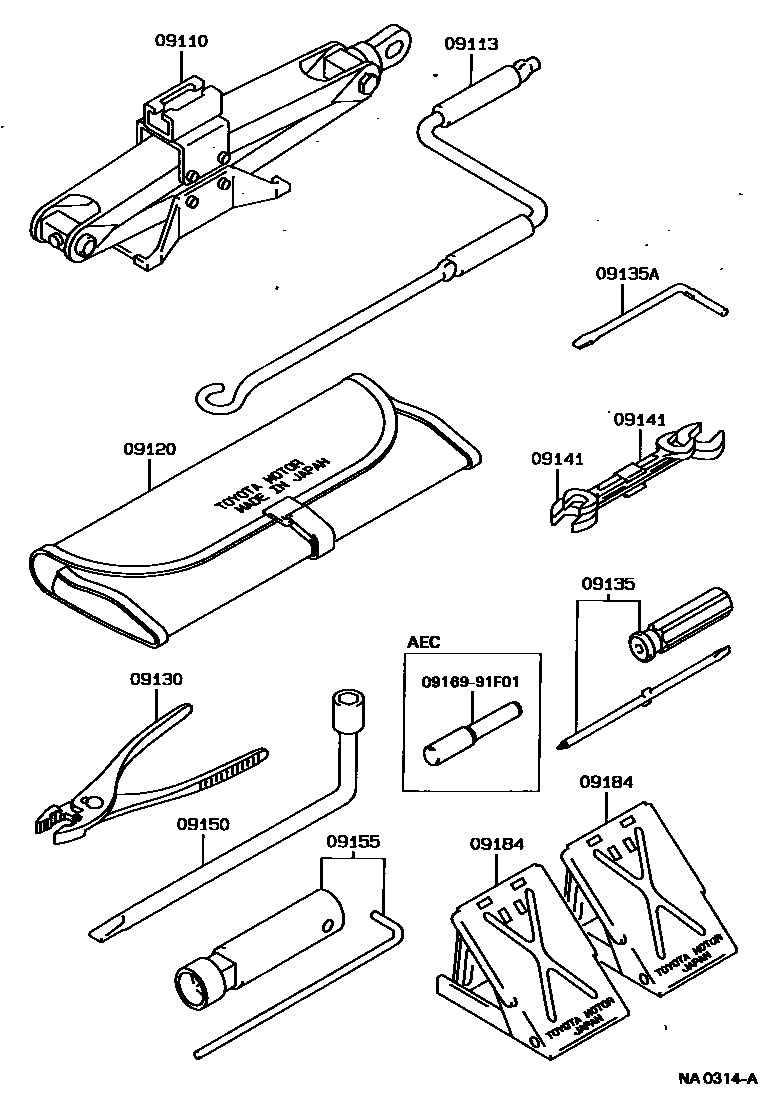

STANDARD TOOL

09110JACK ASSY

main09111-24040iGZ20,MZ2#198801-199104

09113HANDLE, JACK

main09113-24020iGZ20,MZ2#198801-199104

sub09113-14030

09120BAG, TOOL

main09120-12011iGZ20,MZ2#198801-199104

09130PLIERS

main99913-11500iGZ20,MZ2#198801-199104

09135DRIVER, SCREW

main99915-10700iGZ20,MZ2#198801-199104

09135ABIT, SCREW DRIVER

main09135-00012iGZ20,MZ2#..CP198801-199104

09141SPANNER

main99914-10810iGZ20,MZ2#198801-199104

main99914-11214iGZ20,MZ2#198801-199104

09150WRENCH, HUB NUT BOX

main09150-40010iGZ20,MZ2#198801-199104

09155WRENCH, SPARK PLUG

main09155-00100iMZ2#;GZ20..TWC198801-199104

main09155-41010iGZ20..EFI198801-198901

main09155-70020iGZ20..TWT198801-199104

main09155-74010iGZ20..HTWC198901-199104

09184STOPPER, WHEEL

main09184-00010iGZ20,MZ2#198801-199104

0916991F01HANDLE, ROOF PANEL

main09169-91F01

11 parts on this diagram · 1 diagram in section
