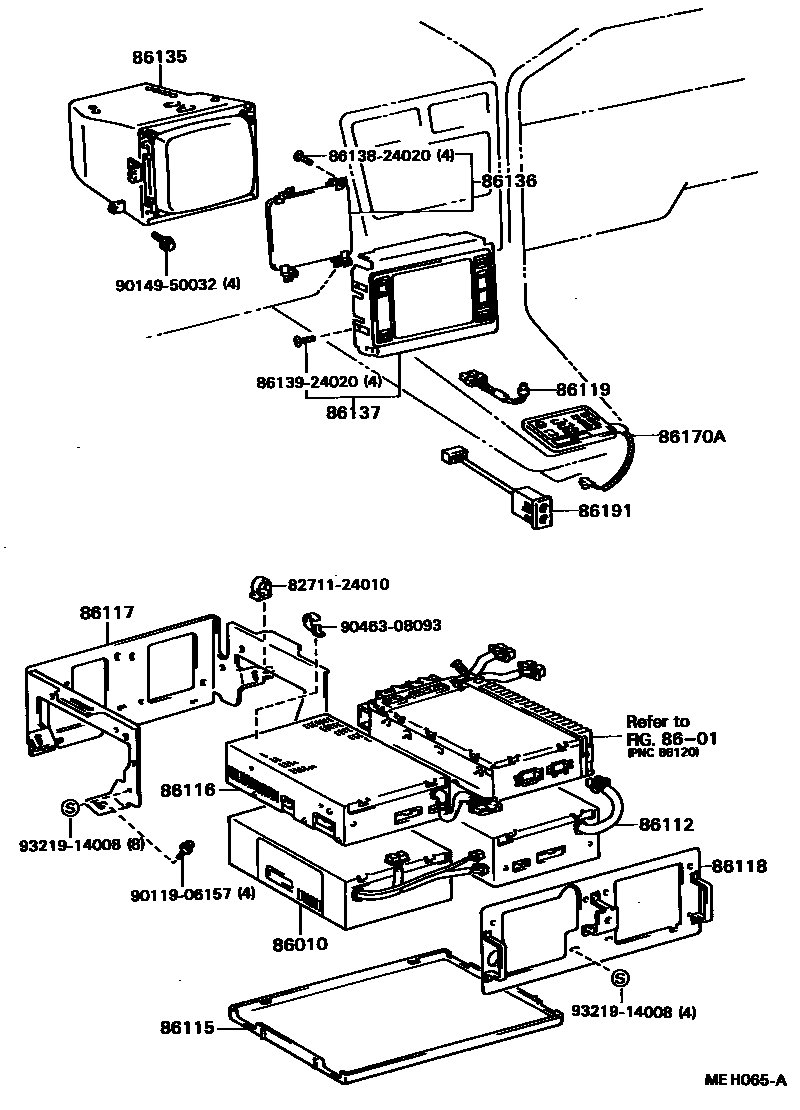

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86010TUNER ASSY, TELEVISION

main86010-24020iMZ2#..GTL198601-198801

86112COMPUTER, MULTI-DISPLAY (COMPUTER CRT DISPLAY)

main86112-24020iMZ2#..4FC..GTL198601-198801

main86112-24040iMZ2#..5F..GTL198701-198801

86115TRAY, MULTI-DISPLAY COMPUTER

main86115-24020iMZ2#..GTL198601-198801

86116CONTROLLER, VIDEO

main86116-24020iMZ2#..GTL198601-198801

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-24020iMZ2#..GTL198601-198801

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-24020iMZ2#..GTL198601-198801

86119WIRE, TELEVISION SWITCH

main86119-24020iMZ2#..GTL198601-198801

86135MULTI-DISPLAY (CRT DISPLAY)

main86135-24020iMZ2#..GTL198601-198801

86136FILTER, MULTI-DISPLAY

main86136-24020iMZ2#..GTL198601-198801

86137PANEL, MULTI-DISPLAY

main86137-24020iMZ21198601-198801

main86137-24030iMZ20..GTL198601-198801

86170ASWITCH & VOLUME ASSY

main86170-24020iMZ2#..GTL198601-198801

86191TERMINAL, VIDEO(VIDEO ADAPTER)

main86191-24010iMZ2#..GTL198601-198801

8271124010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24010

8613824020

main86138-24020

8613924020

main86139-24020

9011906157

main90119-06157

9014950032

main90149-50032

9046308093

main90463-08093

9321914008

main93219-14008

20 parts on this diagram · 1 diagram in section
