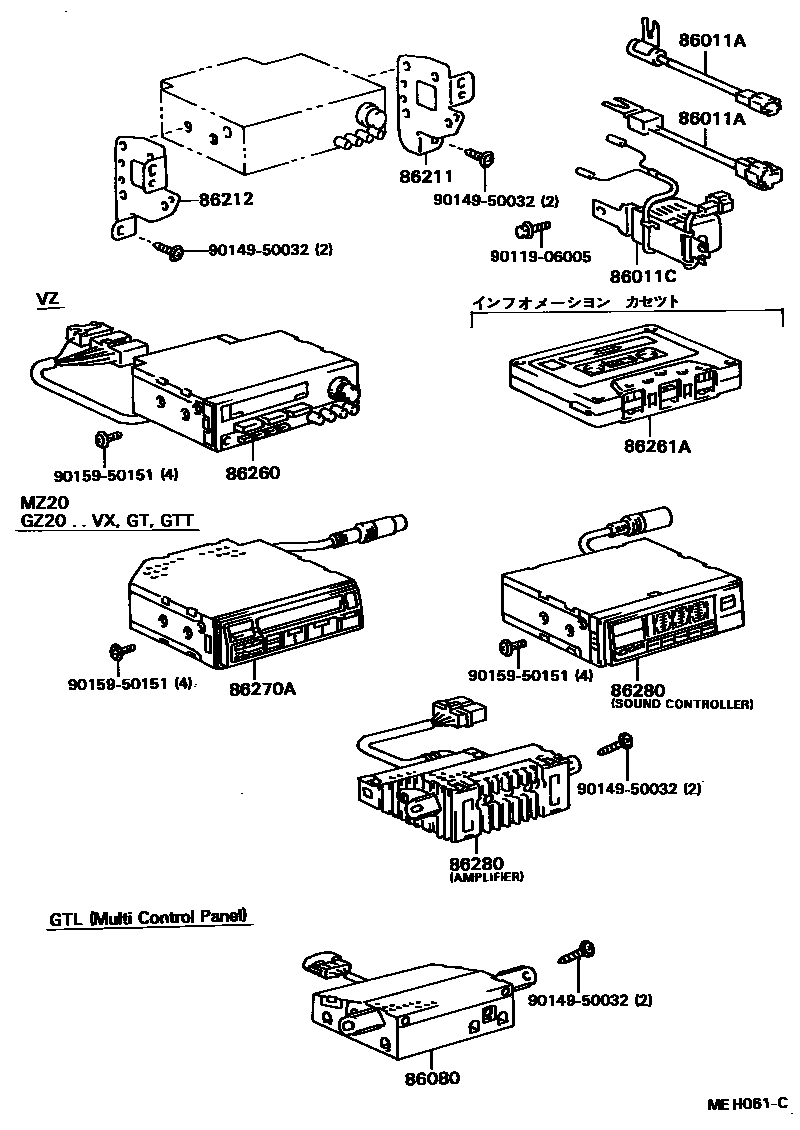

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04023iGZ20,MZ2#198601-198705

COWL

main90980-04041iGZ20,MZ2#198601-198801

ENGINE ROOM

main90980-04043iGZ20,MZ2#198705-198801

COWL

86011CFILTER, NOISE

main90980-05115iGZ20,MZ2#198601-198801

86080POWER SUPPLY ASSY

main86080-24010iMZ2#..GTL198601-198801

86211BRACKET, RADIO, NO.1

main86211-24020iGZ20,MZ20198601-198801

86212BRACKET, RADIO, NO.2

main86212-24020iGZ20,MZ20198601-198801

86260TAPE PLAYER ASSY

main86260-22190iGZ20..VZ198601-198801

86261ACASSETTE, INFORMATION

main01997-24001iMZ20198601-198801

CASSETTE TAPE(W/O CRT DISPLAY)

main86261-24020iMZ2#..GTL198601-198801

VISUAL CASSETTE(W/CRT DISPLAY)

86270ADISC PLAYER ASSY

main86270-24010iMZ20198601-198701

main86270-24011iGZ20..GT,GTT,VX; MZ20198701-198801

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-24010iMZ20198601-198701

AMPLIFIER

main86280-24011iGZ20..GT,GTT,VX; MZ20198701-198801

AMPLIFIER

main86280-24020iMZ20198601-198801

SOUND CONTROLLER

9011906005

main90119-06005

9014950032

main90149-50032

9015950151

main90159-50151

12 parts on this diagram · 2 diagrams in section
