REAR WASHER

85034RWIRE, REAR WASHER

main85034-14680iGZ20,MZ2#..GT,GTL,GTT198601-198801

85310RMOTOR ASSY, REAR WASHER

main85310-22080iGZ20,MZ2#..GT,GTL,GTT198601-198801

85330SBUSH, REAR WASHER JAR

main90099-32089iGZ20,MZ2#..GT,GTL,GTT198601-198801

85345RNOZZLE, REAR WASHER

main85035-24050iGZ20,MZ2#..GT,GTL,GTT198601-198801

RH

main85035-24060iGZ20,MZ2#..GT,GTL,GTT198601-198801

LH

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iGZ20,MZ2#..GT,GTL,GTT198601-198801

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iGZ20,MZ2#..GT,GTL,GTT198705-198801

main85355-20070iGZ20,MZ2#..GT,GTL,GTT198601-198705

85348TJOINT, REAR WASHER HOSE, NO.2

main85348-24030iGZ20,MZ2#..GT,GTL,GTT198601-198801

85355RVALVE, REAR WASHER HOSE

main85031-30010×2iGZ20,MZ2#..GT,GTL,GTT198602-198801

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iGZ20,MZ2#..GT,GTL,GTT198601-198602

85372DGROMMET, REAR WASHER HOSE

main85356-24010iGZ20,MZ2#..GT,GTL,GTT198601-198801

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33533iGZ20,MZ2#..GT,GTL,GTT198601-198602

main90099-33553iGZ20,MZ2#..GT,GTL,GTT198602-198801

main90446-07001iGZ20,MZ2#..GT,GTL,GTT198602-198801

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2iGZ20,MZ2#..GT,GTL,GTT198601-198801

9046306097

main90463-06097

9046709043

main90467-09043

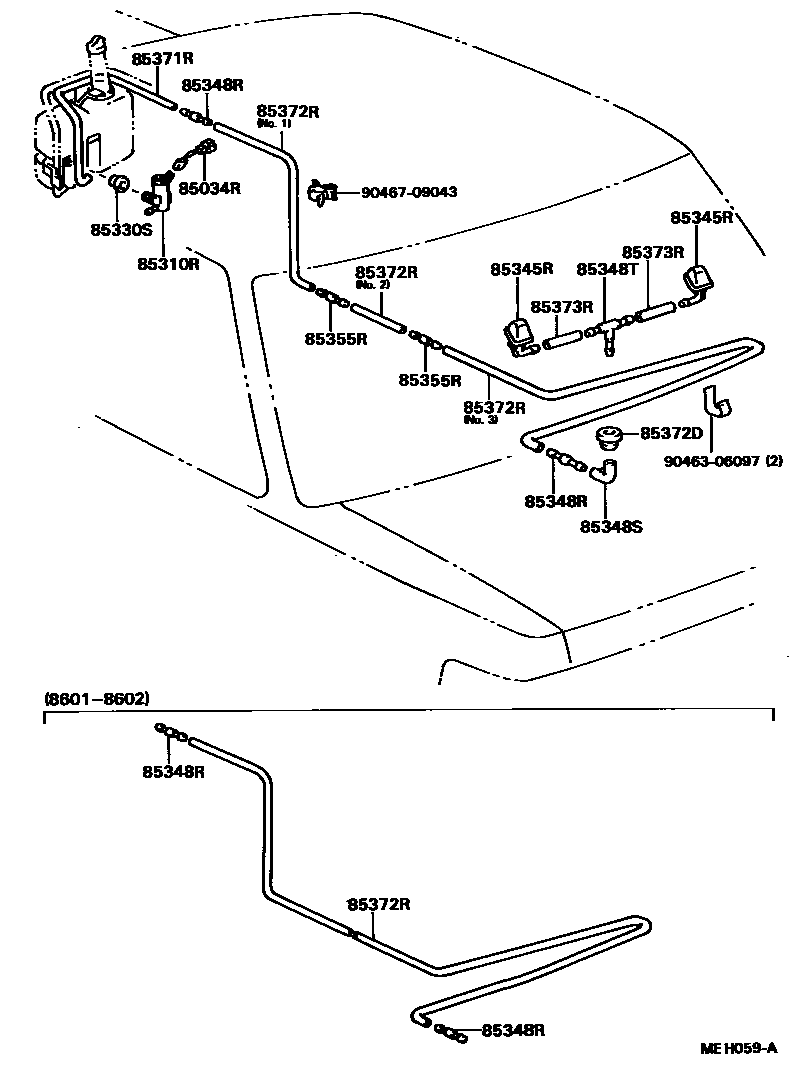

14 parts on this diagram · 1 diagram in section
