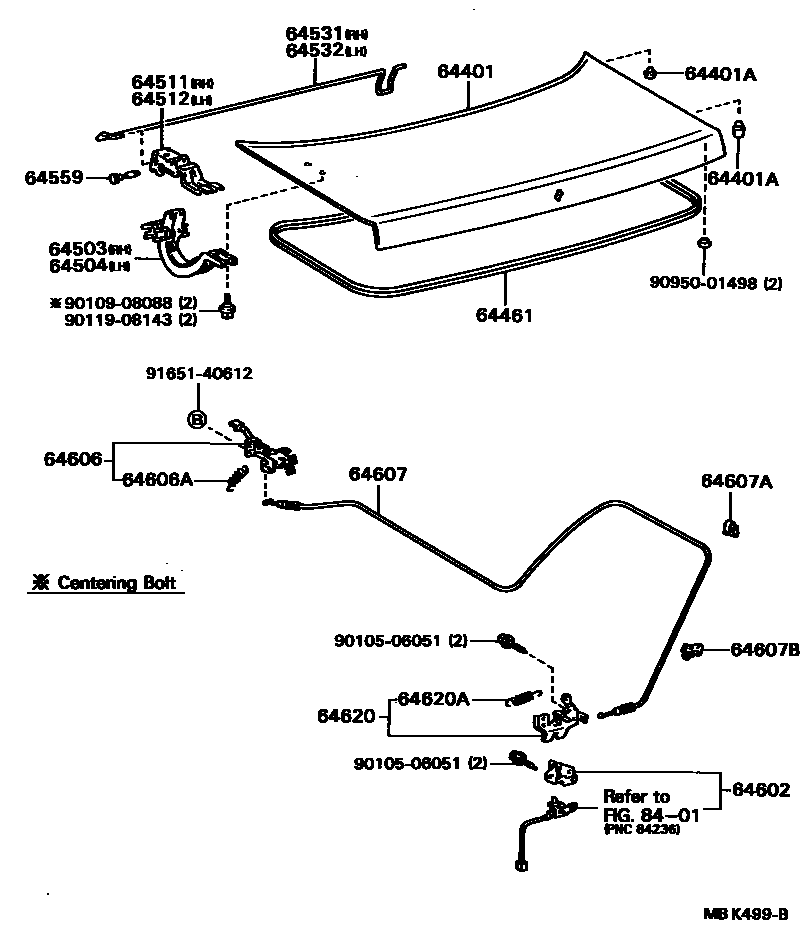

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-24050iGZ20,MZ2#198601-198701

main64401-24051iGZ20,MZ2#198701-198801

main64401-24060iGZ20,MZ2#198601-198801

W/SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iGZ20,MZ2#198601-198801

OD=10

main90541-09016×2iGZ20,MZ2#198601-198801

OD=17

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-24030iGZ20,MZ2#198601-198801

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-24010iGZ20,MZ2#198601-198801

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64504-24010iGZ20,MZ2#198601-198801

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-24020iGZ20,MZ2#198601-198801

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-24020iGZ20,MZ2#198601-198801

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-24030iMZ2#198601-198801

main64531-24040iGZ20,MZ2#198601-198602

W/RR SPOILER

main64531-24041iGZ20,MZ2#198602-198801

W/RR SPOILER

main64531-24050iGZ20198601-198801

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-24030iMZ2#198601-198801

main64532-24040iGZ20,MZ2#198601-198602

W/RR SPOILER

main64532-24041iGZ20,MZ2#198602-198801

W/RR SPOILER

main64532-24050iGZ20198601-198801

64559PIN, LUGGAGE DOOR HINGE

main64559-12010×2iGZ20,MZ2#198601-198801

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-24010iGZ20,MZ2#198601-198801

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-24020-01iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BLACK,BLACK,TRIM2#

main64606-24020-05iGZ20,MZ2#..GT,GTL,VX198601-198701

BEIGE,DARK BEIGE,TRIM4#

main64606-24020-06iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BROWN,BROWN,TRIM4#

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iGZ20,MZ2#198601-198801

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-24040iGZ20,MZ2#198601-198801

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05002iGZ20,MZ2#198601-198801

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05004×2iGZ20,MZ2#198601-198801

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-24020iGZ20,MZ2#198601-198801

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iGZ20,MZ2#198601-198801

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010908088

main90109-08088

9011908143

main90119-08143

9095001498

main90950-01498

9165140612

main91651-40612

24 parts on this diagram · 1 diagram in section
