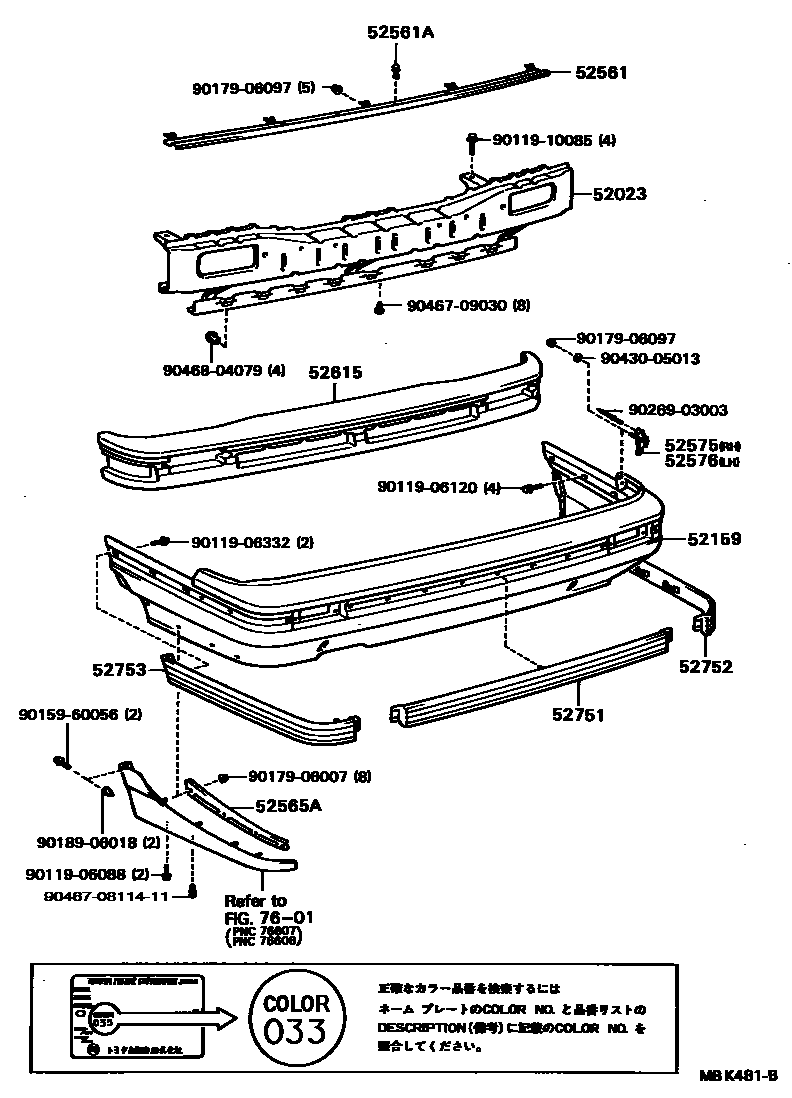

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-24030iGZ20,MZ2#198601-198801

52159COVER, REAR BUMPER

main52159-24020-02iGZ20198601-198801

RED-MICA,RED MICA,3H1

main52159-24020-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

SUPER SILVER-2M,SUPER SILVER 2,166

main52159-24020-08iGZ20,MZ2#198601-198801

SUPER WHITE 2,SUPER WHITE 2,040

main52159-24020-13iGZ20..GTT198601-198801

GRAY,DARK GRAY M/GRAY M,26A

main52159-24020-18iGZ20,MZ20..GT,GTT,VX198701-198801

PEARL MICA,WHITE PEARL MICA,2V0

main52159-24020-28iMZ2#..GTL198601-198801

PEARL MICA & BEIGE,PEARL MICA/BEIGE,25A

main52159-24030-02iGZ20198601-198701

W/*SMU,RED-MICA,RED MICA,3H1

main52159-24030-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198701

W/*SMU,SUPER SILVER-2M,SUPER SILVER 2,166

main52159-24030-08iGZ20,MZ2#198601-198701

W/*SMU,SUPER WHITE 2,SUPER WHITE 2,040

main52159-24030-13iGZ20..GTT198601-198801

W/*SMU,GRAY,DARK GRAY M/GRAY M,26A

main52159-24030-18iGZ20,MZ20..GT,VX198601-198701

W/*SMU,PEARL MICA,WHITE PEARL MICA,2V0

main52159-24030-28iMZ2#..GTL198601-198801

W/*SMU,PEARL MICA & BEIGE,PEARL MICA/BEIGE,25A

52561RETAINER, REAR BUMPER, UPPER CENTER

main52508-24010iGZ20,MZ2#198601-198801

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-06017-01×6iGZ20,MZ2#198601-198801

BLACK,BLACK

52565ARETAINER, REAR BUMPER, LOWER

main52565-24020iGZ20,MZ2#198601-198701

RH

main52566-24020iGZ20,MZ2#198601-198701

LH

52575RETAINER, REAR BUMPER SIDE, RH

main52575-24020iGZ20,MZ2#198601-198801

52576RETAINER, REAR BUMPER SIDE, LH

main52576-24020iGZ20,MZ2#198601-198801

52615ABSORBER, REAR BUMPER ENERGY

main52615-24020iGZ20,MZ2#198601-198801

52751MOULDING, REAR BUMPER

main52751-24020-02iGZ20198601-198801

RED,RED,3H1

main52751-24020-03iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

GRAY,GRAY,166 ,26A

main52751-24020-05iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

BEIGE,BEIGE,040 ,2V0

main52751-24020-08iMZ2#..GTL198601-198801

IVORY,IVORY,040 ,25A

52752MOULDING, REAR BUMPER SIDE, RH

main52752-24020-02iGZ20198601-198801

RED,RED,3H1

main52752-24020-03iGZ20198601-198801

GRAY,GRAY,166 ,26A

main52752-24020-05iGZ20198601-198801

BEIGE,BEIGE,040 ,2V0

main52752-24030-03iMZ20..GT198601-198801

GRAY,GRAY,166

main52752-24030-05iMZ20..GT198601-198801

BEIGE,BEIGE,040 ,2V0

main52752-24030-08iMZ2#..GTL198601-198801

IVORY,IVORY,040 ,25A

52753MOULDING, REAR BUMPER SIDE, LH

main52753-24020-02iGZ20198601-198801

RED,RED,3H1

main52753-24020-03iGZ20198601-198801

GRAY,GRAY,166 ,26A

main52753-24020-05iGZ20198601-198801

BEIGE,BEIGE,040 ,2V0

main52753-24030-03iMZ20..GT198601-198801

GRAY,GRAY,166

main52753-24030-05iMZ20..GT198601-198801

BEIGE,BEIGE,040 ,2V0

main52753-24030-08iMZ2#..GTL198601-198801

IVORY,IVORY,040 ,25A

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9011906088

main90119-06088

9011906120

main90119-06120

9011906332

main90119-06332

9011910085

main90119-10085

9015960056

main90159-60056

9017906007

main90179-06007

9017906097

main90179-06097

9018906018

main90189-06018

9026903003

main90269-03003

9043005013

main90430-05013

904670811411

main90467-0811411

9046709030

main90467-09030

9046804079

main90468-04079

25 parts on this diagram · 1 diagram in section
