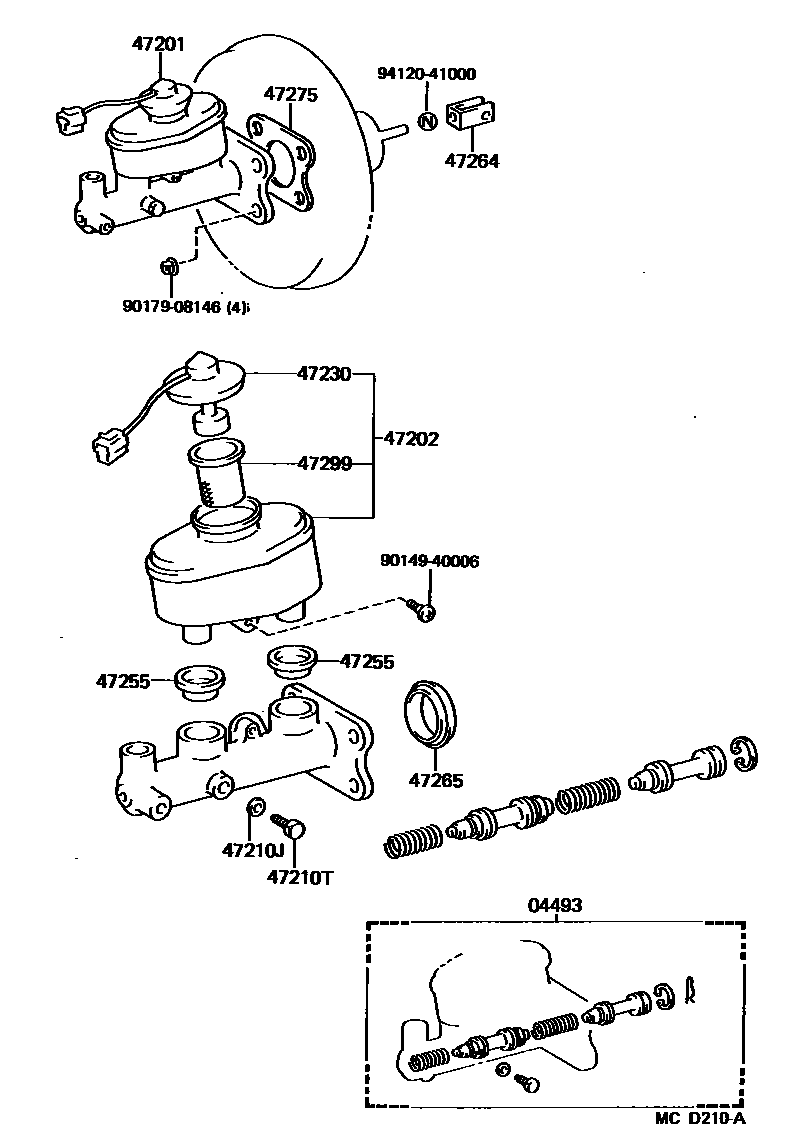

BRAKE MASTER CYLINDER

0001 1 0002 1W/ESC

04493CYLINDER KIT, BRAKE MASTER

main04493-14110iGZ20..VX,VZ198601-198801

main04493-14120iGZ20,MZ20..GT,GTT198601-198701

main04493-14130iGZ20..GTT198601-198704

W/ESC

sub04493-14131

main04493-14131iMZ2#198704-198801

W/ESC

main04493-24030iGZ20,MZ20..GT,GTT198701-198801

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-14520iGZ20..VX,VZ198601-198801

main47201-14530iGZ20..GT198601-198701

main47201-14540iMZ20..GT198601-198701

main47201-14580iGZ20..GTT198601-198801

W/ESC

sub47201-14600

main47201-24030iGZ20..GT198701-198801

main47201-24040iGZ20..GTT198701-198801

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-14280iGZ20..GT,VX,VZ198601-198801

main47202-14310iGZ20..GTT198601-198801

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGZ20,MZ2#198601-198801

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGZ20,MZ2#198601-198801

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-14060iGZ20,MZ2#198601-198801

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iGZ20,MZ2#198601-198801

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGZ20..VX,VZ198601-198801

main47264-30040iGZ20,MZ2#..GT,GTL,GTT198601-198801

47265BOOT, MASTER CYLINDER

main47265-20050iGZ20,MZ2#198601-198801

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iGZ20,MZ2#198601-198801

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iGZ20,MZ2#198601-198801

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

14 parts on this diagram · 2 diagrams in section
