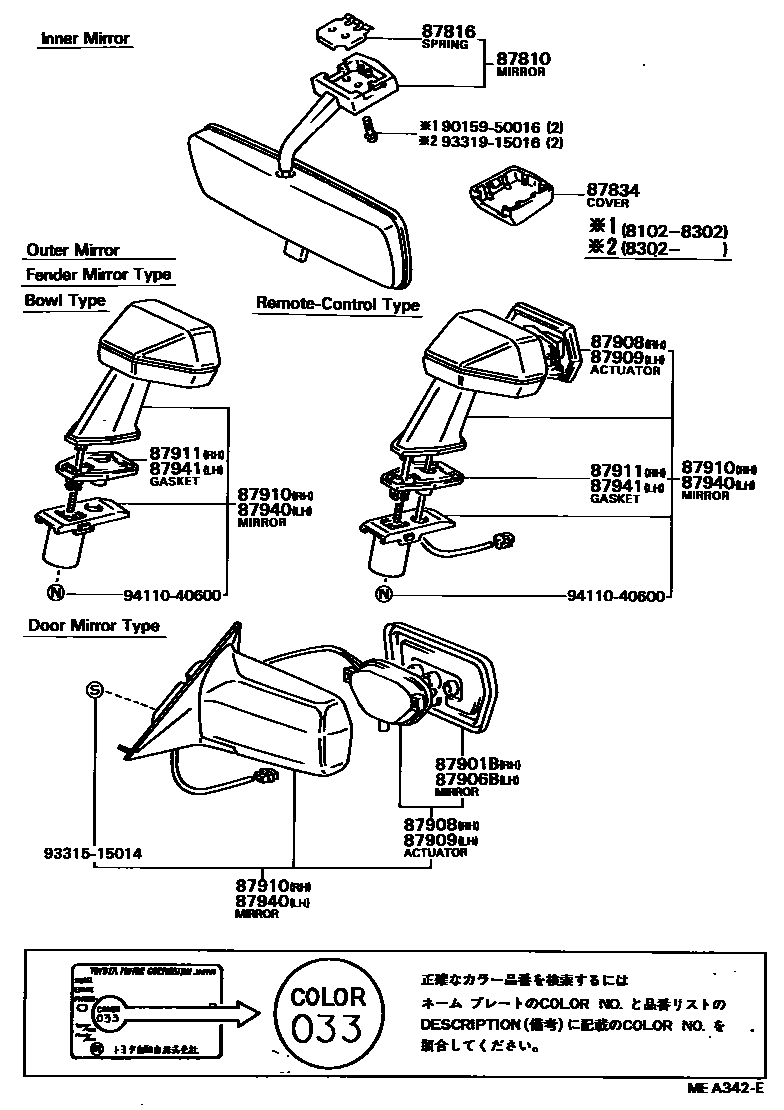

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,BLACK,TRIM2#
TERRACOTTA,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,IVORY
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87908ACTUATOR ASSY, OUTER MIRROR, RH
FENDER
FENDER
DOOR
DOOR
87909ACTUATOR ASSY, OUTER MIRROR, LH
FENDER
FENDER
DOOR
DOOR
87910MIRROR ASSY, OUTER REAR VIEW, RH
*FM,BOWL TYPE
*FM,*RC,GRAY-M,GRAY,033 ,139 ,2E5; *FM,*RC,GRAY-M,GRAY,3A3 ,4A8 ,889
*FM,*RC,BEIGE-M,BEIGE,2B2
*FM,*RC,SUPER WHITE,IVORY,035
*FM,*RC,SILVER GRAY-M,GRAY,2E5
*FM,*RC,PEARL MICA,IVORY,2E6
*FM,*RC,SUPER SILVER-M,GRAY,150
*FM,*RC,BEIGE,BEIGE,2M5
*FM,*RC,SUPER WHITE,IVORY,035
*FM,*RC,GRAY-M,GRAY,3D1 ,2M7
*FM,*RC,PEARL MICA,IVORY,2M6
*FM,*RC,SUPER WHITE,SUPER WHITE,040
*FM,*RC,PEARL MICA,PEARL MICA,2U9
DOOR,BLACK,BLACK,3D1 ,2M7 ,3E5
DOOR,SUPER SILVER-M,GRAY,150
DOOR,BEIGE,BEIGE,2M5
DOOR,SUPER WHITE,IVORY,035
DOOR,PEARL MICA,IVORY,2M6
DOOR,SUPER WHITE,SUPER WHITE,040
DOOR,PEARL MICA,PEARL MICA,2U9
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
*FM,BOWL TYPE
*FM,*RC,GRAY-M,GRAY,033 ,139 ,2E5; *FM,*RC,GRAY-M,GRAY,3A3 ,4A8 ,889
*FM,*RC,BEIGE-M,BEIGE,2B2
*FM,*RC,SUPER WHITE,IVORY,035
*FM,*RC,SILVER GRAY-M,GRAY,2E5
*FM,*RC,PEARL MICA,IVORY,2E6
*FM,*RC,SUPER SILVER-M,GRAY,150
*FM,*RC,BEIGE,BEIGE,2M5
*FM,*RC,SUPER WHITE,IVORY,035
*FM,*RC,GRAY-M,GRAY,3D1 ,2M7
*FM,*RC,PEARL MICA,IVORY,2M6
*FM,*RC,SUPER WHITE,SUPER WHITE,040
*FM,*RC,PEARL MICA,PEARL MICA,2U9
DOOR,BLACK,BLACK,3D1 ,2M7 ,3E5
DOOR,SUPER SILVER-M,GRAY,150
DOOR,BEIGE,BEIGE,2M5
DOOR,SUPER WHITE,IVORY,035
DOOR,PEARL MICA,IVORY,2M6
DOOR,SUPER WHITE,SUPER WHITE,040
DOOR,PEARL MICA,PEARL MICA,2U9
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015950016
main90159-50016
9331515014
main93315-15014
9331915016
main93319-15016
9411040600
main94110-40600
15 parts on this diagram · 1 diagram in section
