HORN

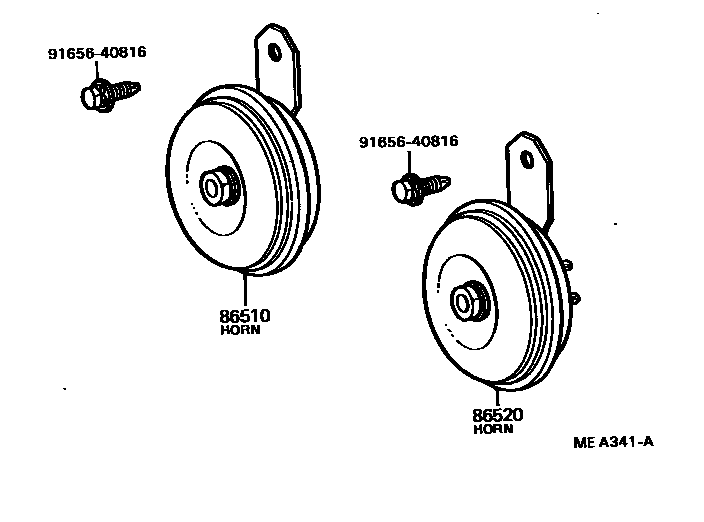

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-22050i198102-198302

DENSO

main86510-22060i198102-198302

MARUKO

main86510-22100i198302-198512

DENSO

main86510-22110i198302-198512

MARUKO

86520HORN ASSY, LOW PITCHED

main86520-22050i198102-198302

DENSO

main86520-22060i198102-198302

MARUKO

main86520-22100i198302-198512

DENSO

main86520-22110i198302-198512

MARUKO

9165640816

main91656-40816

3 parts on this diagram · 1 diagram in section
