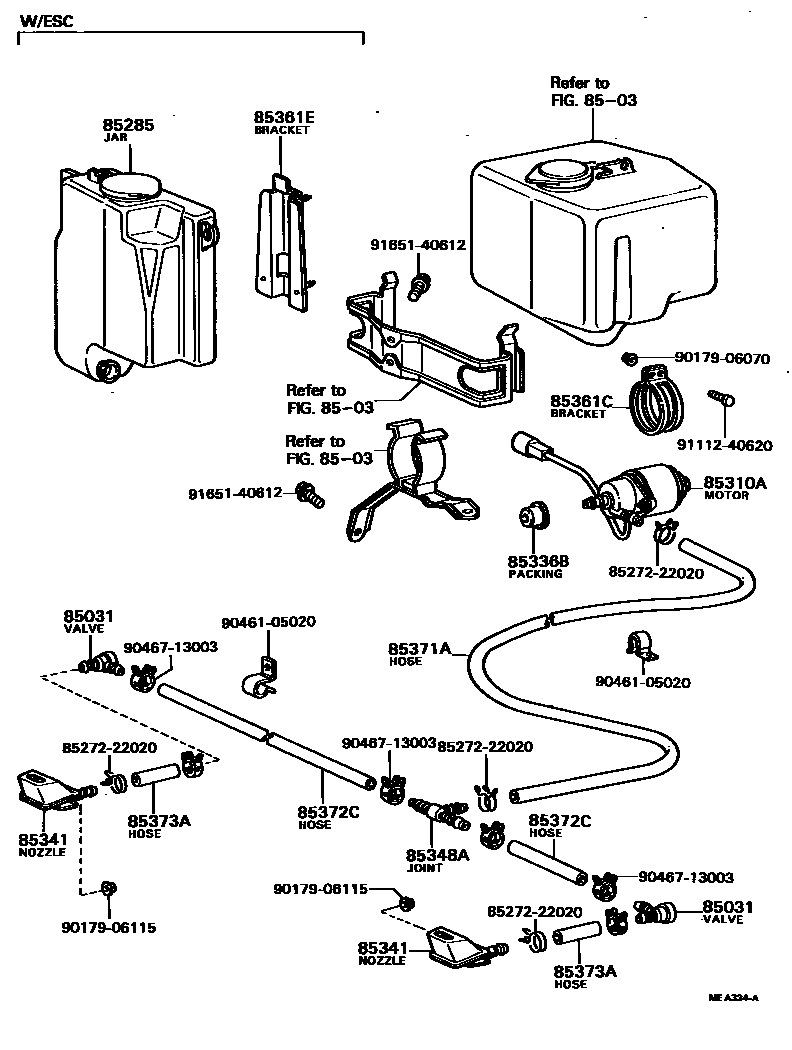

HEADLAMP CLEANER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iMZ11,12198203-198512

85285JAR, HEADLAMP CLEANER WASHER

main85330-24030iMZ11,12198102-198512

W/ESC

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22060iMZ11,12198102-198512

W/ESC

main85310-22070iMZ11,12..GT198203-198512

W/O ESC

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-24010×2iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

main85035-24020×2iMZ11,12198302-198512

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85352-12010iMZ11,12198203-198512

85361CBRACKET, WASHER

main85361-14100iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

85361EBRACKET, HEADLAMP CLEANER, NO.3

main85361-24040iMZ11,12198102-198512

W/ESC

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85271-24020iMZ11,12198102-198512

W/ESC

main90445-14072iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

85372CHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)

main90445-14060iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

main90445-14061iMZ11,12198203-198512

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14055×2iMZ11,12198203-198512

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9017906070

main90179-06070

9017906115

main90179-06115

9046105020

main90461-05020

9046713003

main90467-13003

9111240620

main91112-40620

9165140612

main91651-40612

19 parts on this diagram · 1 diagram in section
