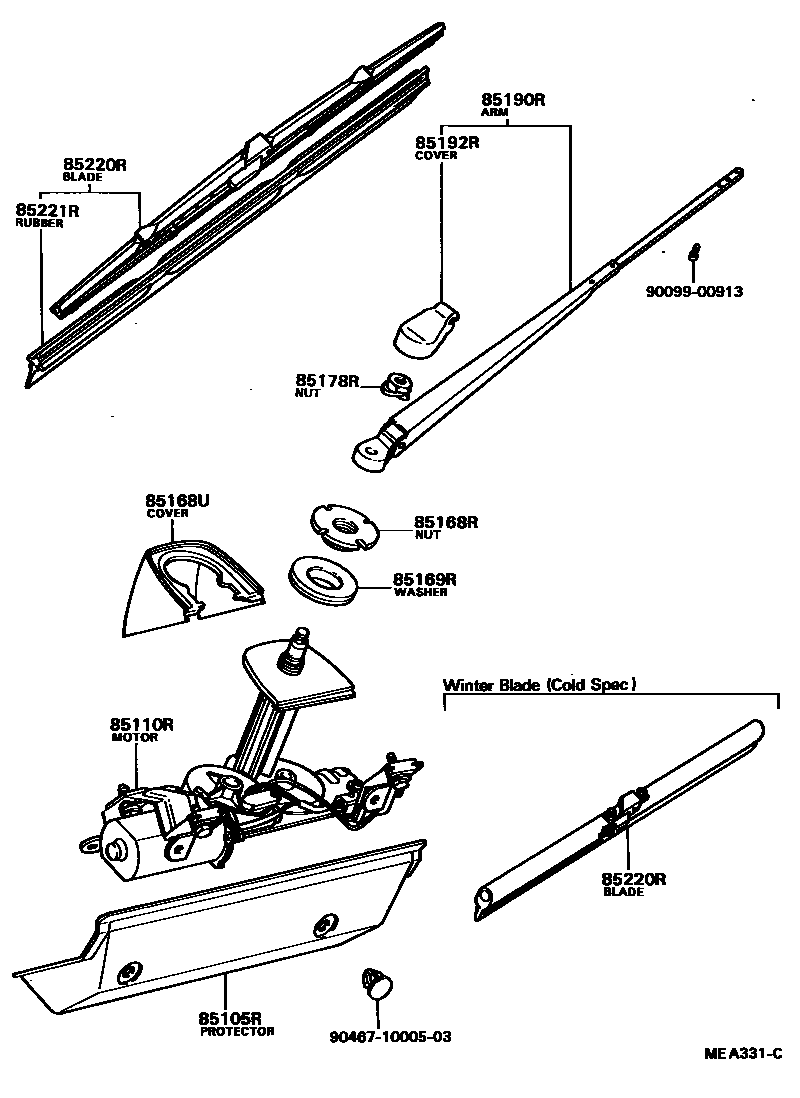

REAR WIPER

85105RPROTECTOR, REAR WIPER

main85105-24010iGZ10,MZ11..GT198102-198501

85110RMOTOR ASSY, REAR WIPER

main85110-24020iMZ11198102-198104

main85110-24022iGZ10,MZ11..GT198104-198501

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05155iGZ10,MZ11..GT198102-198501

85168UCOVER, REAR WIPER

main85168-24020iGZ10,MZ11..GT198102-198501

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-22130iGZ10,MZ11..GT198102-198501

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGZ10,MZ11..GT198102-198501

85190RARM ASSY, REAR WIPER

main85190-24020iMZ11198102-198302

main85190-24021iGZ10,MZ11..GT198302-198501

85192RCOVER, REAR WIPER ARM

main85192-14020iMZ11198102-198302

85220RBLADE ASSY, REAR WIPER

main85220-20080iGZ10,MZ11..GT198102-198501

WINTER BLADE(COLD SPEC)

main85220-22370iGZ10,MZ11..GT198302-198501

main85220-24030iMZ11198102-198302

85221RBLADE, REAR WIPER

main85221-24030iMZ11198102-198302

main85221-87002iGZ10,MZ1#..GT,GTL,TBO198501-198512

9009900913

main90099-00913

904671000503

main90467-1000503

12 parts on this diagram · 1 diagram in section
