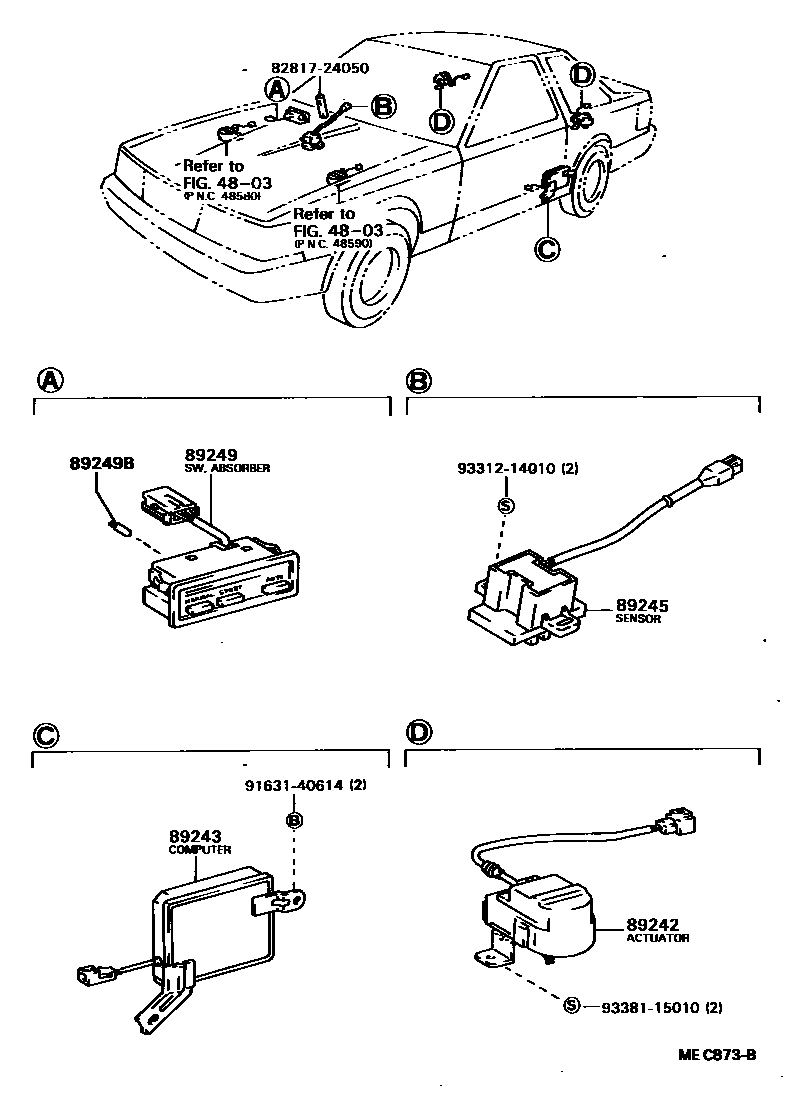

ELECTRONIC MODULATED SUSPENSION

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-24010×2iMZ11,12198302-198512

89243COMPUTER, ABSORBER CONTROL

main89243-24010iMZ11198302-198501

main89243-24020iMZ12198501-198512

89245SENSOR, STEERING

main89245-24010iMZ11,12198302-198512

89249SWITCH, ABSORBER CONTROL

main89249-24010iMZ11,12198302-198512

89249BBULB, ABSORBER CONTROL SWITCH

main90981-11014iMZ11,12198302-198512

8281724050PROTECTOR, WIRING HARNESS, NO.1

main82817-24050

9163140614

main91631-40614

9331214010

main93312-14010

9338115010

main93381-15010

10 parts on this diagram · 1 diagram in section
