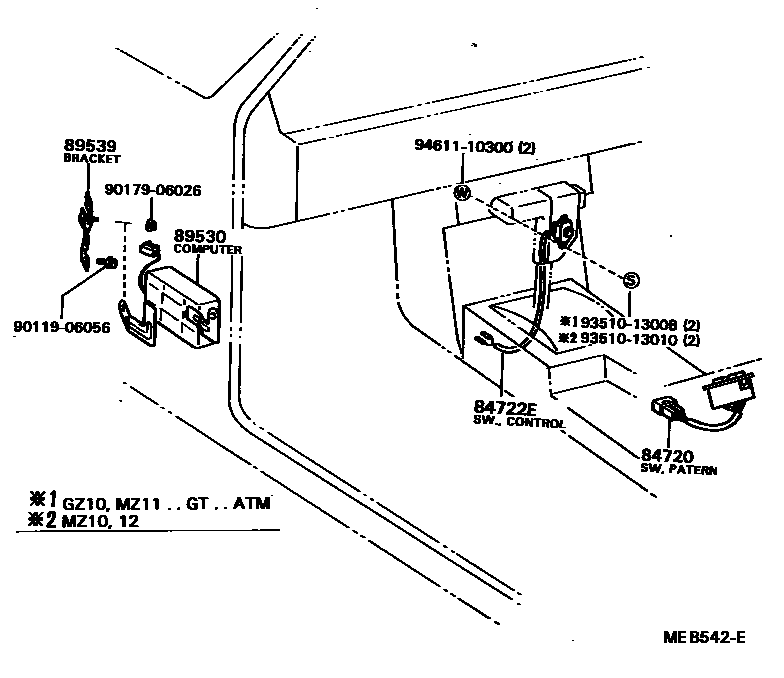

ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1

84720SWITCH ASSY, PATTERN SELECT

main84720-24010iGZ10,MZ11..4FC..GT198203-198401

84722ESWITCH, TRANSMISSION CONTROL

main84722-14070-02iGZ10,MZ1#..4FC..(GT,GTL,TBO)198401-198512

DEEP MAROON,RED/MAROON,TRIM3#

main84722-14070-04iGZ10,MZ1#..4FC..(GT,GTL,TBO)198401-198512

BLUE,BLUE,TRIM8#

main84722-14070-05iGZ10,MZ1#..4FC..(GT,GTL,TBO)198401-198512

BEIGE,BEIGE,TRIM4#

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-24030iMZ11..4FC198203-198302

main89530-24031iMZ11..4FC198302-198401

main89530-24040iGZ10..4FC..GT198302-198401

main89530-24070iMZ10198401-198512

DENSO

main89530-24100iMZ11..4FC198401-198501

main89530-24110iGZ10..4FC..GT198401-198501

main89530-24111iGZ10..4FC..GT198501-198512

main89530-24150iMZ10198401-198512

AISIN

main89530-24200iMZ12..4FC198501-198512

89539BRACKET, TRANSMISSION CONTROL COMPUTER

main89619-24010iGZ10,MZ11..4FC..GT198203-198401

9011906056

main90119-06056

9017906026

main90179-06026

9351013008

main93510-13008

9351013010

main93510-13010

9461110300

main94611-10300

9 parts on this diagram · 2 diagrams in section
