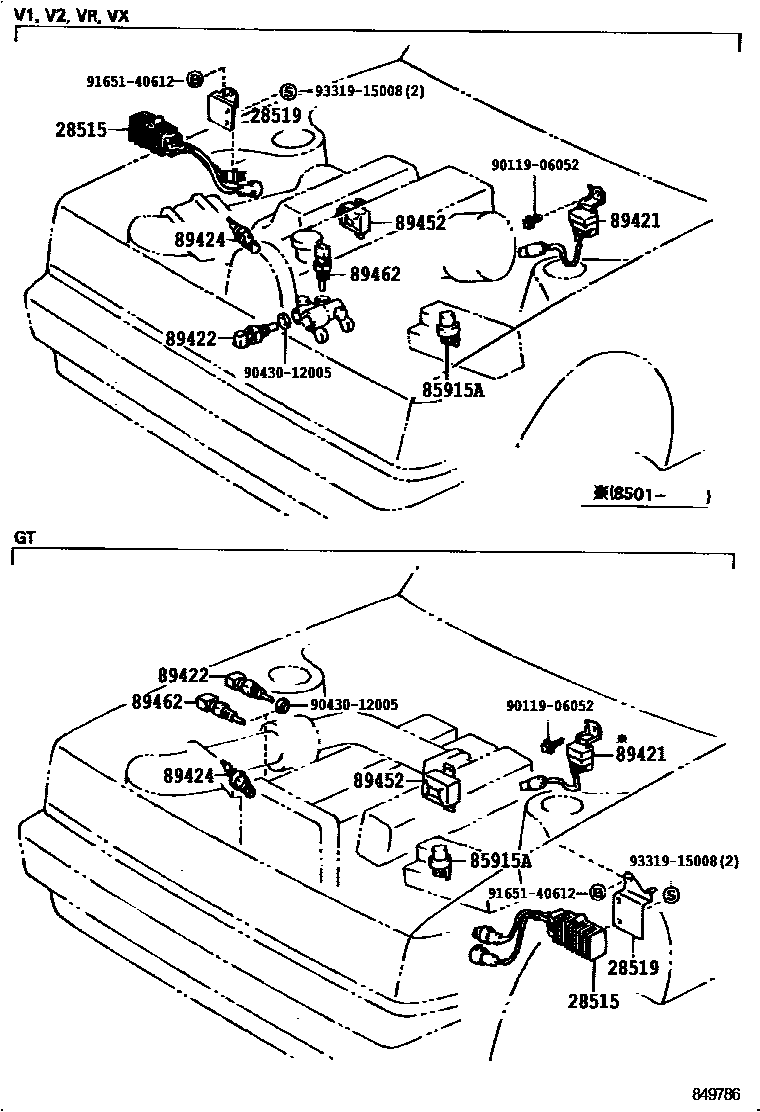

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

28515RESISTOR, SOLENOID

main28515-43010i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

28519BRACKET, SOLENOID RESISTOR

main28519-24010i1GEU..GZ10198102-198512

main28519-24020i1GGEU,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

85915ARELAY, MAIN

main85915-14050iMZ11..4FC198302-198401

main90987-02004iGZ10,MZ1#198102-198302

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-12020iGZ10..GT198501-198512

main89421-14030iGZ10..V2,VR,VX198501-198512

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iGZ10,MZ1#198102-198512

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-28010iGZ10198501-198512

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iGZ10..5F..GT198302-198305

main89452-14040iMZ11..4FC198401-198501

main89452-22010iGZ10,MZ10; MZ11..5F198203-198302

main89452-28010iGZ10..V2,VR,VX; MZ12198505-198508

main89452-28040iGZ10..V2,VR,VX; MZ12198508-198512

main89452-30040iMZ1#..4FC198302-198401

89462SWITCH, START INJECTOR TIME

main89462-30011iMZ10198107-198302

main89462-40010iGZ10; MZ11..5F198203-198302

9011906052

main90119-06052

9043012005

main90430-12005

9165140612

main91651-40612

9331915008

main93319-15008

12 parts on this diagram · 3 diagrams in section
