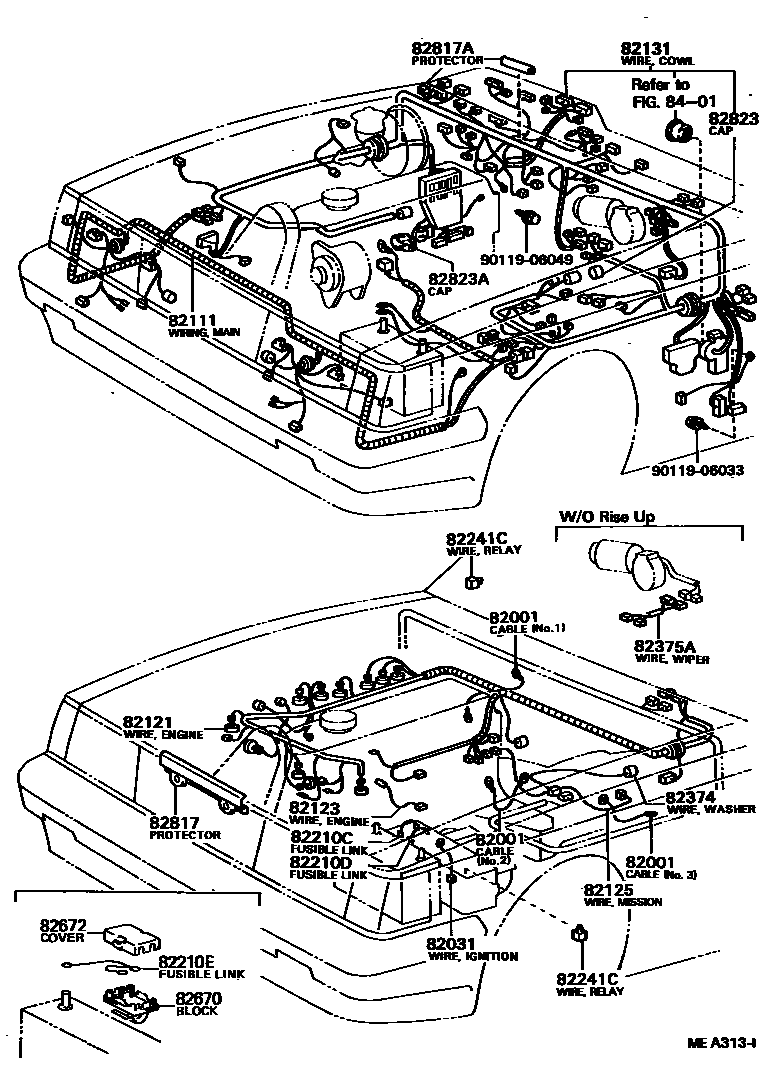

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82001CABLE, BOND, NO.1

main90980-07083iMZ1#198102-198308

L=350(NO.1)

main90980-07109iGZ10..V2,VR,VX198102-198512

L=400(NO.1)

main90980-07148×2iGZ10,MZ1#198102-198302

L=260(NO.2),(NO.3)

main90980-07176iGZ10,MZ1#198302-198512

L=300(NO.3)

main90980-07200iGZ10..GT198302-198512

L=350(NO.1)

82031WIRE SUB-ASSY, IGNITION COIL

main82031-12060iGZ10198102-198302

82111WIRE, ENGINE ROOM MAIN

main82111-24010iGZ10198203-198302

main82111-24020iMZ1#198203-198302

main82111-24030iGZ10..V2,VR,VX198302-198308

main82111-24040iGZ10..V2,VR,VX198308-198501

main82111-24050iMZ10198308-198501

main82111-24060iMZ10198302-198308

main82111-24070iGZ10198501-198512

main82111-24080iMZ12..4FC..GTL198501-198505

main82111-24081iMZ12..4FC..GTL198505-198512

main82111-24100iMZ1#..GT,TBO;MZ12..5F..GTL198501-198512

main82210-24010iGZ10198102-198203

main82210-24020iMZ1#198102-198203

82121WIRE, ENGINE

main82121-14131iGZ10..5F..GT198302-198305

main82121-14132iGZ10..5F..GT198305-198501

main82121-14270iMZ11198401-198501

main82121-24010iGZ10198102-198302

main82121-24020iMZ11..5F198203-198302

main82121-24030iMZ10198107-198302

main82121-24040iMZ11..4FC198203-198302

main82121-24050iGZ10..V2,VR,VX198302-198501

main82121-24070iGZ10..4FC..GT198302-198501

main82121-24080iMZ10198302-198512

main82121-24090iMZ11..5F198302-198401

main82121-24100iMZ11..4FC198302-198401

main82121-24110iGZ10..V2,VR,VX198501-198512

main82121-24120iGZ10..GT198501-198512

main82121-24140iMZ12198501-198512

82123WIRE, ENGINE, NO.3

main82123-14110iMZ11198401-198501

82125WIRE, TRANSMISSION

main82125-24010iGZ10,MZ11,12..5F198203-198512

main82310-24010iGZ10,MZ11..5F198102-198203

82131WIRE, COWL

main82131-24010iGZ10..V2,VR198203-198302

main82131-24020iGZ10..VX198203-198302

main82131-24030iMZ11..5F198203-198302

main82131-24040iMZ11..5F198203-198302

W/ESC

main82131-24050iMZ10198203-198302

main82131-24060iMZ11..4FC198203-198302

main82131-24070iMZ11..4FC198203-198302

W/ESC

main82131-24080iGZ10..V2,VR198302-198308

main82131-24081iGZ10..V2,VR198308-198401

main82131-24090iGZ10..VX198302-198308

main82131-24091iGZ10..VX198308-198401

main82131-24100iMZ10198302-198401

main82131-24110iGZ10..5F..GT198302-198401

main82131-24120iGZ10..4FC..GT198302-198401

main82131-24130iMZ11..5F198302-198401

main82131-24140iMZ11..5F198302-198401

W/ESC

main82131-24150iMZ11..4FC198302-198401

main82131-24160iMZ11..4FC198302-198401

W/ESC

main82131-24170iGZ10..V2,VR198401-198501

main82131-24180iGZ10..VX198401-198501

main82131-24190iMZ10198401-198501

main82131-24200iGZ10..5F..GT198401-198501

main82131-24210iGZ10..4FC..GT198401-198501

main82131-24220iMZ11..5F198401-198501

main82131-24230iMZ11..5F198401-198501

W/ESC

main82131-24240iMZ11..4FC198401-198501

main82131-24250iMZ11..4FC198401-198501

W/ESC

main82131-24260iGZ10..V2,VR198501-198512

main82131-24270iGZ10..VX198501-198512

main82131-24280iGZ10..5F..GT198501-198512

main82131-24290iGZ10..4FC..GT198501-198512

main82131-24300iMZ12..5F..GT198501-198512

main82131-24310iMZ12..5F198501-198512

W/ESC

main82131-24320iMZ12..4FC..GT198501-198512

main82131-24330iMZ12..4FC198501-198512

W/ESC

main82131-24340iMZ12..4FC..GTL198501-198505

W/MULTI DISPLAY

main82131-24341iMZ12..4FC..GTL198505-198512

W/MULTI DISPLAY

main82131-24370iMZ10198501-198512

main82220-24010iGZ10..V1198102-198203

main82220-24020iGZ10..V2198102-198203

main82220-24030iGZ10..V2198102-198203

W/HEADLAMP CLEANER

main82220-24050iGZ10..VR198102-198203

main82220-24060iGZ10..VR198102-198203

W/HEADLAMP CLEANER

main82220-24070iGZ10..VX198102-198203

main82220-24080iGZ10..VX198102-198203

W/HEADLAMP CLEANER

main82220-24090iMZ11198102-198203

main82220-24100iMZ11198102-198203

W/ESC

main82220-24110iMZ10..V2198107-198203

main82220-24120iMZ10..V2198107-198203

W/HEADLAMP CLEANER

main82220-24130iMZ10..VR198107-198203

main82220-24140iMZ10..VR198107-198203

W/HEADLAMP CLEANER

82210CFUSIBLE LINK

main90982-08157iGZ10,MZ1#198102-198512

82210DFUSIBLE LINK

main90982-08125iGZ10,MZ1#198102-198512

82210EFUSIBLE LINK

main90982-08211iGZ10,MZ1#198302-198512

82241CWIRE, RELAY

main82241-24010iMZ11..4FC198302-198401

main82241-24020iMZ10198308-198401

82374WIRE, WASHER

main82374-24010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

W/ESC OR HEADLAMP CLEANER

82375AWIRE, WIPER MOTOR

main82375-14040iGZ10,MZ11198102-198105

W/O RISE UP

main82375-24010iGZ10,MZ1#198105-198203

W/O RISE UP

82670BLOCK ASSY, JUNCTION, NO.1

main82671-22020iGZ10,MZ1#198302-198512

SUMITOMO

main82671-30030iGZ10,MZ1#198302-198512

YAZAKI

82672COVER, JUNKTION BLOCK

main82672-22040iGZ10,MZ1#198302-198512

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-22350iGZ10..GT198302-198512

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-24050iMZ11198302-198501

W/ESC

82823CAP, TERMINAL, NO.1

main82823-14040iMZ11198303-198512

82823ACAP, TERMINAL, NO.2

main82823-24010iMZ12..4FC..GTL198501-198512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906033

main90119-06033

9011906049

main90119-06049

22 parts on this diagram · 7 diagrams in section
