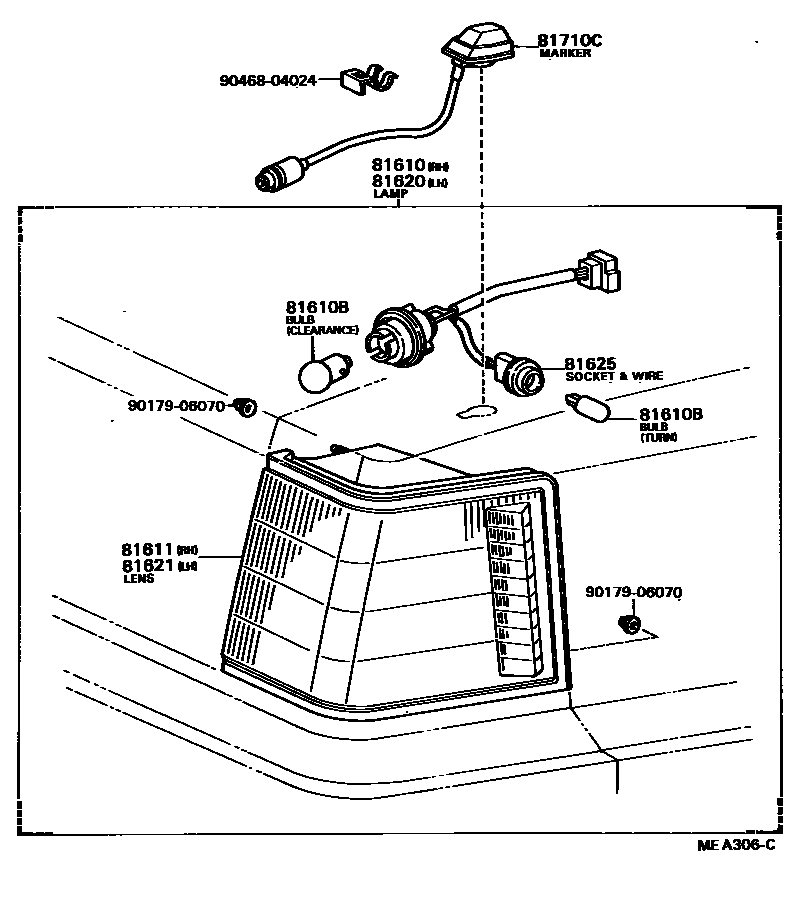

FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-29245iGZ10,MZ1#198102-198512

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-11050×2iGZ10,MZ1#198102-198512

main99132-12050×2iGZ10,MZ1#198102-198512

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-24010iGZ10,MZ1#198102-198512

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-29235iGZ10,MZ1#198102-198512

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-24010iGZ10,MZ1#198102-198512

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-24010×2iGZ10,MZ1#198102-198512

81710CMARKER ASSY, FENDER

main81710-24010×2iGZ10,MZ1#198102-198512

9017906070

main90179-06070

9046804024

main90468-04024

9 parts on this diagram · 1 diagram in section
