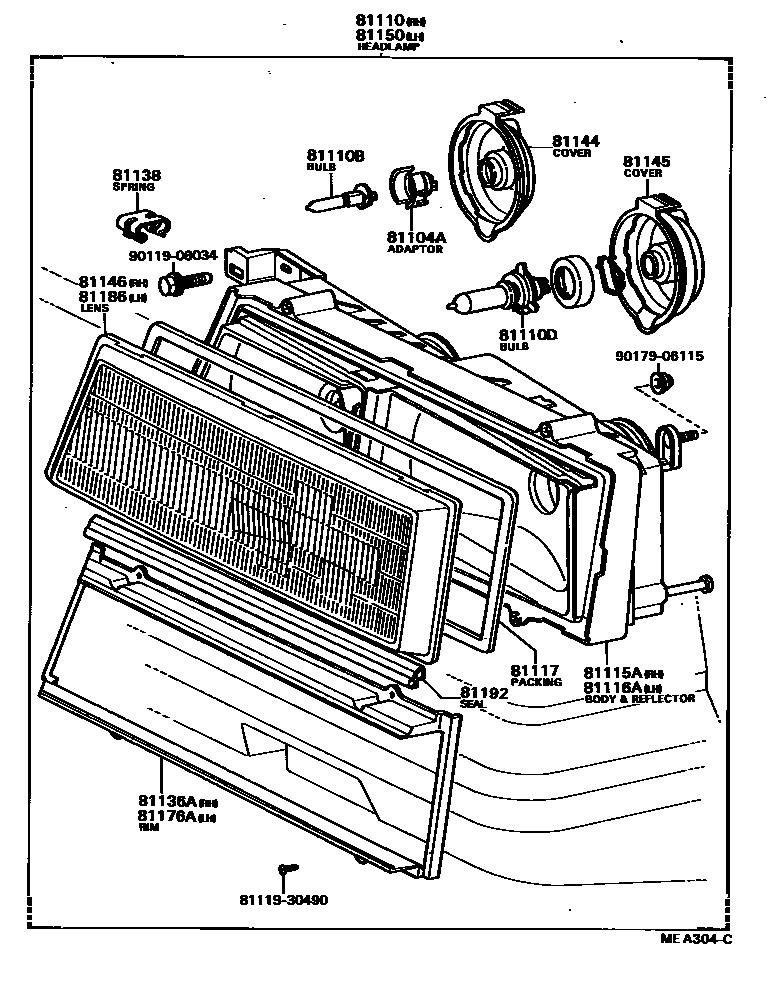

HEADLAMP

81104AADAPTER ASSY, HEADLAMP

main81104-24010×2iGZ10,MZ1#198102-198512

81110HEADLAMP ASSY, RH

main81110-80110iGZ10,MZ1#198102-198302

main81110-80306iGZ10,MZ1#198302-198512

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13017×2iGZ10,MZ1#198102-198512

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13015×2iGZ10,MZ1#198102-198512

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81105-24010iGZ10,MZ1#198102-198302

main81105-24011iGZ10,MZ1#198302-198512

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81106-24010iGZ10,MZ1#198102-198302

main81106-24011iGZ10,MZ1#198302-198512

81117PACKING, HEADLAMP HOUSING

main81147-24010×2iGZ10,MZ1#198102-198512

81136ARIM, HEADLAMP, RH

main81136-24010iGZ10,MZ1#198102-198512

81138SPRING, HEADLAMP

main81138-24010×6iGZ10,MZ1#198102-198512

UPR

main81138-30490×6iGZ10,MZ1#198102-198512

LWR

81144COVER, HEADLAMP, NO.1

main81144-24010×2iGZ10,MZ1#198102-198512

81145COVER, HEADLAMP, NO.2

main81145-24010×2iGZ10,MZ1#198102-198512

81146LENS, HEADLAMP, RH

main81146-24010iGZ10,MZ1#198102-198512

81150HEADLAMP ASSY, LH

main81150-80107iGZ10,MZ1#198102-198302

main81150-80303iGZ10,MZ1#198302-198512

81176ARIM, HEADLAMP, LH

main81176-24010iGZ10,MZ1#198102-198512

81186LENS, HEADLAMP, LH

main81186-24010iGZ10,MZ1#198102-198512

81192SEAL, HEADLAMP

main81192-24010×2iGZ10,MZ11198103-198106

main81192-24011×2iGZ10,MZ1#198106-198512

8111930490SCREW, HEADLAMP

main81119-30490

9011906034

main90119-06034

9017906115

main90179-06115

19 parts on this diagram · 1 diagram in section
