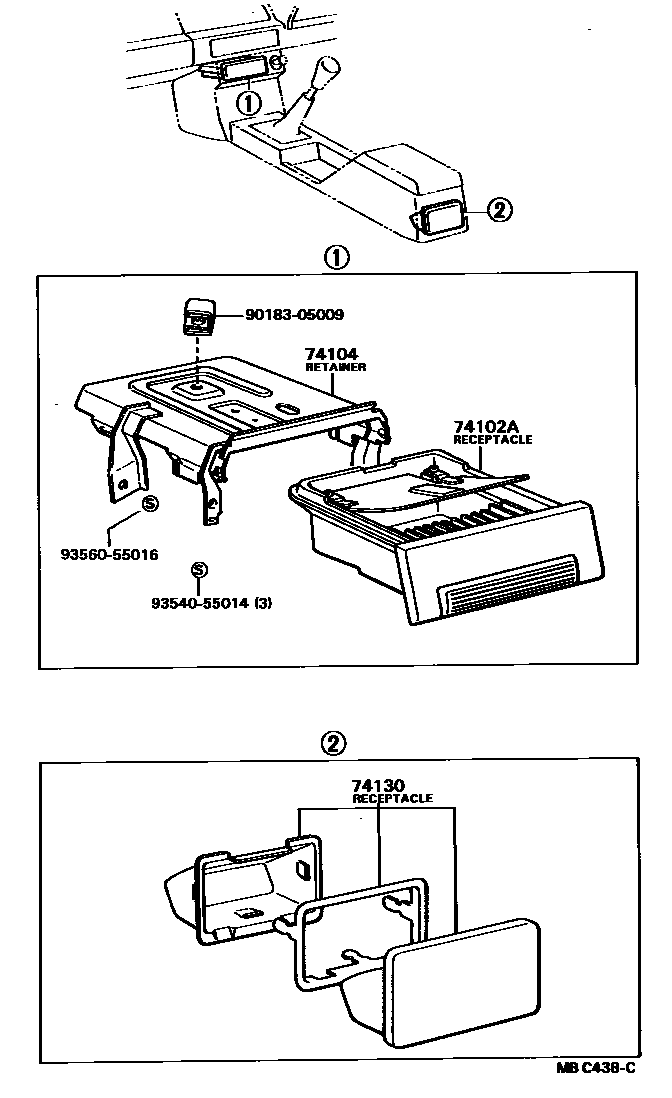

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-24010-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main74102-24010-02iGZ10,MZ1#198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main74102-24010-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main74102-24010-04iGZ10,MZ1#198102-198401

BLUE,BLUE,TRIM8#

main74102-24010-05iGZ10,MZ1#198302-198401

BEIGE,BEIGE,TRIM4#

main74102-24010-12iGZ10,MZ1#198302-198401

DEEP MAROON,RED/MAROON,TRIM3#

main74102-24020-04iGZ10,MZ1#198401-198512

BLUE,BLUE,TRIM8#

main74102-24020-05iGZ10,MZ1#198401-198512

BEIGE,BEIGE,TRIM4#

main74102-24020-12iGZ10,MZ1#198401-198512

DEEP MAROON,DEEP MAROON,TRIM3#

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-24010iGZ10,MZ1#198102-198302

main74104-24011iGZ10,MZ1#198302-198401

main74104-24030iGZ10,MZ1#198401-198512

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main74130-12040-02iGZ10,MZ1#198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main74130-12040-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main74130-12040-14iGZ10,MZ1#198102-198512

BLUE,BLUE,TRIM8#

main74130-12040-22iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main74130-12040-25iGZ10,MZ1#198302-198512

BEIGE,BEIGE,TRIM4#

9018305009

main90183-05009

9354055014

main93540-55014

9356055016

main93560-55016

6 parts on this diagram · 1 diagram in section
