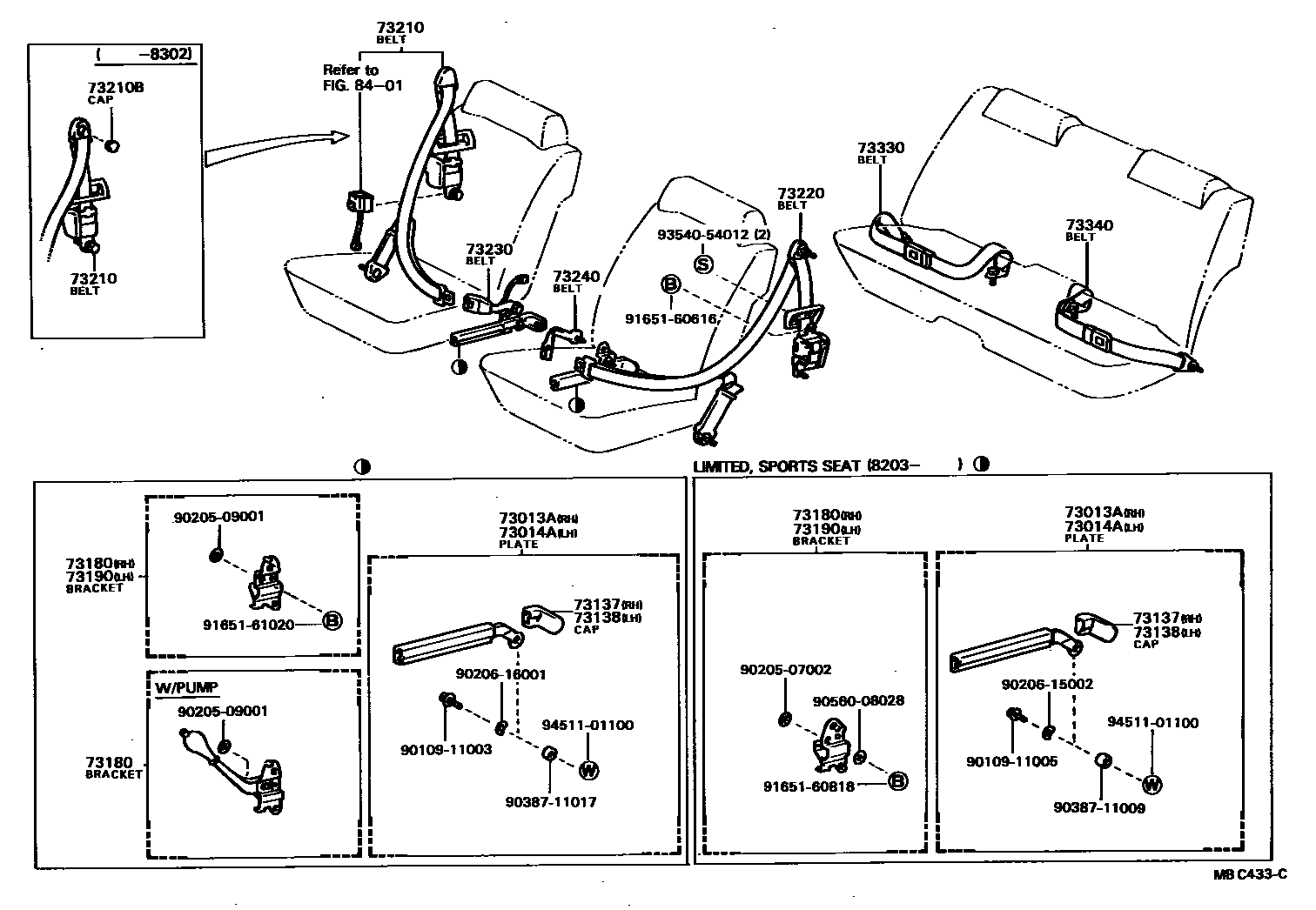

SEAT BELT & CHILD RESTRAINT SEAT

73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH

main73013-14020-02iMZ11198203-198302

LIMITED,TERRA COTTA,RED/MAROON,TRIM3#

main73013-14020-04iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main73013-14020-05iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main73013-14020-12iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main73013-24010-02iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73013-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main73013-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73013-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73013-24010-14iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH

main73014-14020-02iMZ11198203-198302

LIMITED,TERRA COTTA,RED/MAROON,TRIM3#

main73014-14020-04iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main73014-14020-05iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main73014-14020-12iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main73014-24010-02iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73014-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main73014-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73014-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73014-24010-14iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-14020-02iMZ11198203-198302

LIMITED,TERRA COTTA,RED/MAROON,TRIM3#

main73137-14020-04iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main73137-14020-05iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main73137-14020-12iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main73137-24010-02iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73137-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main73137-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73137-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73137-24010-14iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-14020-02iMZ11198203-198302

LIMITED,TERRA COTTA,RED/MAROON,TRIM3#

main73138-14020-04iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main73138-14020-05iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main73138-14020-12iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main73138-24010-02iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73138-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main73138-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73138-24010-05iMZ11,12;GZ10..V2,VR,VX198302-198512

BEIGE,BEIGE,TRIM4#

main73138-24010-14iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73011-14011iMZ11198203-198302

LIMITED

main73011-24010iGZ10..V2,VR,VX198302-198512

main73011-24020-05iMZ11198102-198203

*EXT OR LEATHER SEAT,W/PUMP,BEIGE

main73011-24021-02iMZ11,12198302-198512

W/PUMP,DEEP MAROON,RED/MAROON,TRIM3#

main73011-24021-04iMZ11,12198302-198512

W/PUMP,BLUE,BLUE,TRIM8#

main73011-24021-05iMZ11,12198302-198512

W/PUMP,BEIGE,BEIGE,TRIM4#

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73012-14011iMZ11198203-198302

LIMITED

main73012-24010iGZ10,MZ1#198102-198302

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-24010-03iGZ10,MZ10..TBO,V1,V2,VR198102-198203

GRAY,GRAY,TRIM1#,2#

main73210-24010-04iGZ10,MZ10..TBO,V1,V2,VR198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73210-24010-05iGZ10,MZ10..TBO,V1,V2,VR198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73210-24010-13iGZ10,MZ10..TBO,V2,VR198203-198302

GRAY,GRAY,TRIM1#

main73210-24020-03iGZ10,MZ11..GT,VX198102-198203

GRAY,GRAY,TRIM1#,2#

main73210-24020-04iGZ10,MZ11..GT,VX198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73210-24020-05iGZ10,MZ11..GT,VX198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73210-24020-13iGZ10,MZ11..GT,VX198203-198302

GRAY,GRAY,TRIM1#

main73210-24030iMZ11198203-198302

LIMITED,TERRA COTTA

main73210-24040-02iGZ10..V2,VR198302-198408

DEEP MAROON,RED/MAROON,TRIM3#

main73210-24040-14iGZ10..V2,VR198302-198408

BLUE,BLUE,TRIM8#

main73210-24040-15iGZ10..V2,VR198302-198408

BEIGE,BEIGE,TRIM4#

main73210-24041-02iGZ10..V2,VR198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main73210-24041-04iGZ10..V2,VR198408-198512

BLUE,BLUE,TRIM8#

main73210-24041-05iGZ10..V2,VR198408-198512

BEIGE,BEIGE,TRIM4#

main73210-24050-02iGZ10,MZ1#..GT,TBO,VX198302-198408

DEEP MAROON,RED/MAROON,TRIM3#

main73210-24050-14iGZ10,MZ1#..GT,TBO,VX198302-198408

BLUE,BLUE,TRIM8#

main73210-24050-15iGZ10,MZ1#..GT,TBO,VX198302-198408

BEIGE,BEIGE,TRIM4#

main73210-24051-02iGZ10,MZ1#..GT,GTL,TBO,VX198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main73210-24051-04iGZ10,MZ1#..GT,GTL,TBO,VX198408-198512

BLUE,BLUE,TRIM8#

main73210-24051-05iGZ10,MZ1#..GT,GTL,TBO,VX198408-198512

BEIGE,BEIGE,TRIM4#

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-11×2iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main73178-12010-12×2iGZ10,MZ1#198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main73178-12010-14×2iGZ10,MZ1#198102-198302

BLUE,BLUE,TRIM8#

main73178-12010-23×2iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-24010-03iGZ10,MZ1#198102-198203

GRAY,GRAY,TRIM1#,2#

main73220-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73220-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73220-24010-13iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main73220-24020iMZ11198203-198302

LIMITED,TERRA COTTA

main73220-24030-02iGZ10,MZ1#198302-198408

DEEP MAROON,RED/MAROON,TRIM3#

main73220-24030-14iGZ10,MZ1#198302-198408

BLUE,BLUE,TRIM8#

main73220-24030-15iGZ10,MZ1#198302-198408

BEIGE,BEIGE,TRIM4#

main73220-24031-02iGZ10,MZ1#198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main73220-24031-04iGZ10,MZ1#198408-198512

BLUE,BLUE,TRIM8#

main73220-24031-05iGZ10,MZ1#198408-198512

BEIGE,BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-24010-03iGZ10,MZ10..TBO,V1,V2,VR198102-198302

GRAY,GRAY,TRIM1#,2#

main73230-24010-04iGZ10,MZ10..TBO,V1,V2,VR198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73230-24010-05iGZ10,MZ10..TBO,V1,V2,VR198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73230-24020-03iGZ10,MZ11..GT,VX198102-198105

GRAY,GRAY,TRIM1#,2#

main73230-24020-04iGZ10,MZ11..GT,VX198102-198105

LIGHT BLUE,BLUE,TRIM8#

main73230-24020-05iGZ10,MZ11..GT,VX198102-198105

LIGHT BEIGE,BEIGE,TRIM3#

main73230-24021-03iGZ10,MZ11..GT,VX198105-198302

GRAY,GRAY,TRIM1#,2#

main73230-24021-04iGZ10,MZ11..GT,VX198105-198302

LIGHT BLUE,BLUE,TRIM8#

main73230-24021-05iGZ10,MZ11..GT,VX198105-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73230-24032iMZ11198203-198302

LIMITED,TERRA COTTA

main73230-24050-02iGZ10..V2,VR198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73230-24050-05iGZ10..V2,VR198302-198512

BEIGE,BEIGE,TRIM4#

main73230-24050-14iGZ10..V2,VR198302-198512

BLUE,BLUE,TRIM8#

main73230-24060-02iMZ11,12;GZ10..VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73230-24060-05iMZ11,12;GZ10..VX198302-198512

BEIGE,BEIGE,TRIM4#

main73230-24060-14iMZ11,12;GZ10..VX198302-198512

BLUE,BLUE,TRIM8#

main73230-24070-02iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main73230-24070-05iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main73230-24070-14iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main73230-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73230-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73230-24041iMZ11198203-198302

LIMITED,TERRA COTTA

main73230-24050-02iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73230-24050-05iMZ11,12;GZ10..V2,VR,VX198302-198512

BEIGE,BEIGE,TRIM4#

main73230-24050-14iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

main73230-24080-02iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main73230-24080-05iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BEIGE,BEIGE,TRIM4#

main73230-24080-14iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

73330BELT ASSY, REAR SEAT LAP TYPE, RH

main73330-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main73330-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73330-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73330-24020-02iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73330-24020-14iGZ10,MZ1#198302-198512

BLUE,BLUE,TRIM8#

main73330-24020-15iGZ10,MZ1#198302-198512

BEIGE,BEIGE,TRIM4#

main73330-24030iMZ11198203-198302

LIMITED,TERRA COTTA

73340BELT ASSY, REAR SEAT LAP TYPE, LH

main73330-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main73330-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main73330-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main73330-24020-02iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main73330-24020-14iGZ10,MZ1#198302-198512

BLUE,BLUE,TRIM8#

main73330-24020-15iGZ10,MZ1#198302-198512

BEIGE,BEIGE,TRIM4#

main73330-24030iMZ11198203-198302

LIMITED,TERRA COTTA

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010911003

main90109-11003

9010911005

main90109-11005

9020507002

main90205-07002

9020509001

main90205-09001

9020615002

main90206-15002

9020616001

main90206-16001

9038711009

main90387-11009

9038711017

main90387-11017

9056008028

main90560-08028

9165160616

main91651-60616

9165160818

main91651-60818

9165161020

main91651-61020

9354054012

main93540-54012

9451101100

main94511-01100

28 parts on this diagram · 1 diagram in section
