SEAT TRUCK

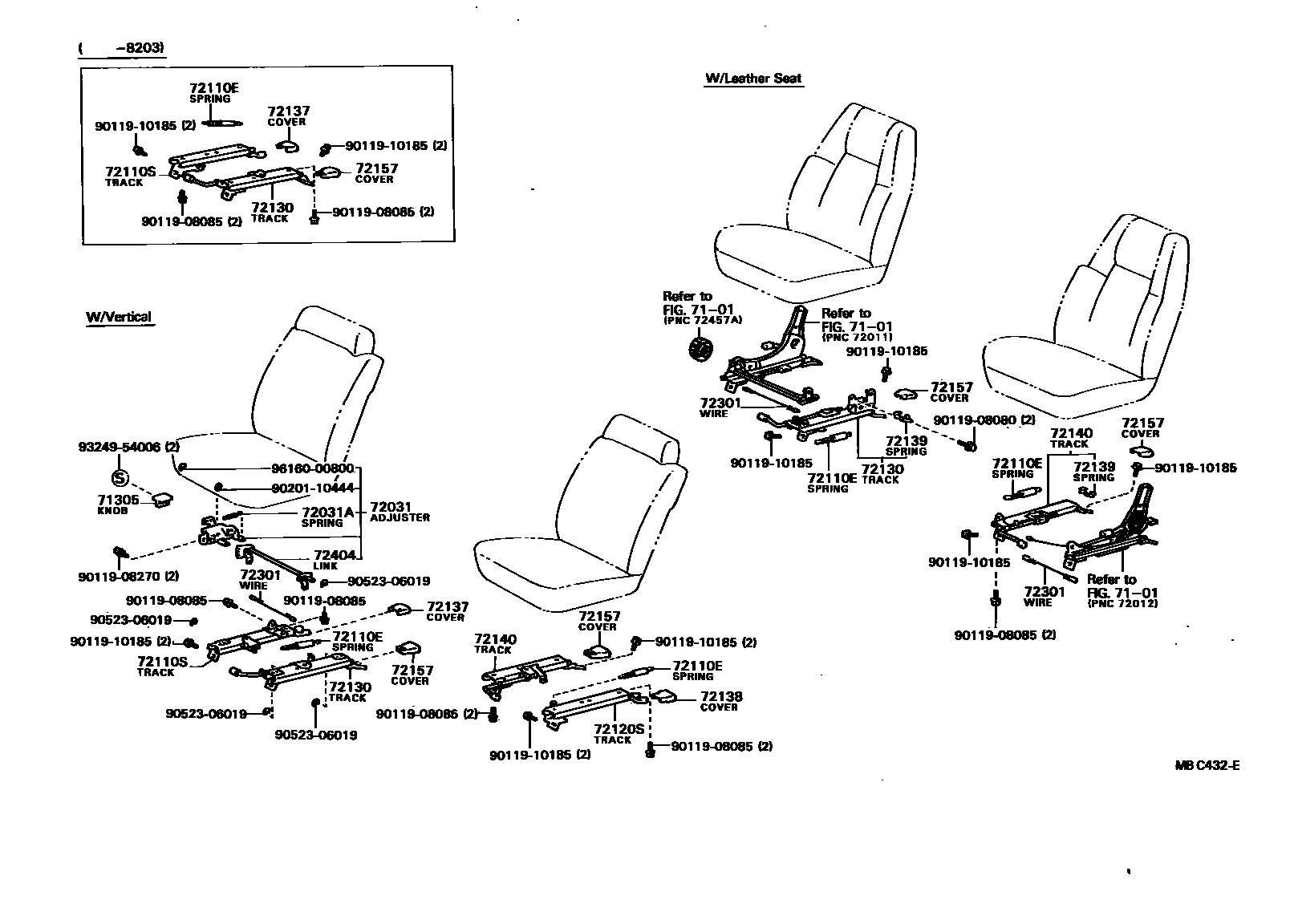

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

71305KNOB SUB-ASSY, FRONT SEAT ADJUSTING

main72457-14010-03iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

GRAY,GRAY,TRIM1#,2#

main72457-14010-12iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main72457-14010-24iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

LIGHT BLUE,BLUE,TRIM8#

main72457-14010-25iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main72457-14010-44iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

72031ADJUSTER ASSY, FRONT SEAT VERTICAL

main72310-24010iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

72031ASPRING, TENSION (FOR VERTICAL ADJUSTER)

main90506-18025iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

main90506-22001iGZ10,MZ1#198203-198302

72110ESPRING, TENSION, NO.1 (FOR SEAT TRACK)

main90507-18005×2iGZ10,MZ1#198102-198512

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-24010iGZ10..V1198102-198203

main72110-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

main72120-24010iGZ10,MZ1#198102-198302

main72120-24020iMZ11,12;GZ10..V2,VR,VX198302-198512

72130TRACK ASSY, RH SEAT, INNER

main72130-14250iMZ11198203-198302

W/LEATHER SEAT

main72130-14300iGZ10,MZ1#..GT,TBO198308-198310

W/SPORT SEAT

main72130-24010iGZ10..V1198102-198203

main72130-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

main72130-24030iGZ10,MZ1#..GT,TBO198310-198512

W/SPORT SEAT

72137COVER, SEAT TRACK, OUTER RH

main72137-24010-02iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main72137-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main72137-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main72137-24010-05iMZ11,12;GZ10..V2,VR,VX198302-198512

BEIGE,BEIGE,TRIM4#

main72137-24010-14iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

72138COVER, SEAT TRACK, OUTER LH

main72137-24010-02iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main72137-24010-03iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main72137-24010-04iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main72137-24010-05iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main72137-24010-14iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

72139SPRING, SEAT TRACK COVER

main72139-14010×2iMZ11198203-198302

W/LEATHER SEAT

72140TRACK ASSY, LH SEAT, INNER

main72140-14300iMZ11198203-198302

W/LEATHER SEAT

main72140-24010iGZ10,MZ1#198102-198302

main72140-24020iMZ11,12;GZ10..V2,VR,VX198302-198512

main72140-24030iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT

72157COVER, SEAT TRACK BRACKET, INNER

main72157-14010×2iGZ10,MZ1#..GT,GTL,TBO198302-198512

W/SPORTS SEAT

main72157-24010-02×2iMZ11,12;GZ10..V2,VR,VX198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main72157-24010-03×2iGZ10,MZ1#198102-198302

GRAY,GRAY,TRIM1#,2#

main72157-24010-04×2iGZ10,MZ1#198102-198302

LIGHT BLUE,BLUE,TRIM8#

main72157-24010-05×2iGZ10,MZ1#198102-198302

LIGHT BEIGE,BEIGE,TRIM3#

main72157-24010-14×2iMZ11,12;GZ10..V2,VR,VX198302-198512

BLUE,BLUE,TRIM8#

72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING

main72301-14050×2iMZ11198203-198302

W/LEATHER SEAT

main72301-24010×2iMZ11,12;GZ10..V2,VR,VX198302-198512

72404LINK SUB-ASSY, VERTICAL SEAT

main72404-24010iMZ11,12;GZ10..V2,VR,VX198302-198512

9011908080

main90119-08080

9011908085

main90119-08085

9011908270

main90119-08270

9011910185

main90119-10185

9020110444

main90201-10444

9052306019

main90523-06019

9324954006

main93249-54006

9616000800

main96160-00800

23 parts on this diagram · 1 diagram in section
