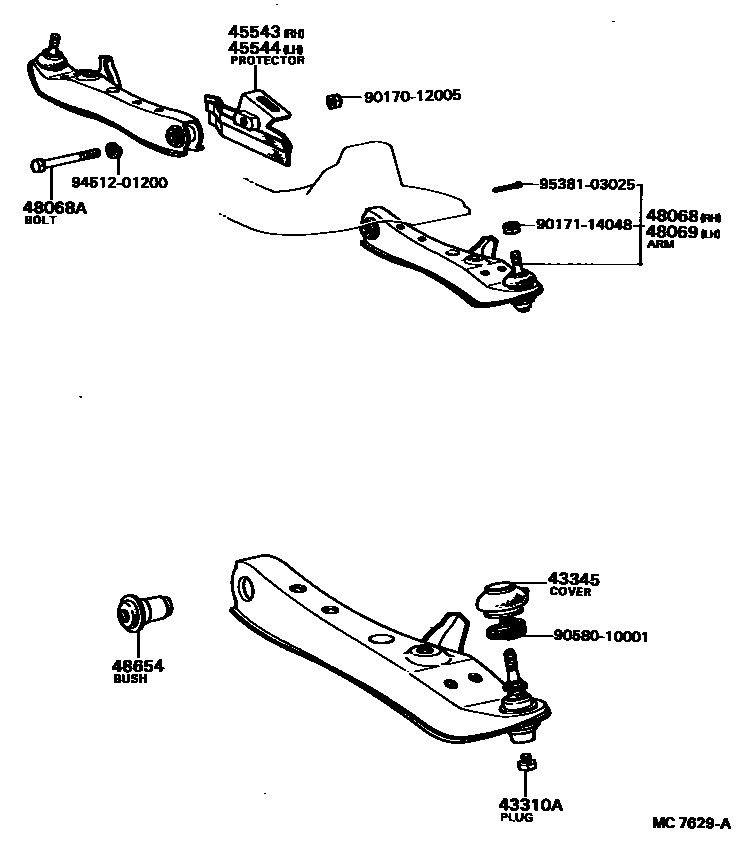

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014×2iGZ10,MZ1#198102-198512

43345COVER, LOWER BALL JOINT DUST

main43345-22070×2iGZ10,MZ1#198102-198512

45543PROTECTOR, STEERING RACK BOOT, RH

main45543-24010iGZ10,MZ1#198102-198512

45544PROTECTOR, STEERING RACK BOOT, LH

main45544-24010iGZ10,MZ1#198102-198512

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29065iGZ10,MZ1#198102-198512

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90101-12039×2iGZ10,MZ1#198102-198512

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29065iGZ10,MZ1#198102-198512

48654BUSH, LOWER ARM

main48654-12010×2iGZ10,MZ1#198102-198512

9017012005

main90170-12005

9017114048

main90171-14048

9058010001

main90580-10001

9451201200

main94512-01200

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
