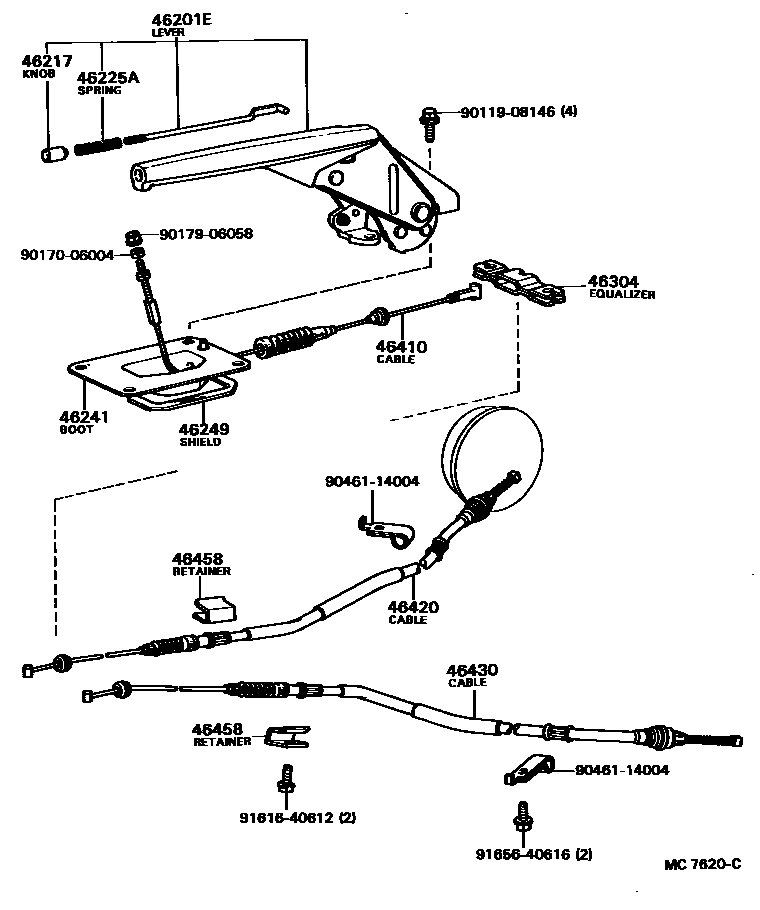

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-24010-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main46201-24010-02iGZ10,MZ1#198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main46201-24010-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main46201-24010-04iGZ10,MZ1#198102-198512

BLUE,BLUE,TRIM8#

main46201-24010-05iGZ10,MZ1#..GT,GTL,TBO,VR,VX198302-198512

BEIGE,BEIGE,TRIM4#

main46201-24010-12iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main46217-10020-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main46217-10020-12iGZ10,MZ1#198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main46217-10020-14iGZ10,MZ1#198102-198512

BLUE,BLUE,TRIM8#

main46217-10020-15iGZ10,MZ1#..GT,GTL,TBO,VR,VX198302-198512

BEIGE,BEIGE,TRIM4#

main46217-10020-22iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iGZ10,MZ1#198102-198512

46241BOOT, PARKING BRAKE LEVER

main46241-24010iGZ10,MZ1#198102-198512

46249SHIELD, PARKING BRAKE HOLE

main46249-24010iGZ10,MZ1#198102-198512

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-12010iGZ10,MZ1#198102-198512

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-24010iGZ10,MZ1#198102-198512

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-24010iGZ10,MZ1#198102-198512

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-24010iGZ10,MZ1#198102-198512

46458RETAINER, CABLE

main46458-20020×2iGZ10,MZ1#198102-198512

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046114004

main90461-14004

9161640612

main91616-40612

9165640616

main91656-40616

16 parts on this diagram · 2 diagrams in section
