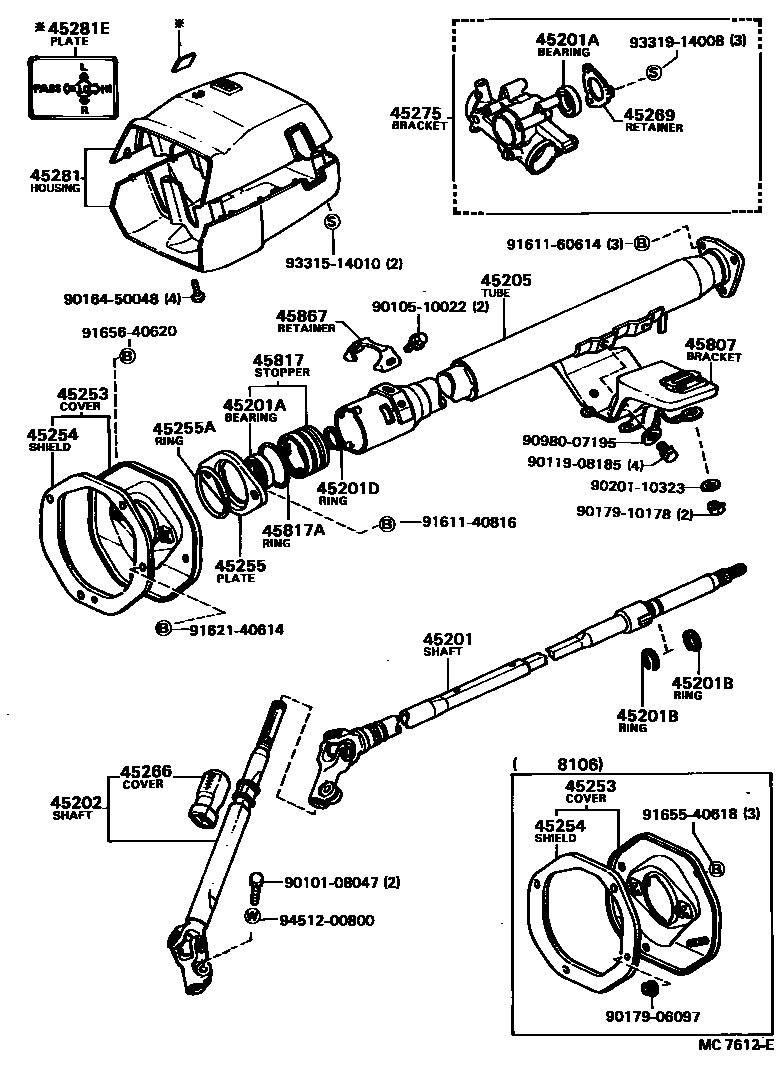

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45210-22050iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

main45210-24010iGZ10..V1198102-198203

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

UPR

main90363-18038iGZ10..V1198102-198203

UPR

main90363-28001iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198102-198512

CTR

main90363-30007iGZ10,MZ1#198102-198501

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iGZ10..V1198102-198203

main90520-17269iGZ10..V1198102-198203

45201DRING(FOR STEERING MAIN SHAFT)

main96152-00300iGZ10,MZ1#198102-198512

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-24020iMZ10198107-198108

main45260-14010iGZ10..V1198106-198203

main45260-14020iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198108-198512

main45260-24010iGZ10..V1198102-198106

main45260-24020iGZ10,MZ11..GT,V2,VR,VX198102-198106

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-24010iGZ10..V1198102-198203

main45870-24020iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

main45870-24030iMZ11,12198302-198512

45253COVER, STEERING COLUMN HOLE

main45025-24010iGZ10,MZ11198102-198106

main45025-24011iGZ10,MZ1#198106-198512

45254SHIELD, STEERING COLUMN HOLE

main45254-24010iGZ10,MZ11198102-198106

main45254-24011iGZ10,MZ1#198106-198512

45255PLATE, STEERING COLUMN HOLE COVER

main45255-12030iGZ10,MZ1#198102-198512

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-59001iMZ12198502-198512

ID=59

main90301-60122iGZ10,MZ1#198102-198502

45266COVER, STEERING INTERMEDIATE SHAFT DUST

main45266-12020iGZ10,MZ1#198102-198512

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iGZ10..V1198102-198203

45275BRACKET, STEERING COLUMN, UPPER

main45280-24010iGZ10,MZ11..GT,V2,VR,VX198102-198106

main45280-24011iGZ10,MZ1#..GT,TBO,V2,VR,VX198106-198209

main45280-24012iGZ10,MZ10198302-198512

main45280-24020iMZ11198102-198106

EXTRA

main45280-24021iMZ11198106-198209

LIMITED,EXTRA

main45280-24022iMZ11,12198209-198512

main45280-24030iGZ10..V1198102-198203

45281HOUSING, STEERING COLUMN

main45286-24900-01iGZ10..V1198102-198203

BLACK,BLACK,TRIM2#

main45286-24900-02iGZ10..V1198102-198203

TERRACOTTA,RED/MAROON,TRIM3#

main45286-24900-04iGZ10..V1198102-198203

BLUE,BLUE,TRIM8#

main45286-24901-01iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198203

BLACK,BLACK,TRIM2#

main45286-24901-02iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main45286-24901-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main45286-24901-04iGZ10,MZ1#..GT,TBO,V2,VR,VX198102-198302

BLUE,BLUE,TRIM8#

main45286-24902-04iGZ10,MZ1#198302-198512

BLUE,BLUE,TRIM8#

main45286-24902-05iGZ10,MZ1#..GT,GTL,TBO,VX198302-198512

BEIGE,BEIGE,TRIM4#

main45286-24902-12iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

45281EPLATE, SAFETY CAUTION

main45283-22010iGZ10,MZ1#198102-198512

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-14050iGZ10,MZ1#..GT,GTL,TBO,V2,VR,VX198106-198512

W/TILT STEERING

main45082-22030iGZ10,MZ11..GT,V2,VR,VX198102-198106

W/TILT STEERING

main45807-24010iGZ10..V1198102-198106

main45807-24011iGZ10..V1198106-198203

45817STOPPER, STEERING SHAFT THRUST

main45808-12020iGZ10,MZ1#198102-198501

main45808-12030iGZ10,MZ1#198501-198512

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main96711-24053iGZ10,MZ1#198102-198512

45867RETAINER, STEERING MAIN SHAFT STOPPER

main45867-12010iGZ10,MZ1#198102-198512

9010108047

main90101-08047

9010510022

main90105-10022

9011908185

main90119-08185

9016450048

main90164-50048

9017906097

main90179-06097

9017910178

main90179-10178

9020110323

main90201-10323

9098007195

main90980-07195

9161140816

main91611-40816

9161160614

main91611-60614

9162140614

main91621-40614

9165540618

main91655-40618

9165640620

main91656-40620

9331514010

main93315-14010

9331914008

main93319-14008

9451200800

main94512-00800

35 parts on this diagram · 6 diagrams in section
